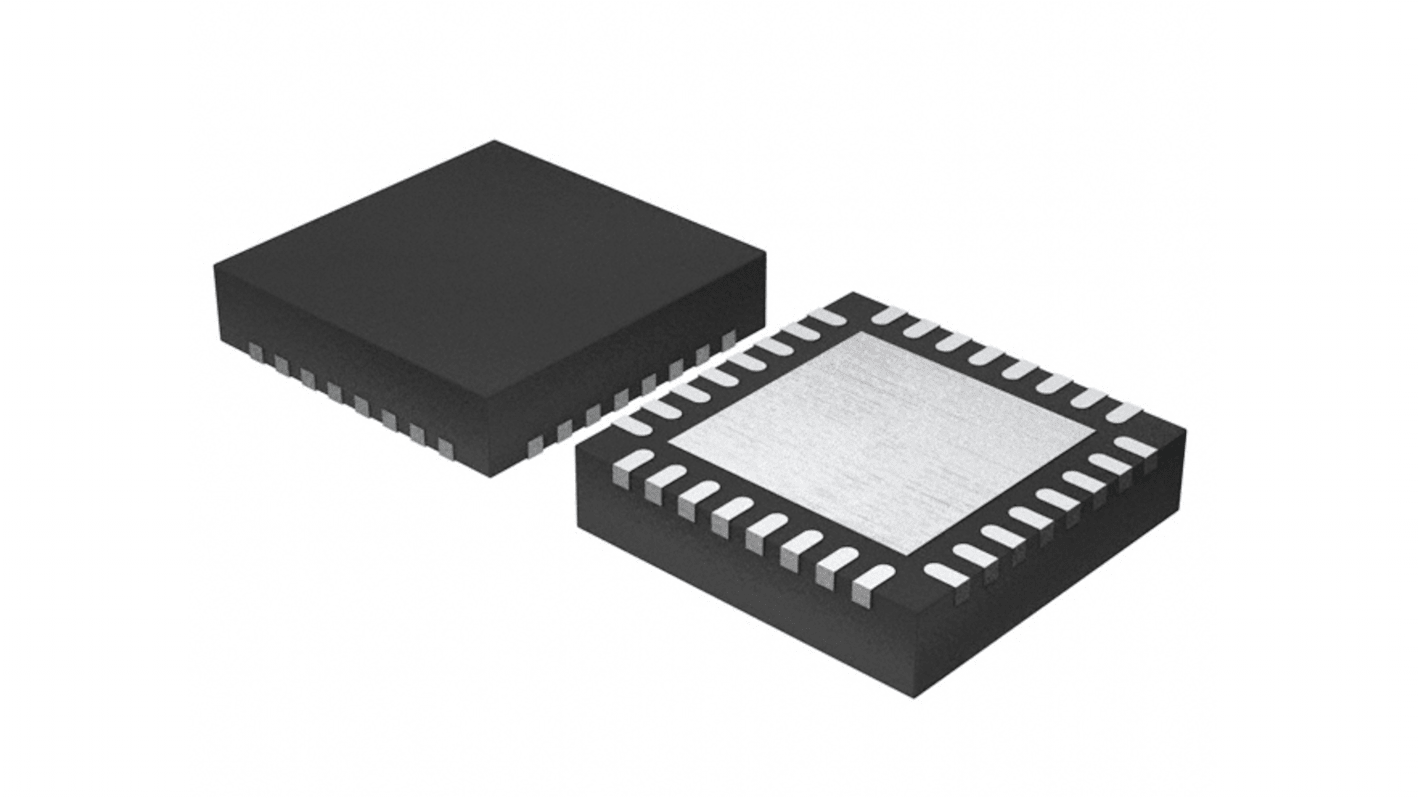

ROHM BM62300MUV-E2, BLDC Motor Driver IC
- RS Stock No.:
- 246-3847
- Mfr. Part No.:
- BM62300MUV-E2
- Brand:
- ROHM
50 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$5.94
(exc. GST)
$6.53
(inc. GST)
| Units | Per unit |
| 1 - 49 | $5.94 |
| 50 - 99 | $5.79 |
| 100 - 249 | $5.65 |
| 250 - 999 | $5.51 |
| 1000 + | $5.38 |
- RS Stock No.:
- 246-3847
- Mfr. Part No.:
- BM62300MUV-E2
- Brand:
- ROHM
Technical data sheets
Legislation and Compliance
Product Details
The ROHM BM series is pre-driver IC which is used for three-phase brushless motor driver which operated at input voltage range of 8 V to 28 V and available in VQFN032V5050 package. This pre driver IC used in fan motor, motor for pump, ceiling fan and other general consumer equipment applications.
Supports external power transistor (Nch+Nch)
Built-in boost voltage circuit
3 Hall sine wave 180 degrees electric drive
Automatic lead angle settings
Speed control on PWM input
Soft start function
Number of pole selection
Current limit function
Built-in p
Built-in boost voltage circuit
3 Hall sine wave 180 degrees electric drive
Automatic lead angle settings
Speed control on PWM input
Soft start function
Number of pole selection
Current limit function
Built-in p
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Motor Type | BLDC |
| Output Configuration | PWM |
| Configuration | 3 Phase |
| Maximum Output Current | 10mA |
| Maximum Supply Voltage | 33 V |
