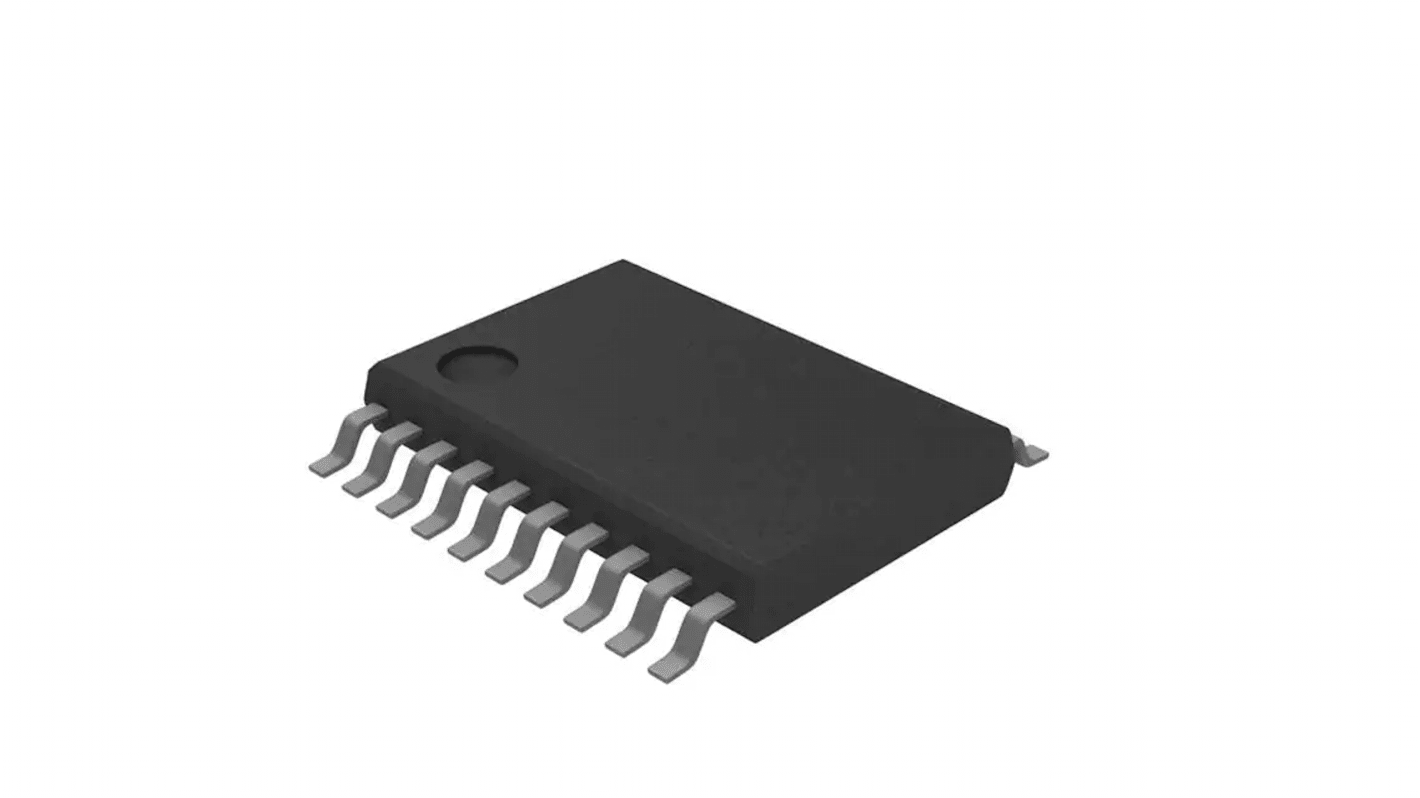

ams OSRAM Surface Mount Position Sensor, TSSOP, 20-Pin
- RS Stock No.:
- 232-9683
- Mfr. Part No.:
- AS5304B
- Brand:
- ams OSRAM
On back order for despatch 20/08/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 500)
$10.466
(exc. GST)
$11.513
(inc. GST)
| Units | Per unit | Per Reel* |
| 500 - 2000 | $10.466 | $5,233.00 |
| 2500 + | $9.42 | $4,710.00 |
| *price indicative | ||
- RS Stock No.:
- 232-9683
- Mfr. Part No.:
- AS5304B
- Brand:
- ams OSRAM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- AT
Product Details
The ams AS5304 series is an incremental position sensor for linear and rotary off-axis applications based on contactless magnetic sensor technology. To measure position and motion a multi-pole magnet strip or ring has to be used. There are 160 pulses per 4.0 mm pole pair length on the standardized quadrature output interface with an index pulse with a maximum speed of 20m/s.
Contactless motion and position sensing
High speed measurement
Immune to external magnetic stray fields
Highest reliability and durability in harsh environments
Control of high speed movements
Lower material cost
High speed measurement
Immune to external magnetic stray fields
Highest reliability and durability in harsh environments
Control of high speed movements
Lower material cost
