- RS Stock No.:
- 232-9675
- Mfr. Part No.:
- AS5116-HSOM
- Brand:
- ams OSRAM
Stock check temporarily unavailable - call for stock availability
Added
Price (ex. GST) Each (On a Reel of 500)
$11.058
(exc. GST)
$12.164
(inc. GST)
Units | Per unit | Per Reel* |
500 - 2000 | $11.058 | $5,529.00 |
2500 + | $9.952 | $4,976.00 |
*price indicative |
- RS Stock No.:
- 232-9675
- Mfr. Part No.:
- AS5116-HSOM
- Brand:
- ams OSRAM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- AT
Product Details

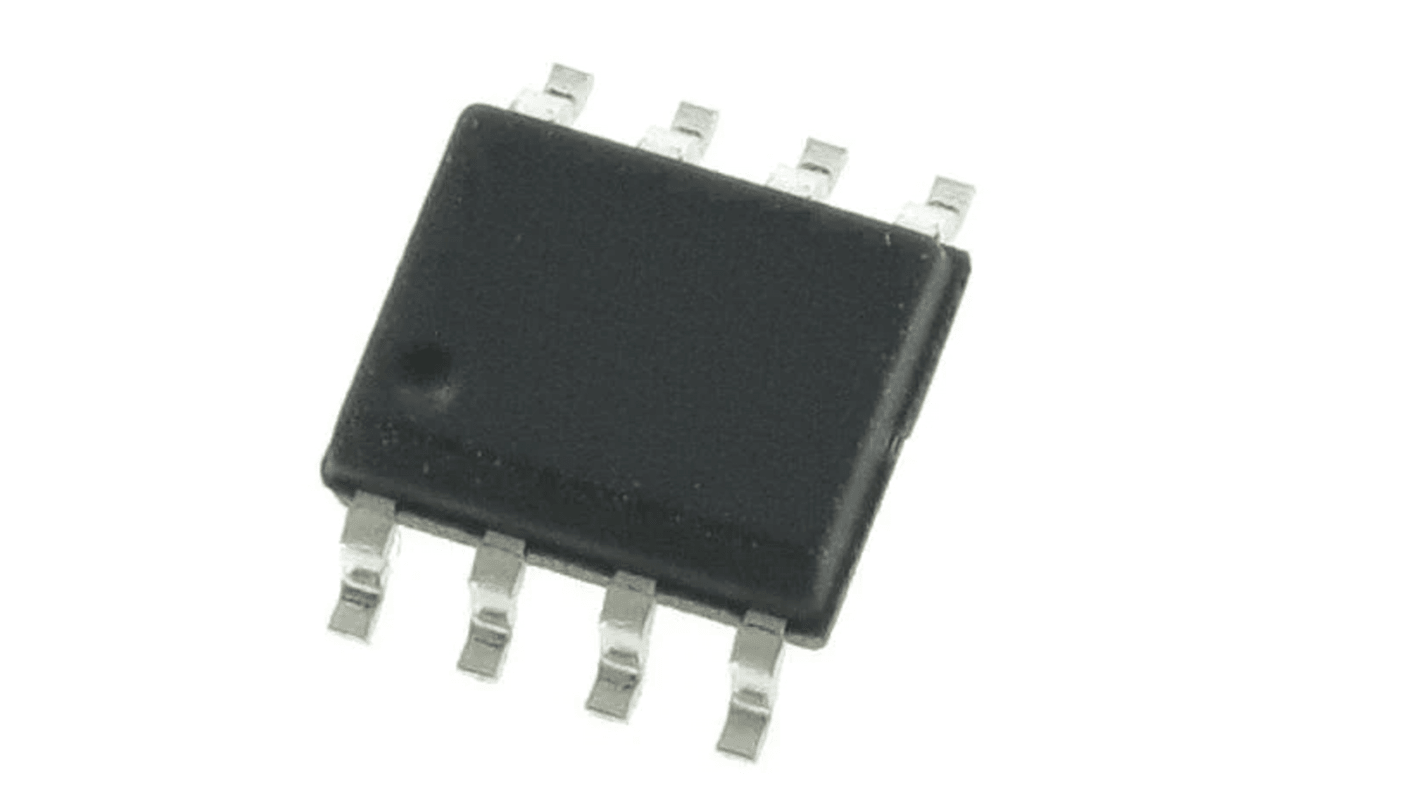

The ams AS5116 series is a contactless magnetic position sensor for accurate angular measurement over a full mechanical turn of 360°. Based on the Hall sensor technology, this device has a robust architecture that measures the orthogonal component of the flux density, over a full-turn rotation. To measure the angle, only a simple two-pole magnet rotating over the centre of the package is required. The magnet can be placed above or below the device.
Contactless angle measurement
Low output noise
Low inherent INL
Magnetic stray field immunity overachieves ISO 11452-8
Developed according to ISO26262
Fully differential buffered sine and cosine output signals
AEC-Q100, grade 0
Low output noise
Low inherent INL
Magnetic stray field immunity overachieves ISO 11452-8
Developed according to ISO26262
Fully differential buffered sine and cosine output signals
AEC-Q100, grade 0
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Mounting Type | Surface Mount |
Interface Type | UART |
Magnetic Type | High Precision |
Package Type | SOIC |
Pin Count | 8 |
