STMicroelectronics STripFET N-Channel MOSFET, 4 A, 60 V, 3-Pin SOT-223 STN3NF06L

RS Stock No.:: 920-8786
Mfr. Part No.:: STN3NF06L
Brand:: STMicroelectronics

STMicroelectronics STripFET N-Channel MOSFET, 4 A, 60 V, 3-Pin SOT-223 STN3NF06L

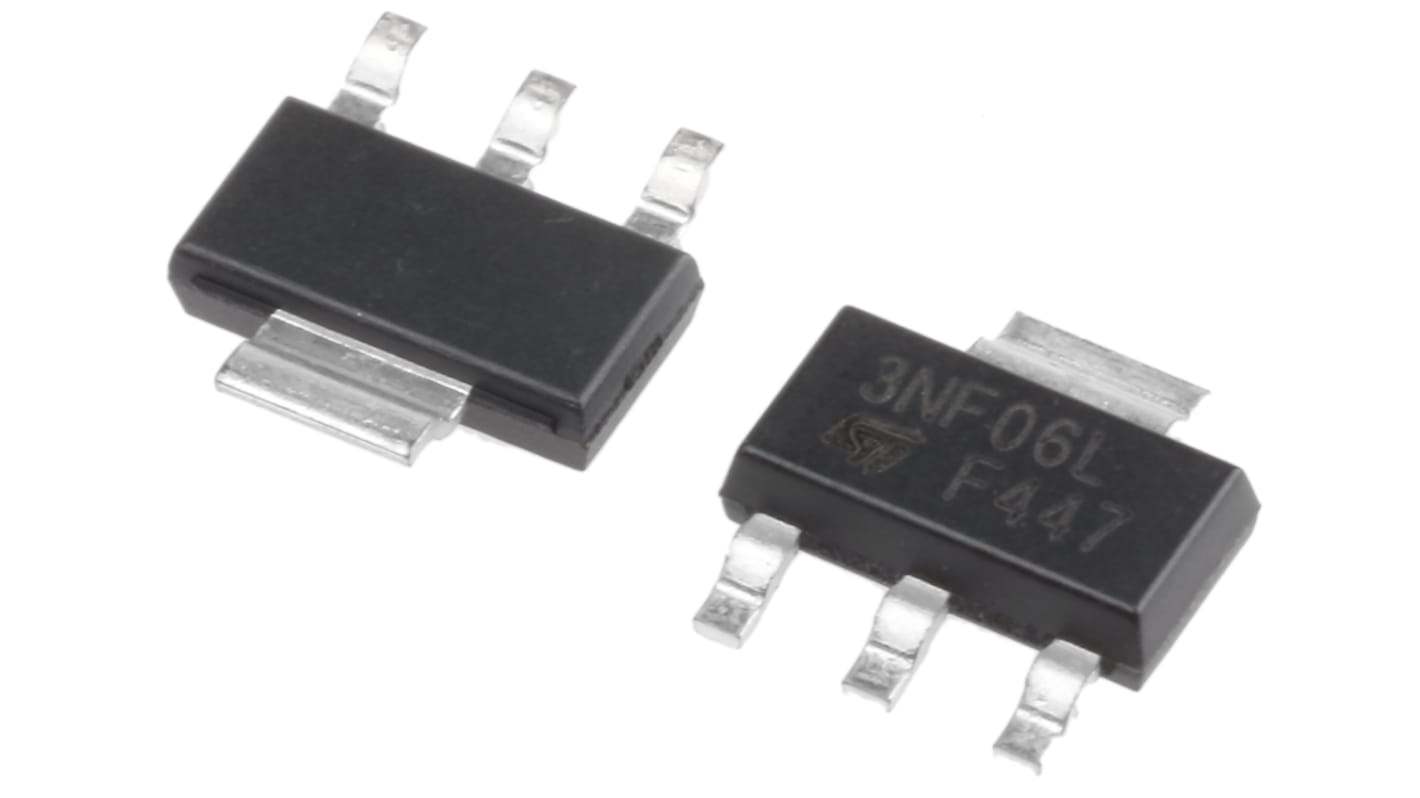

This image is representative of the product range

Bulk discount available

Subtotal (1 reel of 4000 units)**

$2,572.00

(exc. GST)

$2,828.00

(inc. GST)

8000 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit	Per Reel**
4000 - 4000	$0.643	$2,572.00
8000 - 12000	$0.627	$2,508.00
16000 +	$0.617	$2,468.00

**price indicative

RS Stock No.:: 920-8786
Mfr. Part No.:: STN3NF06L
Brand:: STMicroelectronics

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Channel Type	N
Maximum Continuous Drain Current	4 A
Maximum Drain Source Voltage	60 V
Package Type	SOT-223
Series	STripFET
Mounting Type	Surface Mount
Pin Count	3
Maximum Drain Source Resistance	100 mΩ
Channel Mode	Enhancement
Maximum Gate Threshold Voltage	2.8V
Minimum Gate Threshold Voltage	1V
Maximum Power Dissipation	3.3 W
Transistor Configuration	Single
Maximum Gate Source Voltage	-16 V, +16 V
Transistor Material	Si
Width	3.5mm
Maximum Operating Temperature	+150 °C
Typical Gate Charge @ Vgs	7 nC @ 5 V
Length	6.5mm
Number of Elements per Chip	1
Minimum Operating Temperature	-55 °C
Height	1.8mm

STMicroelectronics STripFET N-Channel MOSFET, 4 A, 60 V, 3-Pin SOT-223 STN3NF06L

FREE delivery for orders over $60.00 ex GST

N-Channel STripFET™, STMicroelectronics

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
