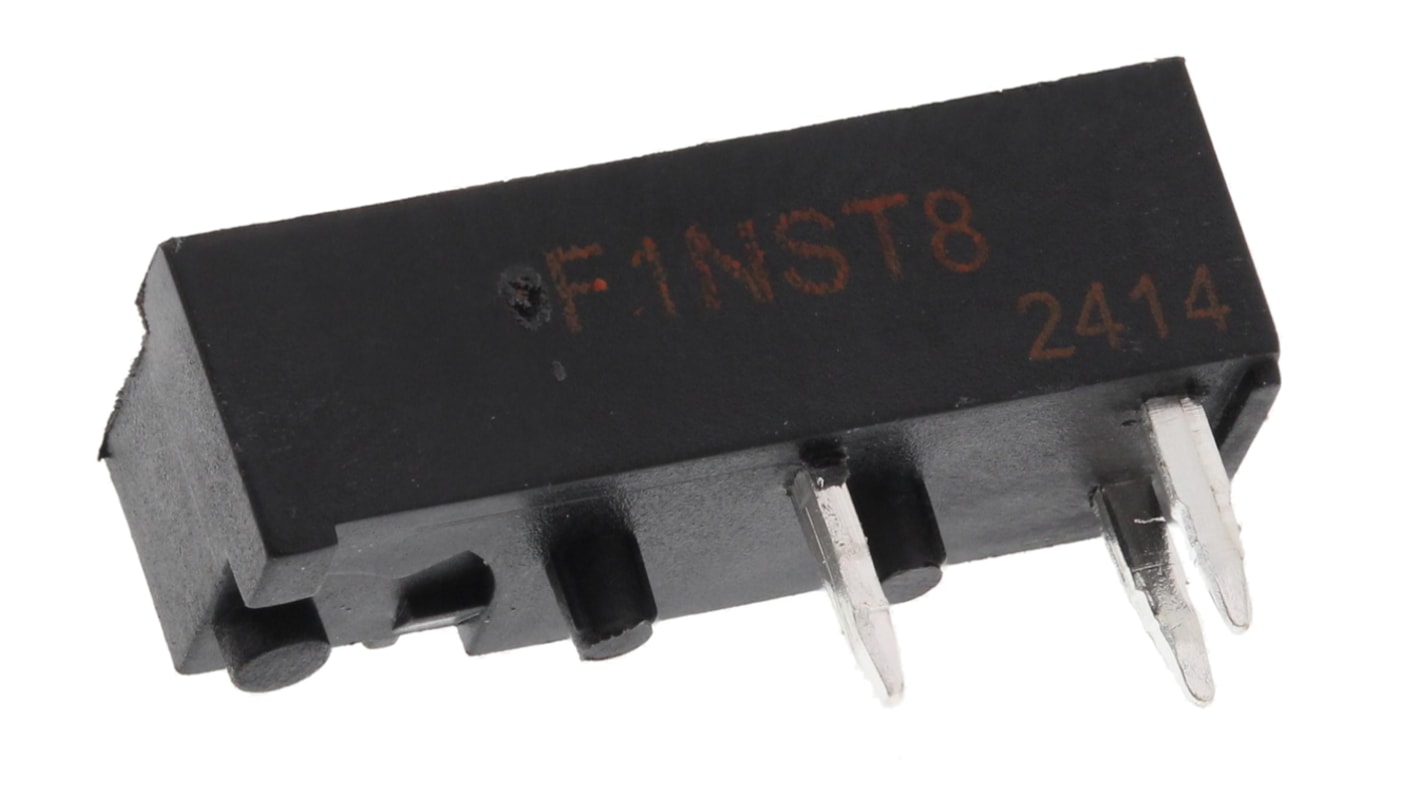

Saia-Burgess Plunger Micro Switch, Through Hole Terminal, 1 A @ 250 V ac, SPDT, IP54

RS Stock No.:: 301-2220
Mfr. Part No.:: F1NST8
Brand:: Saia-Burgess

Saia-Burgess Plunger Micro Switch, Through Hole Terminal, 1 A @ 250 V ac, SPDT, IP54

This product is currently unavailable to backorder.

Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.

Added

Price (ex. GST) Each

$6.27

(exc. GST)

$6.90

(inc. GST)

Units	Per unit
1 +	$6.27

Alternative

This product is not currently available. Here is our alternative recommendation.

Saia-Burgess Lever Micro Switch, Through Hole Terminal, 1 A @ 250 V ac, SPDT, IP54

RS Stock No.: 301-2236

Price (ex. GST) Each

$6.95

(exc. GST)

$7.65

(inc. GST)

RS Stock No.:: 301-2220
Mfr. Part No.:: F1NST8
Brand:: Saia-Burgess

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

Saia-Burgess Microswitch

The Saia-Burgess Microswitch has a plunger actuator and an electrical rating of 1A at 250VAC. It has SP contact configuration. This Microswitch is designed to side mount to a printed circuit board. This robust sub-miniature switch has a long mechanical life.

Features and Benefits

Single-pole changeover
PCB connection
Flux resistant terminals
Mechanical life is 10^7 operations
Operating force is 2N
small size
Low current

Certifications

IP54 rated
UL approved
CSA certified

Approvals

UL, CSA

Specifications

Attribute	Value
Actuator Type	Plunger
Terminal Type	Through Hole
Contact Current Rating	1 A @ 250 V ac
Contact Configuration	SP-NO/NC
IP Rating	IP54
Operating Force	2 N
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Contact Material	Fine Silver
Case Material	Polyamide
Mechanical Life	10^7Operations
Release Force	0.2N
Operating Temperature Range	-40 → +85°C
