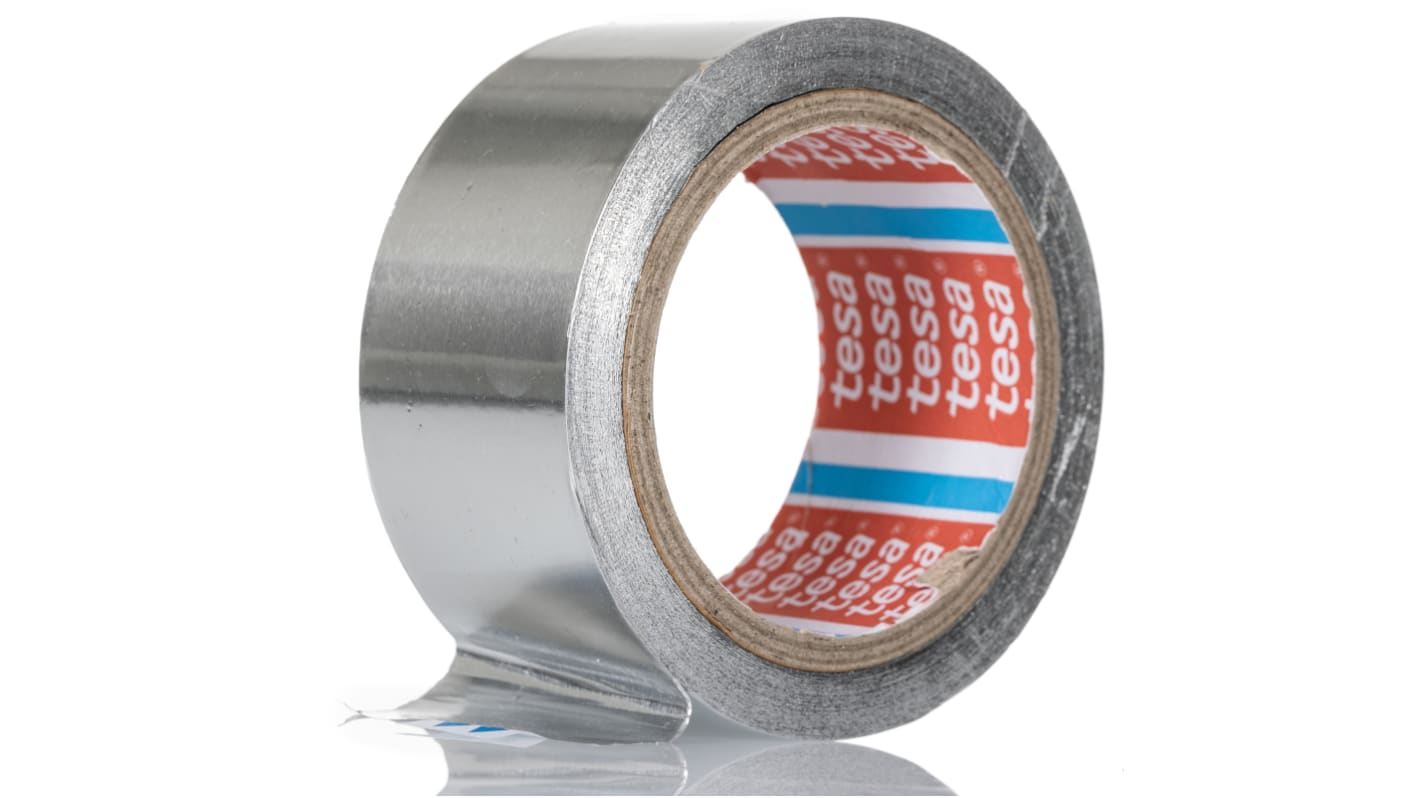

Tesa 60630 Conductive Aluminium Tape, 50mm x 50m

RS Stock No.:: 185-9047
Mfr. Part No.:: 60630
Brand:: Tesa

Tesa 60630 Conductive Aluminium Tape, 50mm x 50m

3 In AU stock for next working day delivery

331 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$23.35

(exc. GST)

$25.69

(inc. GST)

Units	Per unit
1 +	$23.35

RS Stock No.:: 185-9047
Mfr. Part No.:: 60630
Brand:: Tesa

Technical data sheets

Datasheet 60630

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Tesa 60630 Conductive Aluminium Tape

Tesa 60630 is a conformable aluminium tape based on a 30 μm (1.2 mil) aluminium foil, a transparent acrylic adhesive.

Features and Benefits

Conformable to curved surfaces

Easy to unwind

Suitable for permanent applications

Barrier against moisture, gases and vapors

Electrically and thermally conductive

Aging resistant

Heat and light reflective

Flame retardant

Applications:

Mounting of refrigerator coils in appliance industry
▪ Joining and sealing of thermal insulation and ducts
▪ To make substrates electrically and thermally conductive
▪ To reflect heat radiation

Adhesion to:

Glass (initial) 7.0 N/cm
▪ PE (initial) 4.0 N/cm
▪ PVC (initial) 5.5 N/cm

Properties:

▪ Abrasion resistance
▪ Water resistance

Specifications

Attribute	Value
Total Thickness	0.065mm
Tape Type	Aluminium Tape
Foil Thickness	0.03mm
Width	50mm
Length	50m
Conductivity	Conductive
Adhesion Strength	8 N/cm
Adhesive Material	Acrylic
Tensile Strength	25N/cm
Maximum Temperature Resistance	+160°C
Minimum Temperature Resistance	-40°C
Model Number	60630
