Schneider Electric - Easy Series, EasyPact CVS400, CVS630F Circuit Breaker 3-Pole 630A, Breaking Capacity 36 kA
- RS Stock No.:
- 260-9793
- Mfr. Part No.:
- LV563305
- Brand:
- Schneider Electric - Easy Series
Subtotal (1 unit)*
$3,275.40
(exc. GST)
$3,602.94
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $3,275.40 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 260-9793
- Mfr. Part No.:
- LV563305
- Brand:
- Schneider Electric - Easy Series
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric - Easy Series | |
| Range | EasyPact CVS400 | |
| Product Type | Circuit Breaker | |
| Series | CVS630F | |
| Number of Poles | 3 | |
| Current Rating | 630A | |
| Breaking Capacity | 36kA | |
| Rated AC Voltage | 440V ac | |
| Terminal Type | Screw | |
| Standards/Approvals | No | |
| Width | 255mm | |
| Depth | 110mm | |
| Height | 255mm | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| Tripping Characteristics | Type D | |
| Tripping Mechanism | Thermal Magnetic | |
| Break Time | Instantaneous | |
| Reset Actuator Type | Toggle Switch | |
| Select all | ||
|---|---|---|
Brand Schneider Electric - Easy Series | ||
Range EasyPact CVS400 | ||
Product Type Circuit Breaker | ||
Series CVS630F | ||
Number of Poles 3 | ||
Current Rating 630A | ||
Breaking Capacity 36kA | ||
Rated AC Voltage 440V ac | ||
Terminal Type Screw | ||
Standards/Approvals No | ||
Width 255mm | ||
Depth 110mm | ||
Height 255mm | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
Tripping Characteristics Type D | ||
Tripping Mechanism Thermal Magnetic | ||
Break Time Instantaneous | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- CN

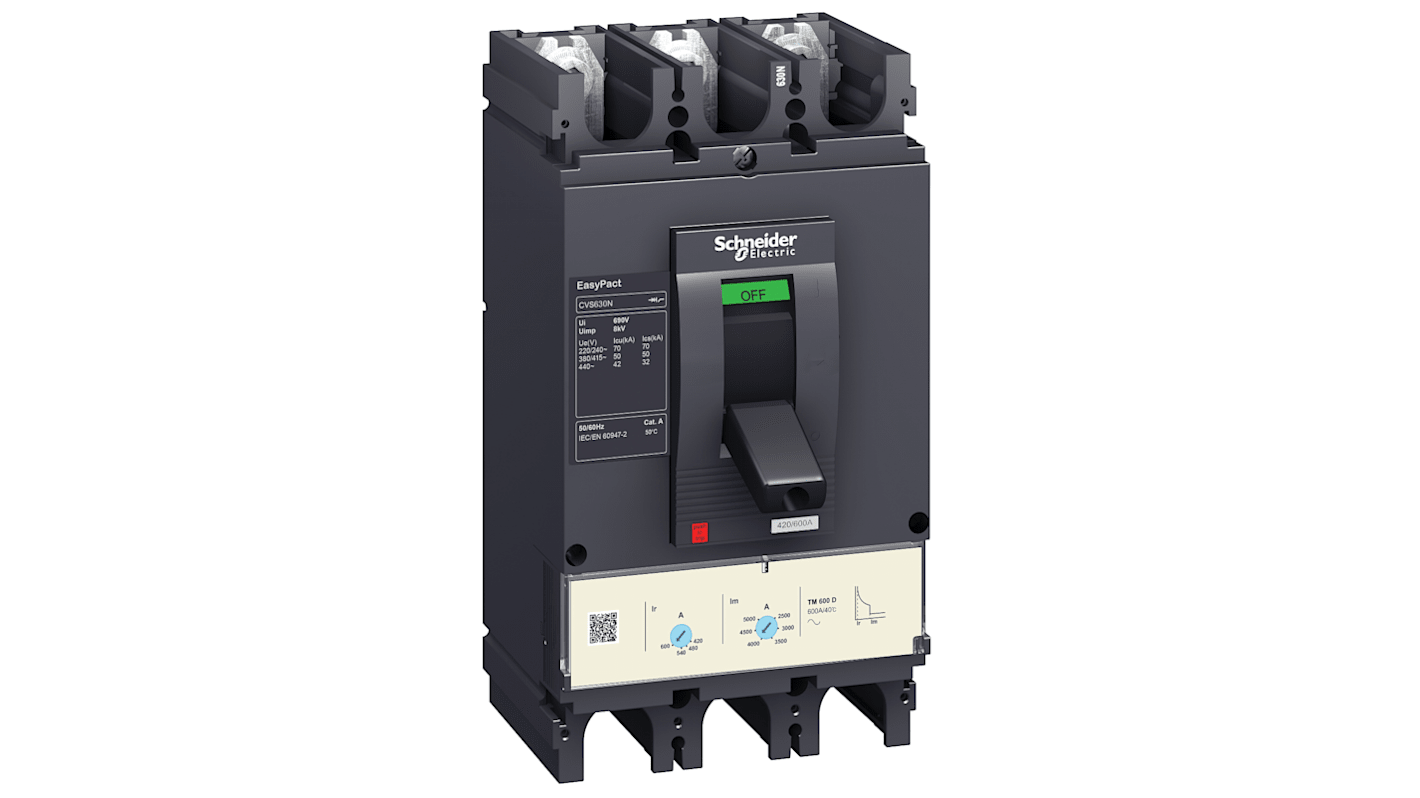

The Schneider Electric EasyPact CVS630F is a 3 poles 3d fixed circuit breaker with a high level of performance and cost saving functionality. It is an optimal choice for small and medium sized buildings protection applications. Thermal magnetic trip unit (TMD) provides an adjustable thermal overload protection and a fixed magnetic protection.
Outstanding durability
Modular design helps to increase the shop floor efficiency
