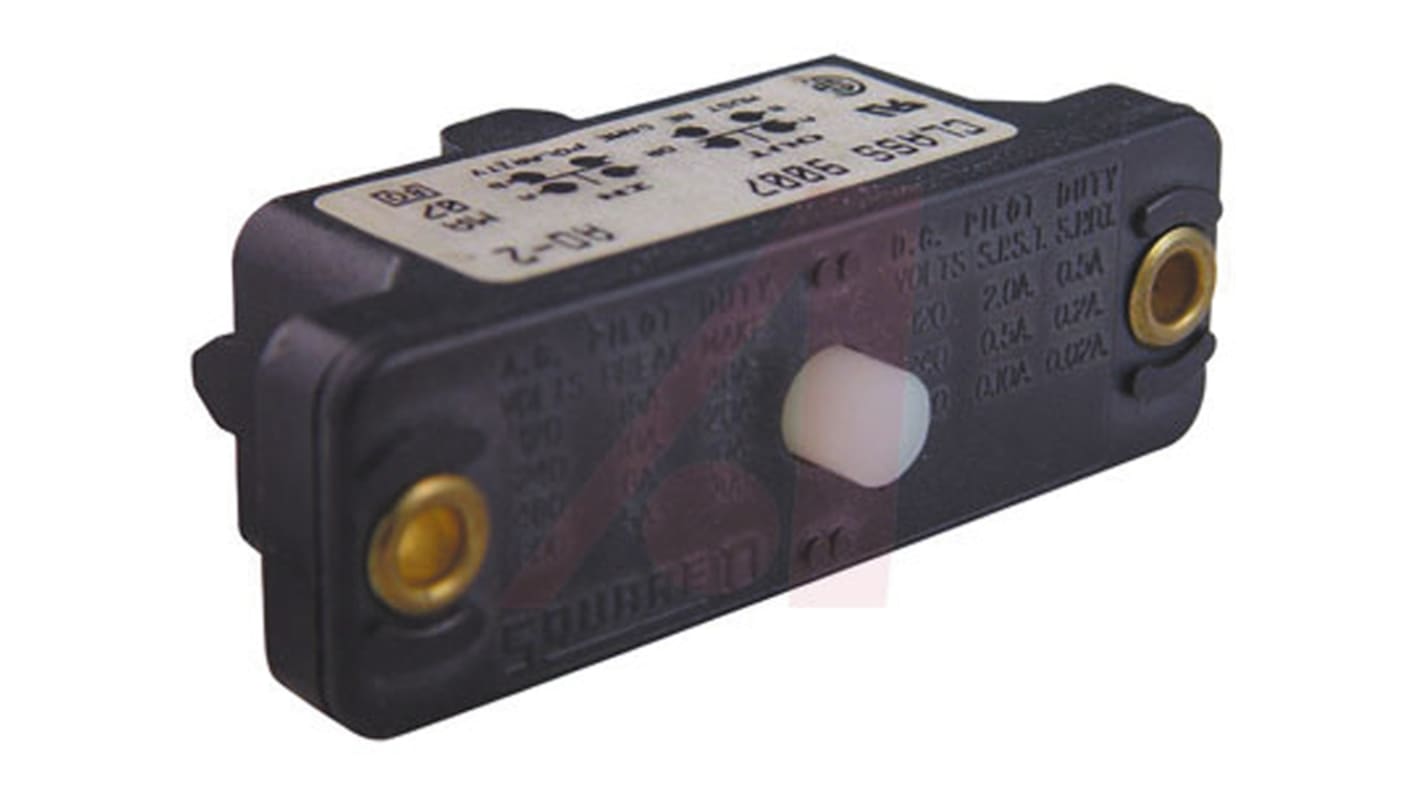

Telemecanique Sensors 9007 Series Plunger Limit Switch, 2 NO/2 NC, IP20, Plastic Housing, 600V ac, 10A
- RS Stock No.:
- 814-8567
- Mfr. Part No.:
- 9007CO3
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
$247.35
(exc. GST)
$272.08
(inc. GST)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | $247.35 |
*price indicative
- RS Stock No.:
- 814-8567
- Mfr. Part No.:
- 9007CO3
- Brand:
- Telemecanique Sensors
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Product Type | Limit Switch | |
| Actuator Type | Plunger | |
| Contact Configuration | 2 NO/2 NC | |
| IP Rating | IP20 | |
| Housing Material | Plastic | |
| Contact Type | Snap Action | |
| Terminal Type | Screw | |
| Switching Current | 10A | |
| Series | 9007 | |
| Switching AC Voltage | 600V ac | |
| Minimum Operating Temperature | -28.89°C | |
| Switching DC Voltage | 250V dc | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | CSA, UL | |
| Width | 29mm | |
| Length | 63.5mm | |
| Depth | 21mm | |
| Hazardous Area Certification | NO | |
| Mounting Orientation | Vertical | |
| Operating Force | 0.75lb | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Product Type Limit Switch | ||
Actuator Type Plunger | ||
Contact Configuration 2 NO/2 NC | ||
IP Rating IP20 | ||
Housing Material Plastic | ||
Contact Type Snap Action | ||
Terminal Type Screw | ||
Switching Current 10A | ||
Series 9007 | ||
Switching AC Voltage 600V ac | ||
Minimum Operating Temperature -28.89°C | ||
Switching DC Voltage 250V dc | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals CSA, UL | ||
Width 29mm | ||
Length 63.5mm | ||
Depth 21mm | ||
Hazardous Area Certification NO | ||
Mounting Orientation Vertical | ||
Operating Force 0.75lb | ||
RoHS Status: Exempt
Square D, 9007C Series Compact
The 90007C range of limit switches offers a wide selection of options to choose from, including actuator type, contact configuration and body type. They all come enclosed in a heavy duty metal body made from zinc. Contacts are snap action with a one or two programmable direction lateral approach. Mechanical durability of 10,000,000 cycles.
Standards
NEMA 13 conforming to Nema type 250
NEMA 12 conforming to Nema type 250
NEMA 6P conforming to Nema type 250
NEMA 6 conforming to Nema type 250
NEMA 4 conforming to Nema type 250
NEMA 2 conforming to Nema type 250
NEMA 1 conforming to Nema type 250
IP67 conforming to IEC 60529
IP20 conforming to IEC 60529
NEMA 12 conforming to Nema type 250
NEMA 6P conforming to Nema type 250
NEMA 6 conforming to Nema type 250
NEMA 4 conforming to Nema type 250
NEMA 2 conforming to Nema type 250
NEMA 1 conforming to Nema type 250
IP67 conforming to IEC 60529
IP20 conforming to IEC 60529
