Telemecanique Sensors 9007 Series Lever Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 240V ac Max, 10A Max

RS Stock No.:: 360-8988
Mfr. Part No.:: 9007MS04S0200
Brand:: Telemecanique Sensors

Telemecanique Sensors 9007 Series Lever Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 240V ac Max, 10A Max

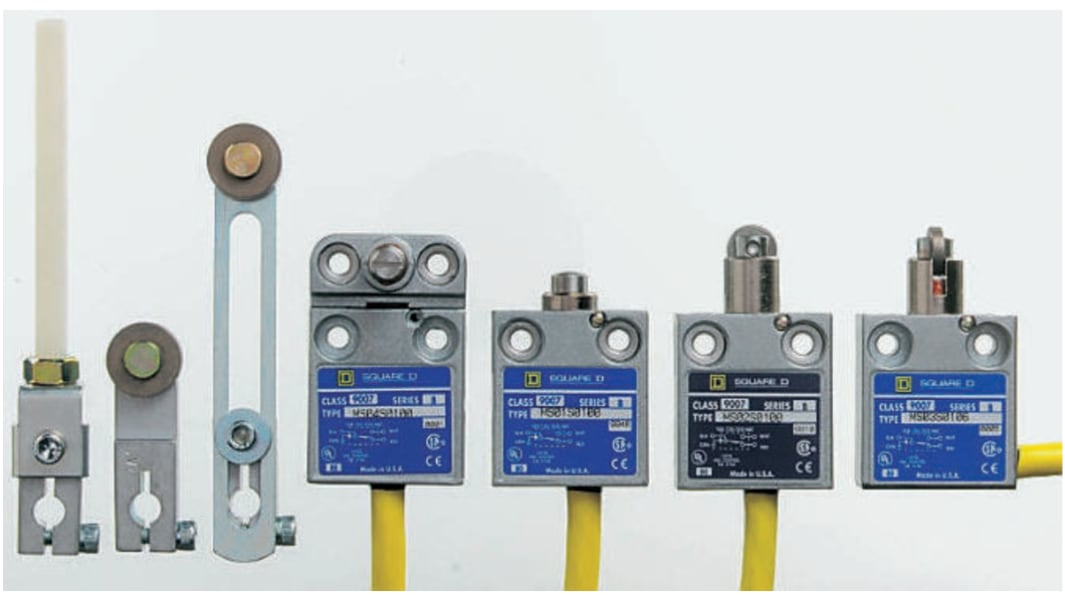

This image is representative of the product range

Stocked by manufacturer – available for delivery 24/06/2024

Added

Price (ex. GST) Each

$243.29

(exc. GST)

$267.62

(inc. GST)

Units	Per unit
1 +	$243.29

RS Stock No.:: 360-8988
Mfr. Part No.:: 9007MS04S0200
Brand:: Telemecanique Sensors

Technical data sheets

Type MS, ML Compact Limit Switches - Data Sheet

Legislation and Compliance

Non Compliant

Product Details

Square D, Heavy Duty, Metal Limit Switches, IP67

Metal encapsulated (IP67)
Very robust
Arduous environment suited e.g. earth moving equipment, machine tools, refuse vehicles, Manufacturing/ process lines
Bottom/side entry options available
1 & 2 metre cable and M12 4 pin connection options

Note

The rotary lever limit switch requires a lever arm actuator (typically stock no. 360-9032)

Standards

VDE0660, IEC947-5-1

Approvals

UL, CSA

Telemecanique, Square D & Crouzet

Specifications

Attribute	Value
Actuator Type	Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	10A
Housing Material	Die Cast Zinc
Maximum AC Voltage	240V
Maximum DC Voltage	28V
Connection Type	Cable
Series	9007
Action Type	Snap Action
Length	63.25mm
Depth	34.89mm
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+105°C
