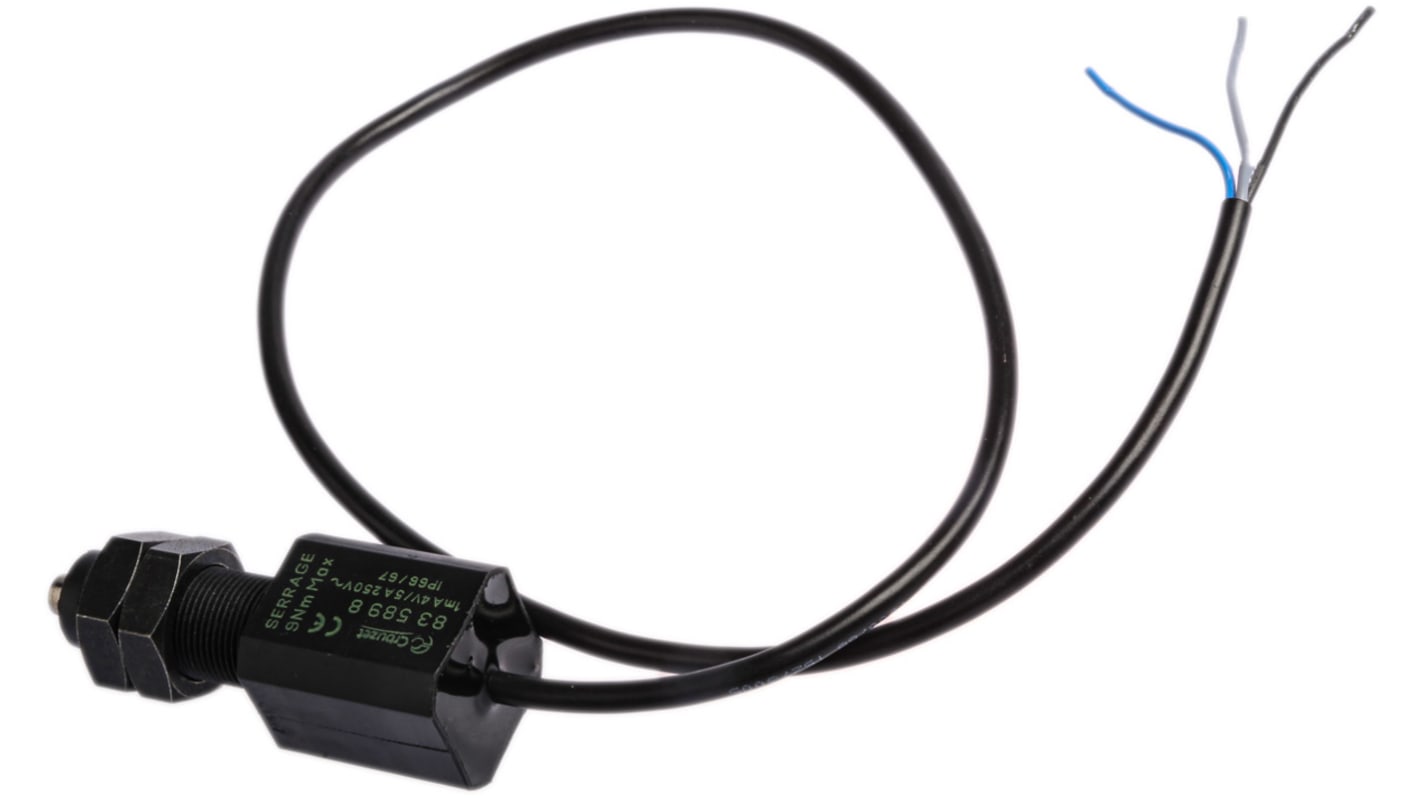

Crouzet 83589 Series Plunger Limit Switch, 1 NO/1 NC, IP67, IP66, Thermoplastic Housing, 250V ac, 8A
- RS Stock No.:
- 539-264
- Mfr. Part No.:
- 83589801
- Brand:
- Crouzet
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$127.82
(exc. GST)
$140.60
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 5 | $127.82 |
| 6 - 11 | $124.74 |
| 12 + | $123.78 |
*price indicative
- RS Stock No.:
- 539-264
- Mfr. Part No.:
- 83589801
- Brand:
- Crouzet
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Actuator Type | Plunger | |
| Product Type | Limit Switch | |
| IP Rating | IP67, IP66 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Thermoplastic | |
| Contact Type | Single Break | |
| Switching Current | 8A | |
| Terminal Type | Wire | |
| Series | 83589 | |
| Switching DC Voltage | 24V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 85°C | |
| Depth | 25mm | |
| Standards/Approvals | UL | |
| Width | 25mm | |
| Length | 70mm | |
| Hazardous Area Certification | No | |
| Operating Force | 10N | |
| Mechanical Life | 10000000Cycles | |
| Mounting Orientation | Top | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Actuator Type Plunger | ||
Product Type Limit Switch | ||
IP Rating IP67, IP66 | ||
Contact Configuration 1 NO/1 NC | ||
Housing Material Thermoplastic | ||
Contact Type Single Break | ||
Switching Current 8A | ||
Terminal Type Wire | ||
Series 83589 | ||
Switching DC Voltage 24V dc | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 85°C | ||
Depth 25mm | ||
Standards/Approvals UL | ||
Width 25mm | ||
Length 70mm | ||
Hazardous Area Certification No | ||
Operating Force 10N | ||
Mechanical Life 10000000Cycles | ||
Mounting Orientation Top | ||
- COO (Country of Origin):
- MA
Limit Switch for Severe Environments with Cable
This dual-current limit switch is designed to operate on both dual current (1mA 4V min.) and medium current (5A) circuits and should only be used to switch one type of circuit during its working life.
Press button protected by 'o' ring and scraper
8A at 250V
10 N operating force
15 N minimum total travel force
Differential travel 0.1mm, maximum travel 4.5mm
3 core cable (black,grey,blue) 0.5 metres in length with 0.75mm2 conductors, PVC coated 5mm outer diameter
Temperature range -40 to +85° C
Single break two-way contact element
Mechanical life 10 000 000 operations
80 grams in weight
Note
Note: Mechanical life refers to 200mA at 24Vdc, and will reduce with higher currents and voltages.
Standards
NFC 20030 Class I
