- RS Stock No.:
- 752-5584
- Mfr. Part No.:
- 121583-0027
- Brand:
- ITT Cannon
58 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$14.06
(exc. GST)
$15.47
(inc. GST)
Units | Per unit |
1 + | $14.06 |
- RS Stock No.:
- 752-5584
- Mfr. Part No.:
- 121583-0027
- Brand:
- ITT Cannon
Legislation and Compliance
Product Details

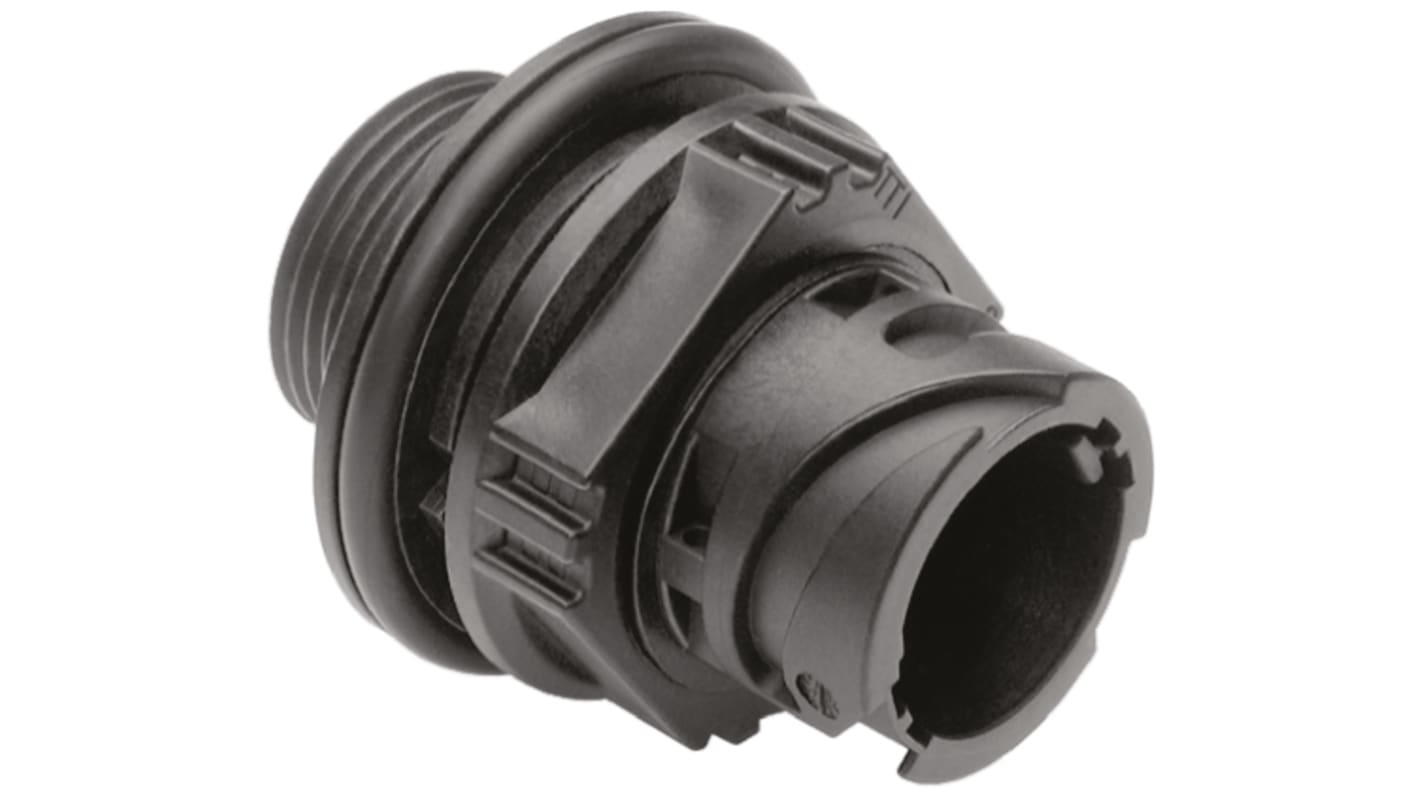

ITT Cannon Connectors APD Series High Power Connectors 2 Way
ITT Cannon connectors APD series high power connectors 2 way are suitable for high power connector applications such as tail lifts and power supplies for antennas and base stations and heavy automotive connector uses. The APD series connectors small form and high power handling make them ideal for many applications. Durable hard wearing connectors derived from ISO 15170.
Operating voltage 48 VDC
Contact resistance 2 mΩ
Voltage proof 1000Vac (60 secs)
Insulation resistance 10 MΩ (min.)
Up to 50 mating cycles
Contact resistance 2 mΩ
Voltage proof 1000Vac (60 secs)
Insulation resistance 10 MΩ (min.)
Up to 50 mating cycles
Note
Standards
DIN EN 60529, ISO 15170-2 sec.6.2, 6.3, 6.6, EN 60512
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
ITT Cannon APD Series ISO 15170 Connectors
The ITT Cannon APD series of connectors are a versatile range of full plastic direct, in-line and bulkhead circular connectors, specifically designed for the transportation, off-road and special vehicle markets. These circular connectors have a strong resistance to engine transmission and brake fluids and the associated environments. The APD series is also an ideal connector for other applications including military or industrial that require harsh environment solutions while insisting on a product that is both small in size and lightweight.The APD series of connectors cover a wide range of 1 and 2-way power solutions up to 51-way interface connectors.
Specifications
Attribute | Value |
---|---|
Number of Contacts | 2 |
Mounting Type | Panel Mount |
Plug/Socket | Socket |
Contact Gender | Female |
Termination Method | Crimp |
IP Rating | IP67 |
Body Orientation | Straight |
Series | APD |
Voltage Rating | 48 V dc |
Shell Size | 38 |
Housing Material | Thermoplastic |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -40°C |
