Steinbach & Vollman Polycarbonate Pin with a Fixed Pin, Screw Fixing, 60 mm x 60 mm x 8 mm

RS Stock No.:: 283-4063
Brand:: Steinbach & Vollman

Steinbach & Vollman Polycarbonate Pin with a Fixed Pin, Screw Fixing, 60 mm x 60 mm x 8 mm

Bulk discount available

Subtotal (1 pack of 2 units)*

$41.10

(exc. GST)

$45.20

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

32 unit(s) ready to ship
Plus 98 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
2 - 8	$20.55	$41.10
10 - 18	$20.295	$40.59
20 - 78	$19.92	$39.84
80 +	$19.475	$38.95

*price indicative

RS Stock No.:: 283-4063
Brand:: Steinbach & Vollman

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Steinbach & Vollman
	Product Type	Butt Hinge
	Material	Polycarbonate
	Hinge Type	Pin
	Length	60mm
	Closing Type	Free Swinging
	Width	60 mm
	Thickness	8mm
	Fixing Method	Screw
	Pin Style	Fixed
	Holes per Leaf	2
	Standards/Approvals	No

	Select all
	Brand Steinbach & Vollman
	Product Type Butt Hinge
	Material Polycarbonate
	Hinge Type Pin
	Length 60mm
	Closing Type Free Swinging
	Width 60 mm
	Thickness 8mm
	Fixing Method Screw
	Pin Style Fixed
	Holes per Leaf 2
	Standards/Approvals No

Dimensions

COO (Country of Origin):: DE

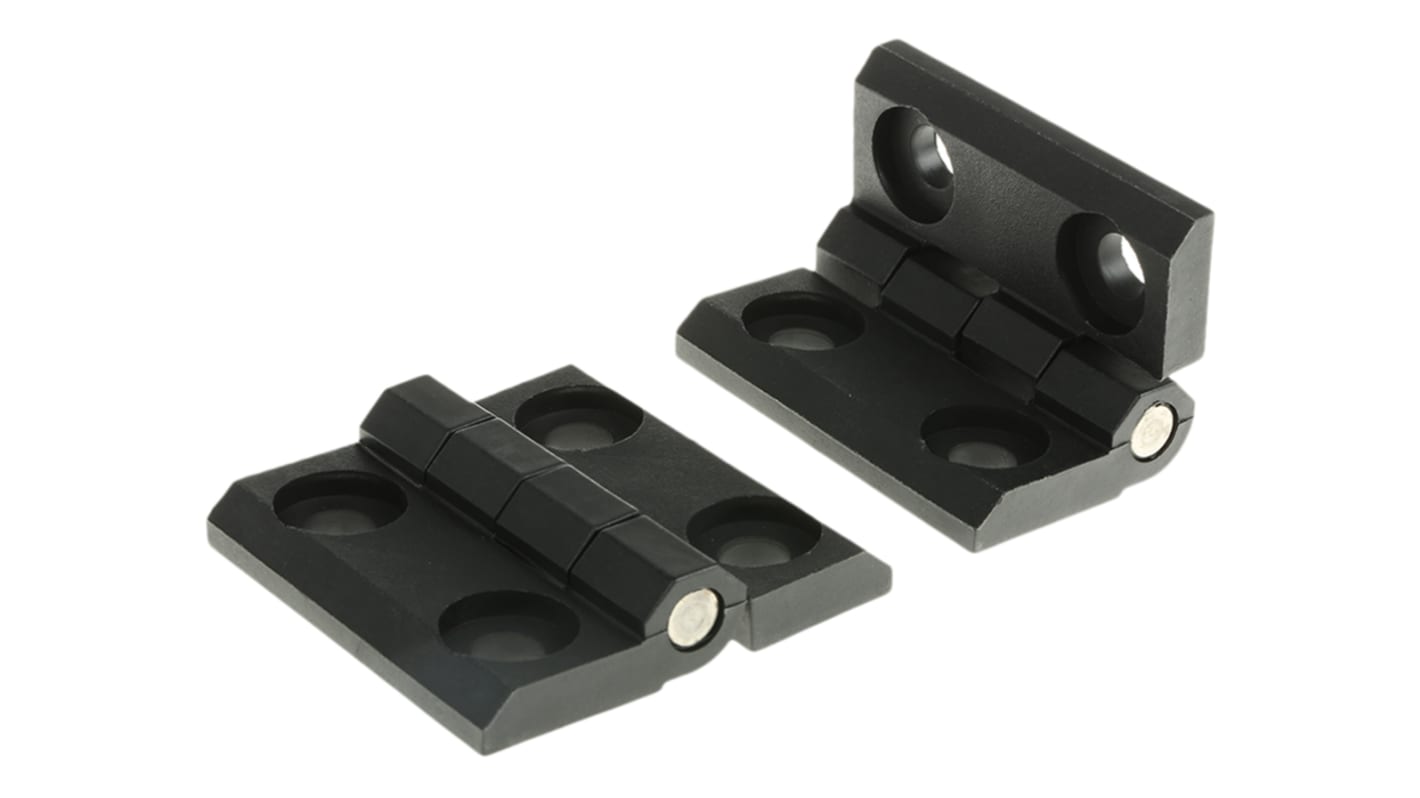

Polycarbonate Screw-on hinges with a stainless steel pin

These Polycarbonate hinges are made from PA6 30% (GF) Nylon. This tough and strong materials guarantee durability and enhanced shock resistance. It is also suitable for use in the dry state at low temperatures. A Stainless Steel made pin allows for 180° opening and it is rust protected.

Features and Benefits:

• Stainless Steel pin

• Wide 180° opening

• Hinges made of PA6, 30% Glass Filled Nylon

FAQ:

What are the dimensions of the hinges?

Please, look at the specifications sections below to find an exact information. You can also find all the details in the datasheet.

What does GF mean?

A GF acronym states for Glass Filled Polyamide, a type of polyamide that is very rigidity, high mechanical strength, and guarantee a high degree of hardness and toughness. These special properties make a GF Polyamide ideal for use in elements exposed to high temperatures and static loads.
