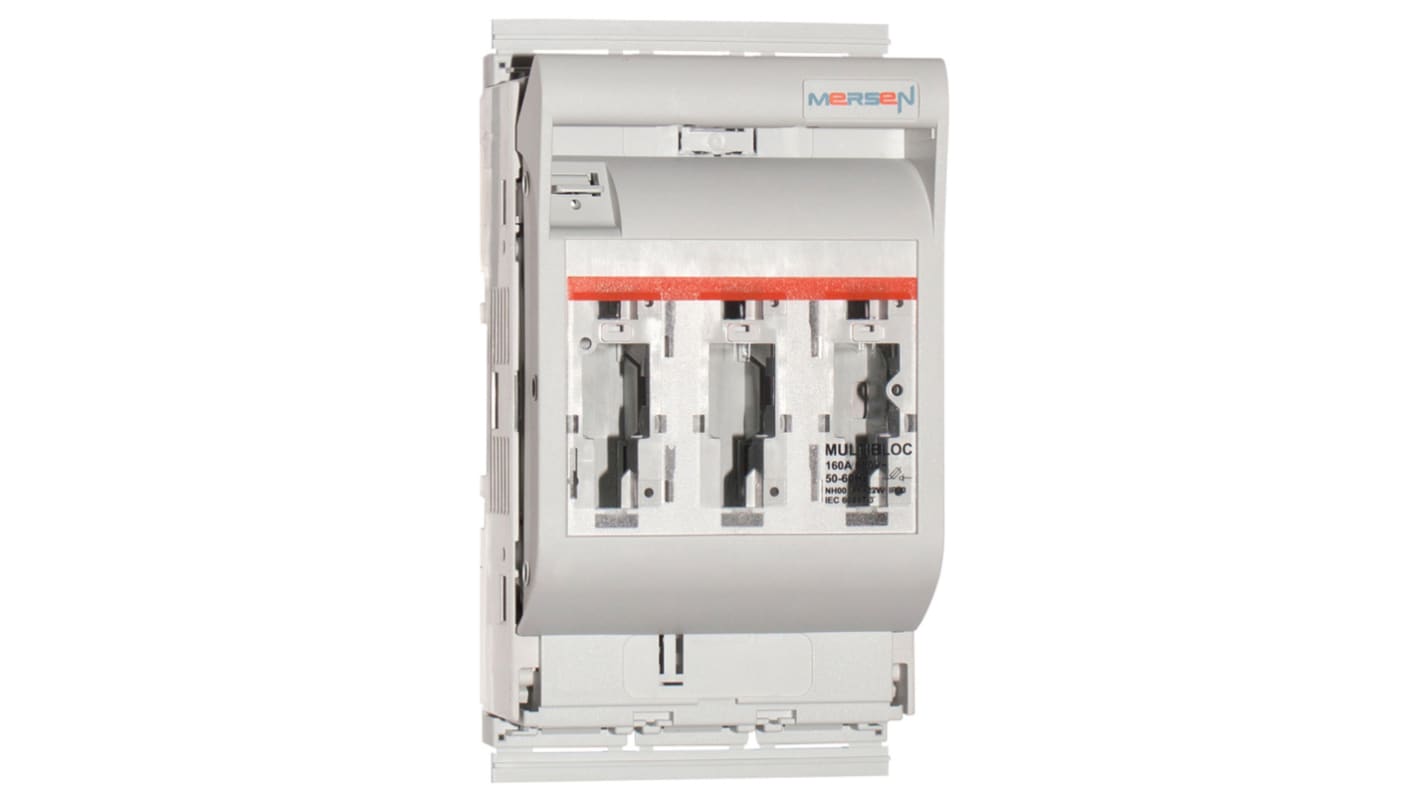

Mersen 160 A Rail Mount Fuse Holder, 3P-Pole, 690 V ac
- RS Stock No.:
- 136-0594
- Mfr. Part No.:
- P1023007 / 2.030.000
- Brand:
- Mersen
Temporarily out of stock
- RS Stock No.:
- 136-0594
- Mfr. Part No.:
- P1023007 / 2.030.000
- Brand:
- Mersen
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Mersen | |
| Product Type | Rail Mount Fuse Holder | |
| Range | MULTIBLOC | |
| Current Rating | 160 A | |
| Voltage | 690 V ac | |
| Number of Poles | 3 | |
| Rail Type | DIN 35 mm | |
| Indicator | No | |
| Standards/Approvals | CE, IEC | |
| Series | 00.ST9 | |
| Select all | ||
|---|---|---|
Brand Mersen | ||
Product Type Rail Mount Fuse Holder | ||
Range MULTIBLOC | ||
Current Rating 160 A | ||
Voltage 690 V ac | ||
Number of Poles 3 | ||
Rail Type DIN 35 mm | ||
Indicator No | ||
Standards/Approvals CE, IEC | ||
Series 00.ST9 | ||
Mersen MULTIBLOC® NH Fuse Switch Disconnectors Size 00.ST9 Series
From Mersen, a range of IEC fuse switch disconnectors to accommodate NH fuse links in accordance with IEC/EN 60269-2, VDE 0636-2 SIZE 00. The MULTIBLOC® 00.ST9 series are designed for bottom fitting and panel installation up to 160A. Suitable for mounting on TS35/15 DIN Rail EN60715.
Features and Benefits
• DIN Rail mounting to EN60 715 – optional
• IP30 rated
• Sealing and padlocking device integrated in switch door cover
• 81 mm Installation depth
• Modular system cover for cable termination area can be extended
Applications
• Transmitting stations
• Meter distribution units
• House incoming units
DIN Standard Fuse Holders
European style surface mount 3 pole fuse load switches/disconnectors for use with NH type industrial HRC fuses.
Standards
• IEC/EN 60 947-3
• For NH-fuse links size 000/00 in accordance with IEC/EN60 269-2
• VDE 0636-2
• For NH-fuse links size 000/00 in accordance with IEC/EN60 269-2
• VDE 0636-2
