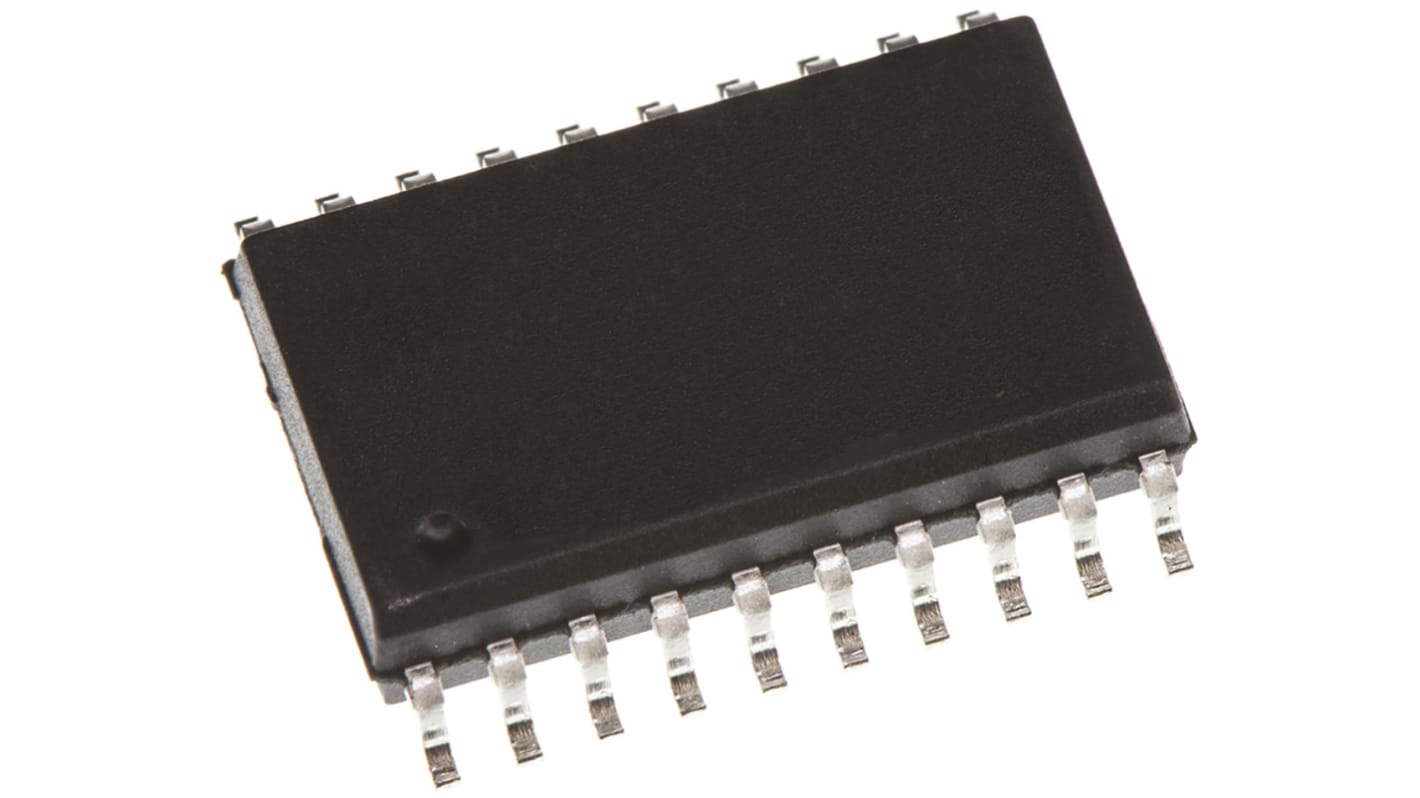

Texas Instruments 8 Flip Flop IC HC, 3 State, 20-Pin SOIC
- RS Stock No.:
- 145-0154
- Mfr. Part No.:
- CD74HC564M
- Brand:
- Texas Instruments
This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 145-0154
- Mfr. Part No.:
- CD74HC564M
- Brand:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Logic Family | HC | |
| Product Type | Flip Flop IC | |
| Input Type | Single Ended | |
| Output Type | 3 State | |
| Clock Frequency | 23MHz | |
| Polarity | Inverting | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 2V | |
| Package Type | SOIC | |
| Pin Count | 20 | |
| Maximum Supply Voltage | 6V | |
| Minimum Operating Temperature | -55°C | |
| Trigger Type | Positive Edge | |
| Maximum Propagation Delay Time @ CL | 43ns | |
| Flip-Flop Type | D Flip-Flop | |
| Number of Elements per Chip | 8 | |
| Maximum Operating Temperature | 125°C | |
| Length | 12.8mm | |
| Standards/Approvals | No | |
| Height | 2.35mm | |
| Series | CD74HC564M | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Logic Family HC | ||
Product Type Flip Flop IC | ||
Input Type Single Ended | ||
Output Type 3 State | ||
Clock Frequency 23MHz | ||
Polarity Inverting | ||
Mount Type Surface | ||
Minimum Supply Voltage 2V | ||
Package Type SOIC | ||
Pin Count 20 | ||
Maximum Supply Voltage 6V | ||
Minimum Operating Temperature -55°C | ||
Trigger Type Positive Edge | ||
Maximum Propagation Delay Time @ CL 43ns | ||
Flip-Flop Type D Flip-Flop | ||
Number of Elements per Chip 8 | ||
Maximum Operating Temperature 125°C | ||
Length 12.8mm | ||
Standards/Approvals No | ||
Height 2.35mm | ||
Series CD74HC564M | ||
Automotive Standard No | ||
74HC Family Flip-Flops & Latches, Texas Instruments
Texas Instruments range of Flip-Flops and Latches from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
