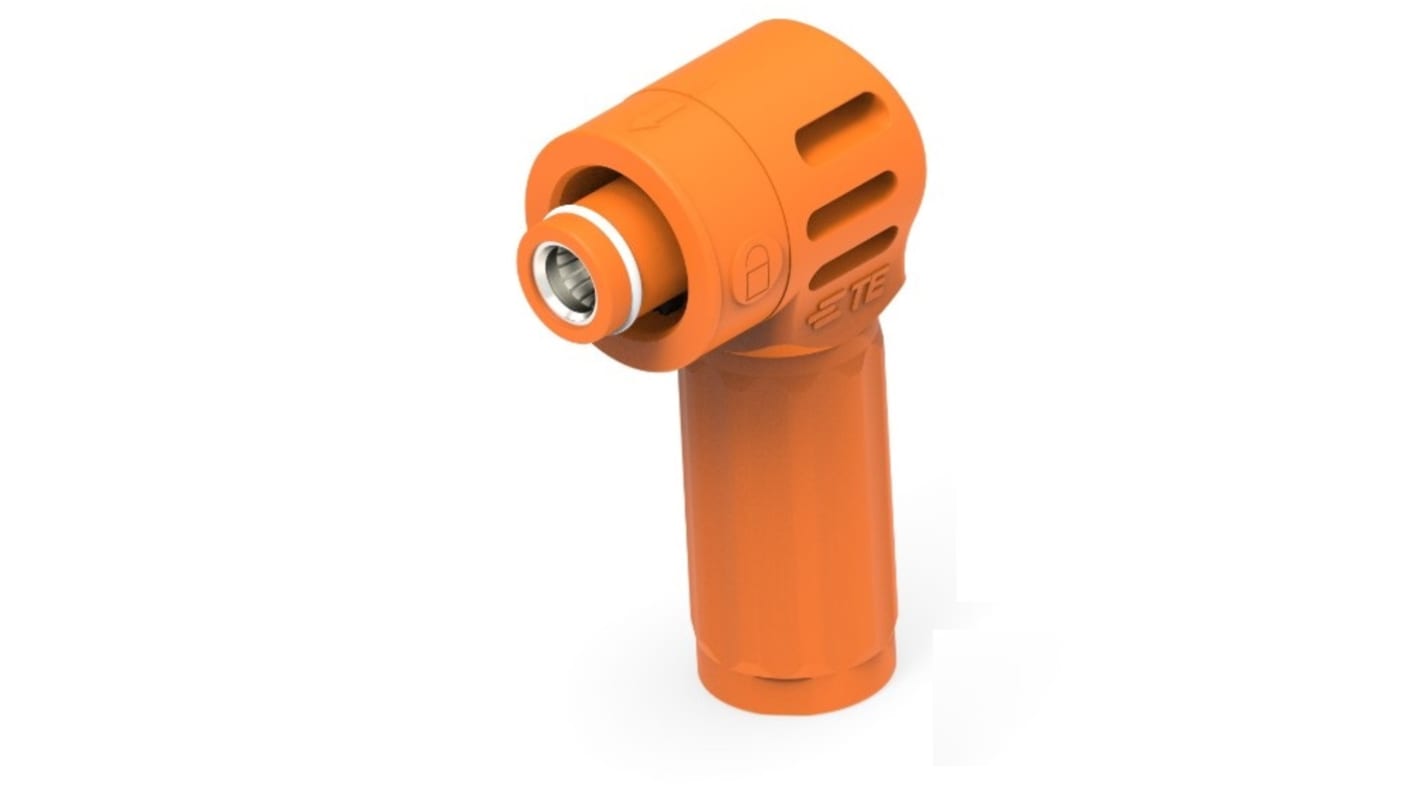

TE Connectivity, HPC Electric vehicle connector Socket, 200A, 78.5mm Cable

RS Stock No.:: 273-9931
Mfr. Part No.:: H1111000301-000
Brand:: TE Connectivity

TE Connectivity, HPC Electric vehicle connector Socket, 200A, 78.5mm Cable

180 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$52.46

(exc. GST)

$57.71

(inc. GST)

Units	Per unit
1 - 9	$52.46
10 - 19	$49.96
20 +	$47.96

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 273-9931
Mfr. Part No.:: H1111000301-000
Brand:: TE Connectivity

Technical data sheets

Legislation and Compliance

Product Details

The TE Connectivity Circular Power Connectors has plug type housing. It is a HPC 200A series connector. The HPC series focuses on Battery Energy Storage System to provide the high safety and reliability solution with one pole 200A and 1500V high current connector. Bringing the one piece moulding contact, HPC 200A Connector provides excellent temperature rise control capability. Meanwhile, HPC 200A connector installs with high performance temperature sensor to enable 24 Hrs system safety monitor. The smart locking system with 180 degree in line design, provides 360 degree rotation, 12 angles of locking with each 30 degrees, quick lock and press to release function to enable convenient and fast assembly of large volume connectors on site.

Simple field unlocking
Flexible cable assembly
IP67 Safety and reliability
Compliance RoHS with REACH
Excellent temperature rise control
Enable intelligent safety monitoring
Visualization to avoid wrong plugging
Finger proof prevents error finger touch
Flexible direction select and fixed matching

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Range	HPC
Series	HPC
Connector Type	Assembly
Number of Rows	1
Number of Contacts	1
Wire Size	50 mm²
Current Rating	200A
Operating Voltage	1500V
Connector Gender	Female
Contact Gender	Female
Key Type	P
Termination Method	Crimp
Mounting Type	Cable Mount
Better World Claim	Renewable energy solution
Better World Product	Yes
Cable Length	78.5mm
Colour	Orange
Housing Material	Nylon 66
Maximum Operating Temperature	+125°C
Minimum Operating Temperature	-40°C
Latching Type	Quick Lock
Standards Met	UL 94V-0
