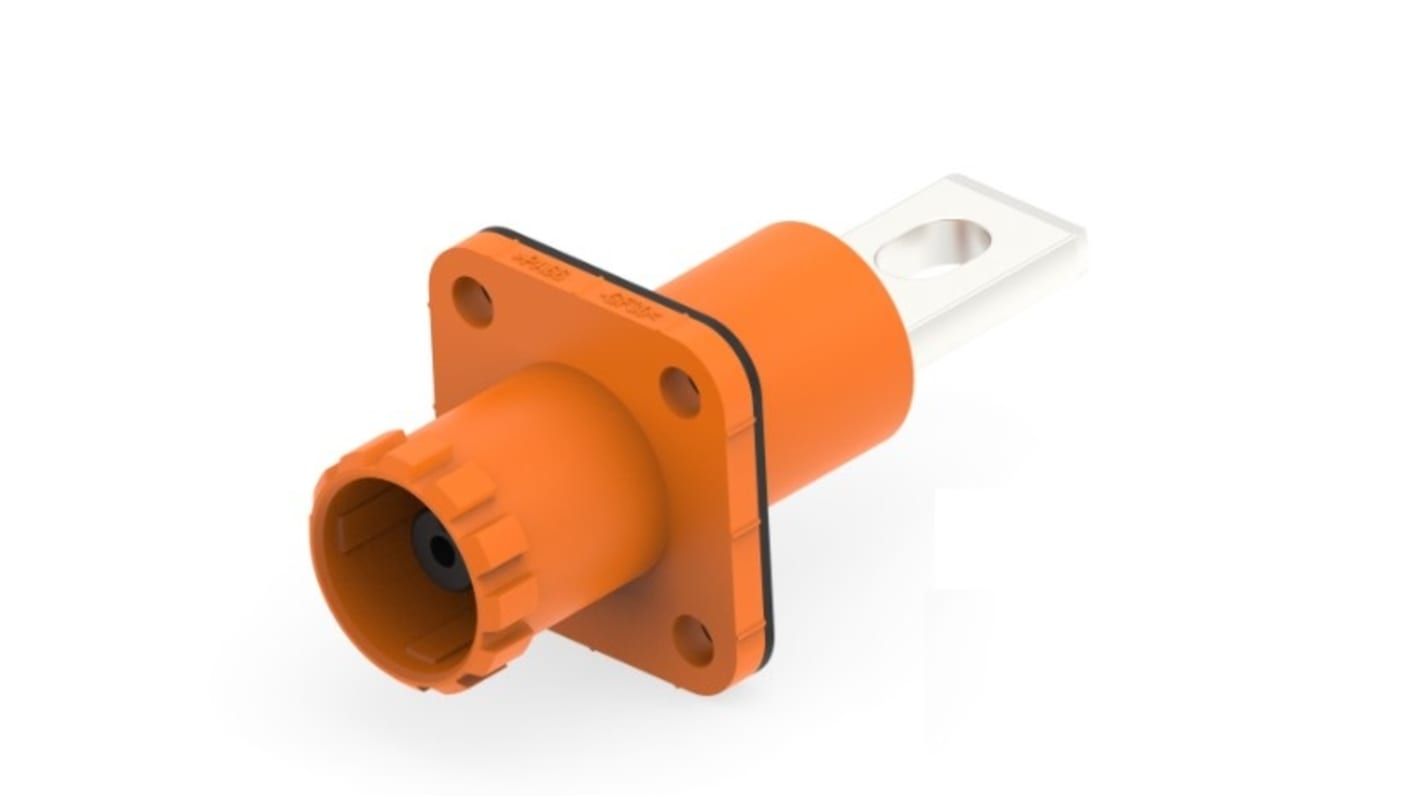

TE Connectivity, HPC Electric vehicle connector Plug, 200A, 66.8mm Cable

The TE Connectivity Circular Power Connectors has receptacle type housing. It is a HPC 200A series connector. The HPC series focuses on Battery Energy Storage System to provide the high safety and reliability solution with one pole 200A and 1500V high current connector. Bringing the one piece moulding contact, HPC 200A Connector provides excellent temperature rise control capability. Meanwhile, HPC 200A connector installs with high performance temperature sensor to enable 24 Hrs system safety monitor. The smart locking system with 180 degree in line design, provides 360 degree rotation, 12 angles of locking with each 30 degrees, quick lock and press to release function to enable convenient and fast assembly of large volume connectors on site.

Simple field unlocking
Flexible cable assembly
IP67 Safety and reliability
Compliance RoHS with REACH
Excellent temperature rise control
Enable intelligent safety monitoring
Visualization to avoid wrong plugging
Finger proof prevents error finger touch
Flexible direction select and fixed matching
