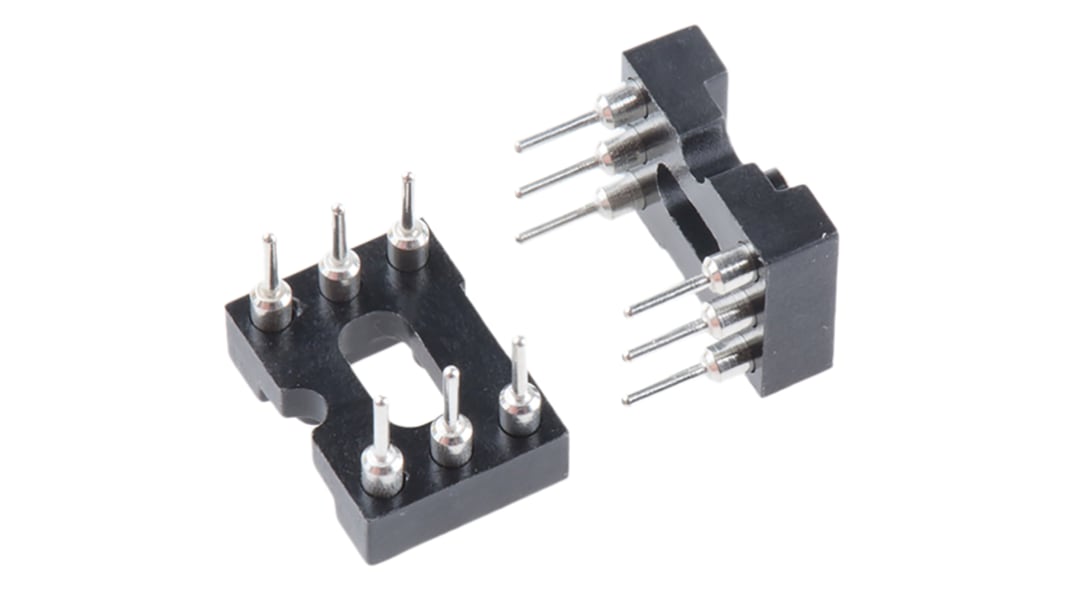

E-TEC 2.54mm Pitch Vertical 6 Way, Through Hole Turned Pin Open Frame IC Dip Socket
- RS Stock No.:
- 600-7754
- Mfr. Part No.:
- POS-306-S001-95
- Brand:
- E-TEC
1809 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (In a Tube of 67)
$0.945
(exc. GST)
$1.039
(inc. GST)
Units | Per unit | Per Tube* |
---|---|---|
67 - 3283 | $0.945 | $63.315 |
3350 - 16683 | $0.929 | $62.243 |
16750 + | $0.765 | $51.255 |
*price indicative
- RS Stock No.:
- 600-7754
- Mfr. Part No.:
- POS-306-S001-95
- Brand:
- E-TEC
Technical data sheets
Legislation and Compliance
Product Details
Precision Gold Contacts
Precision DIP sockets with gold plated 'tulip' grip contacts & tin plated pins
Prevents capilliary action with solder & flux on PCB's
Open frame construction maximises heat dissipation
Temperature Range: -65°C to +125°C
Contacts: Beryllium copper
Pins: Brass
100 Cycles (Contact Life)
Insulation Resistance: 5 x 109 Ω (at 500Vdc) (Std and hi-Temp); >104 MΩ (at 500Vdc) (FR4 Epoxy)
Prevents capilliary action with solder & flux on PCB's
Open frame construction maximises heat dissipation
Temperature Range: -65°C to +125°C
Contacts: Beryllium copper
Pins: Brass
100 Cycles (Contact Life)
Insulation Resistance: 5 x 109 Ω (at 500Vdc) (Std and hi-Temp); >104 MΩ (at 500Vdc) (FR4 Epoxy)
![](https://media.rs-online.com/t_line/LF160493-10.gif)
![](https://media.rs-online.com/t_line/LF160493-11.gif)
Specifications
Attribute | Value |
---|---|
Number of Contacts | 6 |
Mounting Type | Through Hole |
Pin Type | Turned |
Pitch | 2.54mm |
Row Width | 7.62mm |
Frame Type | Open Frame |
Termination Method | Solder |
Contact Plating | Gold, Tin |
Orientation | Vertical |
Length | 7.6mm |
Width | 4.45mm |
Housing Material | PBT |
Contact Material | Beryllium Copper |
