Yamaichi 2.54mm Pitch 24 Way, Through Hole IC Dip Socket, 1A
- RS Stock No.:
- 166-703
- Mfr. Part No.:
- IC30-2403-G4
- Brand:
- Yamaichi
5 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each
$7.50
(exc. GST)
$8.25
(inc. GST)
| Units | Per unit |
| 1 - 49 | $7.50 |
| 50 - 199 | $7.20 |
| 200 + | $6.90 |
- RS Stock No.:
- 166-703
- Mfr. Part No.:
- IC30-2403-G4
- Brand:
- Yamaichi
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

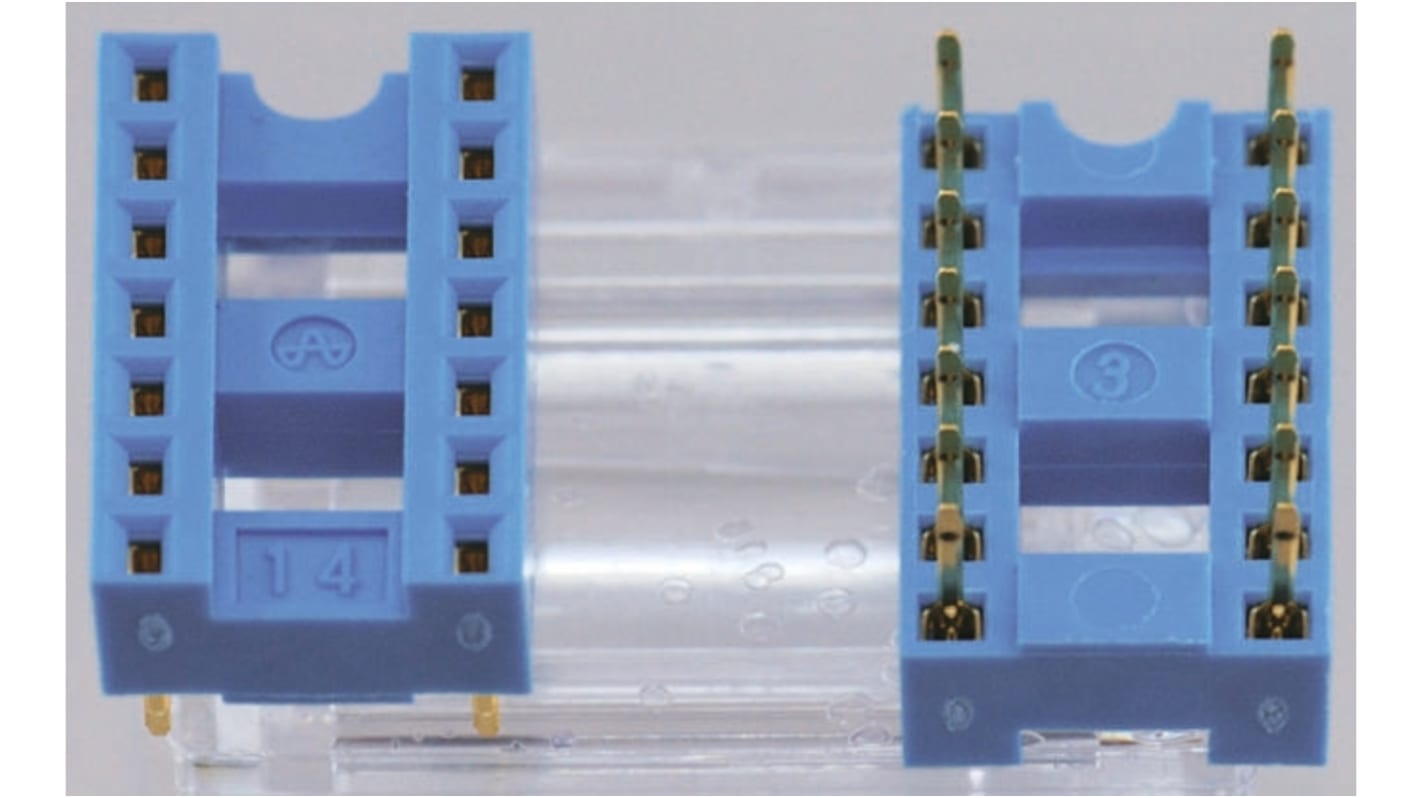

2.54 mm Pitch DIP Socket, IC30 Series
Highly reliable dual-side connection type
Socket suitable for high-density mounting at 2.54 mm pitch, even when situated vertically
Socket suitable for high-density mounting at 2.54 mm pitch, even when situated vertically
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 24 |
| Mounting Type | Through Hole |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Termination Method | Solder |
| Contact Plating | Gold |
| Current Rating | 1A |
| Contact Material | Copper Alloy |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +85°C |
| Housing Material | PET |
