Depth Gauges

A depth gauge, sometimes called a depth measurement instrument or depth indicator, is a precision tool used to accurately determine the depth of holes, slots, recesses, and steps in a workpiece. It works by combining a flat base, which sits flush against the surface being measured, with a sliding rod or blade that extends down into the feature until it makes contact, giving a precise depth reading. Depth gauges are essential across engineering, machining, and metrology, wherever a measurement needs to be accurate to fine tolerances rather than estimated by eye.

RS Australia stocks a comprehensive range of precision depth gauges, including digital, dial, vernier, and depth gauge micrometre types, from trusted brands such as Mitutoyo, Starrett, and RS PRO.

Types of Depth Gauges

Depth gauges, also known as depth measuring devices, come in several types, each suited to different levels of precision, budgets, and applications.

Analog/Dial Depth Gauges

Analog, or dial, depth gauges use a dial face with a needle indicator to display their measurements, similar in principle to a dial indicator or dial calliper. As the rod or blade is pressed into the feature being measured, the needle rotates around the dial to display the reading. These gauges are valued for their durability and simplicity, and because they do not rely on a battery, they remain a reliable option in busy workshops.

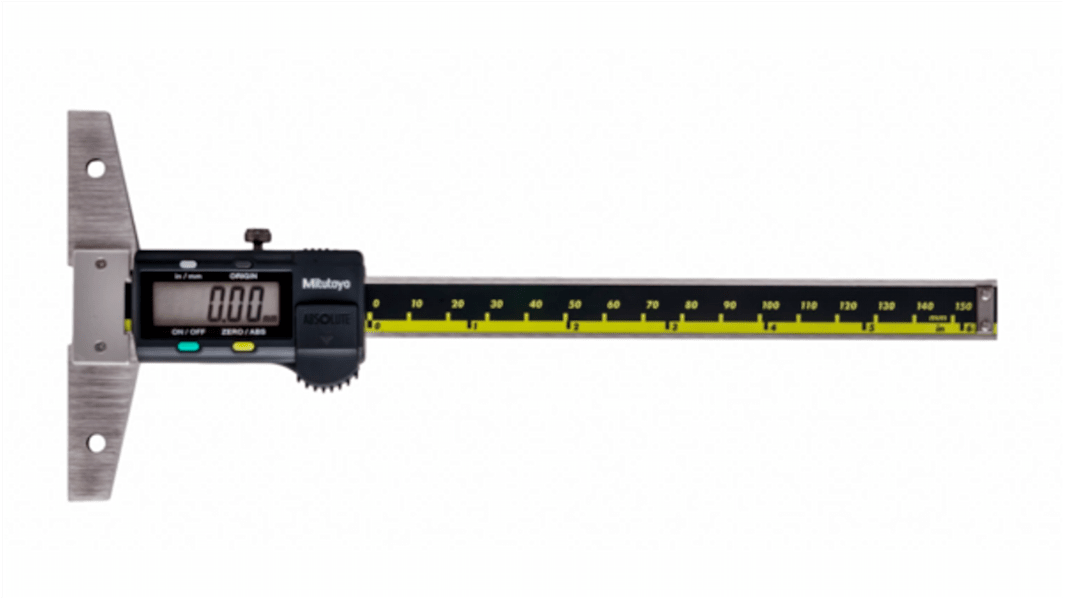

Digital Depth Gauges

Digital depth gauges use a battery-powered LCD display to show the measurement as a clear numerical readout, removing the need to interpret a dial or scale. Most models run on a small coin cell battery and offer features such as inch/metric conversion and hold functions, making them a fast, easy-to-read depth tester for repetitive measurement tasks.

Vernier Depth Gauges

Vernier depth gauges use a vernier scale, the same fine measurement system found on precision vernier callipers, to achieve highly accurate readings without a battery. A main scale shows the full unit of measurement, while a secondary sliding vernier scale allows readings to the nearest millimetre or thousandth of an inch, making it a dependable, battery-free instrument for technicians.

Depth Gauge Micrometers

Depth gauge micrometers use a precision micrometer spindle mechanism to achieve even finer measurement resolution than standard depth gauges. As the spindle is wound down into the feature being measured, the fine-thread pitch allows for extremely small, controlled increments, making these instruments preferred for exacting engineering and quality-control applications where tight tolerances are critical.

How Do Depth Gauges Work?

A depth gauge works by resting its flat base flush against the surface of the workpiece while a sliding rod, blade, or depth ruler extends down into the hole, slot, or recess being measured. Keeping the base perfectly perpendicular to the surface is essential, as tilting the gauge even slightly will give a false reading. Many digital depth gauges can also be zeroed, or datum reset, at any position along their travel, which is particularly useful for comparative measurements, such as checking the difference in depth between two features rather than measuring from a fixed zero point.

Applications of Depth Gauges

Depth gauges are used wherever an accurate depth measurement is needed, from construction sites through to precision engineering workshops.

• Construction and Remodelling: checking recess and slot depths accurately during fit-outs, renovations, and general building work.
• Holes, Slots, and Recesses: used as a hole depth gauge to verify drilled holes, machined slots, and recessed fittings match specification.
• Centre Distances: confirming the centre distance between features on a workpiece for consistent spacing across a production run.
• Precision Machining and Computer Numerical Control (CNC) Verification: checking that CNC machined features meet exact depth tolerances before moving to the next stage.
• Quality Control (QC) Inspection: supporting QC teams checking finished parts against engineering drawings and specifications.
• Tool and Die Manufacture: depth gauge micrometers are used in tool and die making, where extremely fine tolerances are critical.
• Mould and Die Depth Measurement: verifying cavity and recess depths in mould tooling for consistent part quality.

Engineering and Industrial Applications of Depth Gauges

RS Australia's depth gauge tool range spans everyday workshop options through to professional metrology grade instruments, giving Australian trade and engineering customers genuine choice at every budget. Workshop grade options suit general trade and maintenance use, while professional instruments deliver the resolution demanded by precision metrology labs.

Precision Machining & Quality Control

Manufacturing and precision engineering workshops rely on depth gauges to verify machined features against engineering drawings, supporting consistent quality across every production run.

Automotive & Aerospace

Automotive repair and inspection work use depth gauges to check component wear and clearances, while aerospace manufacturers rely on them to verify critical dimensions of safety-sensitive components.

Construction & Trade

Depth gauges support construction QA tasks on site, including checking slab thickness when levelling concrete floors and verifying recess depths in mould and plastics tooling before a job is signed off.

Buy Depth Gauges Online from RS Australia

RS Australia is a trusted supplier and distributor of depth gauges and precision measuring instruments for trade, engineering, and industrial use. If you need to buy a depth gauge, our range includes leading brands such as Mitutoyo, Facom and our own RS PRO range, covering everything from workshop grade dial gauges to professional metrology-grade micrometres.

To help you keep your instruments performing accurately, RS Australia also stocks a wide range of related products, including thermal imaging sensors, torque testers and microwave testers, to complete your quality control toolkit.

Placing an order is straightforward: add the product you need to your basket and complete checkout online, with credit account options available for trade and business buyers. RS Australia delivers nationwide, with next-working-day dispatch where applicable, so check our delivery page for full details.
