Mastering the Vernier Caliper, A Practical Guide

A Vernier calliper is a precision instrument that measures linear dimensions, including lengths, depths, and internal and external diameters. It is an essential tool in various fields, such as mechanical engineering, manufacturing, quality control, and scientific research.

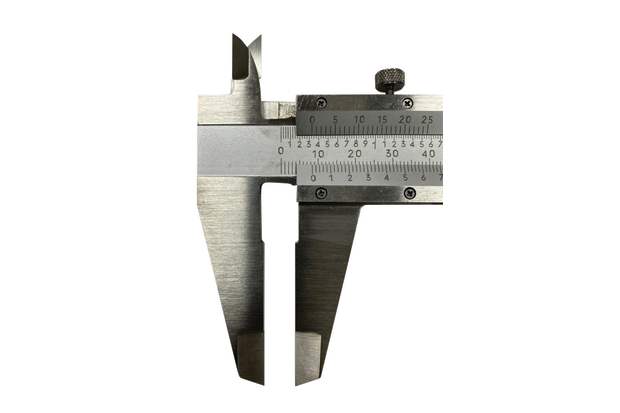

The caliper consists of two key measuring components:

• Main Scale: A fixed scale marked with standard units (millimetres or inches).
• Vernier Scale: A sliding scale that moves parallel to the main scale and provides finer measurement increments.

The unique combination of these scales allows Vernier calipers to deliver measurements with high precision, often to the nearest 0.02 mm or 0.001 inches. Check out our selection of Vernier calipers at RS Australia.

The main scale of the Vernier caliper resembles the standard ruler, marked with uniform divisions, while the Vernier scale features slightly smaller divisions. As the two scales align, a specific division on the Vernier scale matches precisely with a division on the main scale, revealing an exact measurement. This clever design enables Vernier calipers to deliver precise readings to a fraction of the smallest division on the main scale.

A digital Vernier caliper is an advanced version of the traditional Vernier caliper tool. It features an electronic display for easy reading of measurements, eliminating the need for manual calculations. These calipers offer improved accuracy and user convenience. Additionally, it often includes additional features such as metric/imperial conversion.

The Vernier height gauge is commonly used for taking measurements with an accuracy of 0.001 inches or 0.02 mm and for layout tasks, such as marking a specified height on a workpiece. It consists of three main components: the foot block (base), the column (beam), and the slide arm. The main scale is on the column, while the Vernier scale is attached to the slide arm.

Similar to the Vernier caliper, the main scale on height gauges is graduated in increments of 0.025 inches or 1 mm, with a Vernier scale enabling readings as precise as 0.001 inches or 0.02 mm. Measurements are taken the same way as with other Vernier measuring instruments. Explore our choices of Vernier height gauges at RS Australia.

The zero error occurs when the zero marks on the main scale and Vernier scale do not align when the caliper is fully closed. This error can be positive or negative, depending on whether the scales are ahead or behind each other.

Correcting zero error is crucial for accurate measurements and can be done by calibrating the instrument.

A Vernier caliper is made up of several key components, each designed to perform specific functions that contribute to its precision.

External Measuring Jaws

These are the large jaws used for measuring the external dimensions of objects, such as the thickness, width, or diameter of a material. The jaws are carefully aligned to ensure precise and consistent readings. There are two different types of external measuring jaws: the fixed jaw, which is on the left side and is part of the main body, and the movable jaw, which is the jaw that slides along the main scale.

Internal Measuring Jaws

Smaller than the external jaws, the internal measuring jaws are designed for measuring the internal dimensions of objects, such as the diameter of holes, pipes, or other openings. Their thin, pointed design ensures they can fit into small spaces for accurate measurements.

Main Scale

The main scale is the stationary component of the caliper and is marked with standard measurement units, typically in mm and inches. It provides the base reading for measurements and serves as the foundation for the sliding Vernier scale.

Vernier Scale

The Vernier scale is a sliding component that moves along the main scale. Its smaller graduations enable users to take precise readings by aligning its markings with those on the main scale.

Lock Screw

The lock screw secures the Vernier scale in place once the desired measurement has been taken. This feature is handy for maintaining accuracy when you need to record a measurement or transfer it elsewhere.

Thumb Screw

The thumb screw, often located near the bottom of the caliper, allows the user to smoothly adjust the sliding Vernier scale along the main scale. It ensures precise positioning of the jaws or depth rod, making it easier to take accurate measurements without overshooting.

Depth Rod or Depth Bar

The depth bar, sometimes called the depth bar, is a thin, elongated component that extends from the end of the caliper when the jaws are opened. It is used to measure the depth of holes, slots, or recesses with precision. This feature makes the Vernier caliper a versatile tool for various measurement tasks.

Fine Adjustment Screw

The fine adjustment screw is an additional mechanism that allows for precise and controlled movement of the Vernier scale along the main scale. This is especially useful for making small, incremental adjustments to the measurement for enhanced accuracy.

Digital Display

If you’re using a digital caliper, it will typically feature an easy-to-read digital display that provides accurate and instant measurements of the object. This eliminates the need to manually interpret scale readings, ensuring greater convenience and reducing the chance of human error.

Setting Buttons

Depending on the model, digital Vernier calipers may include one or more buttons. These buttons allow users to:

• Set the Origin or Zero Position: Reset the caliper for accurate relative measurements.
• Switch Between Units: Toggle seamlessly between inches and millimeters to suit your measurement needs.

Battery

Digital models often have a battery life indicator displayed on the screen. This feature helps users monitor the power level and ensures the caliper is ready for use without unexpected interruptions.

The Vernier caliper is an indispensable tool for professionals who require precise and reliable measurements. It offers unparalleled accuracy with its dual-scale design, allowing users to measure internal and external dimensions as well as the depth of objects with precision up to 0.02 mm or 0.001 inches. This versatility makes it suitable for a wide variety of applications, from measuring the diameter of pipes and the thickness of materials to determining the depth of recesses or holes. Whether working with metals, plastics, or other materials, the Vernier caliper adapts seamlessly to different tasks, making it a go-to instrument for engineers, manufacturers, and technicians alike.

In addition to its precision and versatility, the Vernier caliper is both cost-effective and portable. Compared to other precision measuring tools, it provides exceptional value while maintaining compactness and ease of use in various environments, including workshops, factories, and on-site locations. Its role in engineering, mechanical applications, quality control, and manufacturing cannot be overstated, as it helps ensure that components and products meet exact specifications. Whether measuring small components or larger objects, the Vernier caliper is an essential tool for anyone seeking accuracy and efficiency in their work.

Vernier calipers are capable of measuring up to 0.02mm or 0.001 inches. The dual-scale system enhances precision and reduces errors, making it ideal for industries where exact measurements are critical.

While both Vernier calipers and micrometers are precision measuring tools, they differ significantly in design and application.

Vernier calipers are highly versatile and capable of measuring various dimensions. On the other hand, micrometers are specifically designed for taking exceptionally fine measurements with an even higher degree of accuracy.

Key Differences Between Micrometers and Calipers

When comparing precision measuring tools, it's important to understand the distinct differences between a micrometer caliper and a Vernier caliper. Both tools are vital in machining, engineering, and other industries, but they serve different functions and are designed with specific features that suit different needs.

• Measurement Precision

Known for their high precision, micrometer calipers offer accuracy up to 0.001mm (0.0001 inches), making them ideal for tasks requiring extreme detail. On the other hand, Vernier calipers offer precision of 0.01mm (0.001 inches), which is less than a micrometer caliper's precision but still highly accurate.

While not as precise as micrometers, Vernier calipers are versatile and provide a good level of accuracy for general use.

• Measurement Range

Vernier calipers offer a broader measurement range, typically from 0 to 6 inches (0 to 152.4mm), though larger versions can measure up to 12 inches or more. In contrast, micrometers have a limited measurement range. The most common range is from 0-25mm (0-1 inch), with some models extending up to 600mm (24 inches).

• Type of Measurement

While Vernier calipers are capable of measuring inside, outside and depth dimensions, micrometers can only measure external diameters. However, there are specialised micrometers that can measure the internal diameter and depth of an object specifically.

• Accuracy

Micrometers provide accuracy to a finer detail, with readings as precise as 0.001mm or 0.0001 inches.

While Vernier calipers are accurate, their tolerance is typically around ±0.02mm or ±0.001 inches, making them more suitable for general measurement tasks.

• Design

While a Vernier caliper features a main scale and a sliding Vernier scale for measuring different types of internal and external dimensions, a micrometer has a distinct design. It consists of a sturdy frame, a spindle that moves towards a fixed anvil, and a precision screw mechanism for measuring thickness or diameter. This robust design is highly specialised and tailored primarily for precise external measurements, making it ideal for applications requiring extreme accuracy.

• Ease of Use

Despite being highly precise, micrometers require more skill and finesse to use accurately. A small error in technique, such as improper handling or incorrect placement of the object, can lead to inaccurate readings. Also, the temperature can affect micrometer readings, which requires careful handling.

Vernier calipers are easier to use than micrometers, thanks to their more intuitive design. The scale is simple to read, and while the Vernier scale requires a bit of practice, it’s generally easier for beginners to master than micrometers.

• Common Applications

Micrometers are mainly used for measuring small external diameters, thicknesses, and small parts in high-precision manufacturing environments, such as automotive, aerospace, and precision engineering.

Due to their versatility, Vernier calipers are commonly used in a variety of fields, from woodworking and mechanical engineering to electrical work and metalworking. They are ideal for measuring internal and external diameters, lengths, and depths of components.

• Calibration

Micrometers generally require more frequent calibration, especially when used in high-precision applications. Regular calibration ensures their accuracy, and micrometers typically come with a standard calibration block for adjustments.

While Vernier calipers also require calibration, it is usually less frequent than for micrometers due to their broader tolerance levels. However, they should still be calibrated regularly for consistent accuracy.

• Material of Construction

Micrometers are typically constructed from hardened steel or carbide for durability and stability. The anvils, in particular, may be made of carbide for extra hardness, ensuring that they don’t wear out quickly.

Typically, Vernier calipers are usually made of stainless steel for strength and resistance to corrosion. Some high-end models may have carbide tips for improved accuracy and longevity.

• Cost

Micrometers are generally more expensive due to their high precision and specialised design, with digital models or advanced features adding to the cost.

In contrast, Vernier calipers are more budget-friendly, especially basic models, making them a popular and accessible choice for general measurement tasks. However, premium digital caliper models can also be pricier, depending on their features and build quality.

Using a Vernier caliper for the first time can feel daunting, but with this step-by-step guide, you'll quickly become comfortable with this precise measuring tool:

1. Ensure the Caliper is Calibrated

   Begin by ensuring the caliper is properly calibrated. Close the jaws completely and check if the "0" mark on the main scale aligns with the "0" on the Vernier scale. If not, recalibrate the tool before proceeding.

2. Open the Jaws Slightly Wider Than the Object

   Use the thumbscrew to gently open the caliper jaws. Ensure the opening is slightly larger than the object to make placement easier.

3. Place the Object Between the Jaws (or Depth Rod in a Hole)

   For external measurements, position the object between the external jaws of the caliper.If you’re using it for internal measurements, use the smaller internal jaws to measure the inner dimensions of a hole or slot.

   When measuring the depth of an object, extend the depth rod into the hole, groove, or recess you want to measure. Ensure the base of the caliper is flush against the surface for accurate readings.

4. Gently Close the Jaws Until Snug

   Gradually close the jaws around the object until they make light contact. Avoid applying too much pressure, as this may damage the object or cause incorrect measurements. For depth measurements, ensure the depth rod is fully extended and the base is flat on the surface.

5. Read the Measurement from the Scales

   Once the caliper is securely positioned and snug against the object, hold it steady and proceed to read the measurement from the scales. The next section provides more details on how to interpret the readings correctly.

Regular calibration is essential to maintain the accuracy of your Vernier caliper, especially if it’s used frequently or in environments prone to wear and tear. Follow these steps to calibrate your caliper effectively:

1. Close the Jaws Fully and Check the Zero Alignment

Start by completely closing the external jaws of the caliper. Observe the "0" marks on the main scale and the Vernier scale. They should align perfectly.

If the marks are misaligned, proceed with the calibration.

2. Adjust the Zero Using the Calibration Screws

Locate the calibration screws, usually found near the sliding mechanism of the caliper. Use a small screwdriver to adjust the screws until the "0" marks on the main and Vernier scales align.

Be cautious to make precise and minimal adjustments, as overcompensation can cause errors.

3. Test the Caliper with a Standard Gauge Block

Use a certified gauge block or another object with a known measurement. Then, place the block between the external jaws and take a measurement. Compare the caliper reading to the standard measurement.

If discrepancies are found, make additional adjustments using the calibration screws.

4. Verify Internal and Depth Measurements

Test the internal measuring jaws by measuring the inner dimensions of a known object, such as a ring or bore. Similarly, test the depth rod by measuring the depth of a standard recess.

5. Recheck for Consistency

After making adjustments, recheck the zero alignment and repeat the measurements with the gauge block to confirm consistency.

Calibrating a Vernier caliper is a crucial step to ensure precise and reliable measurements, especially in demanding environments or frequent use. By following these systematic steps, you can ensure the tool's accuracy and longevity, keeping it dependable for years to come.
