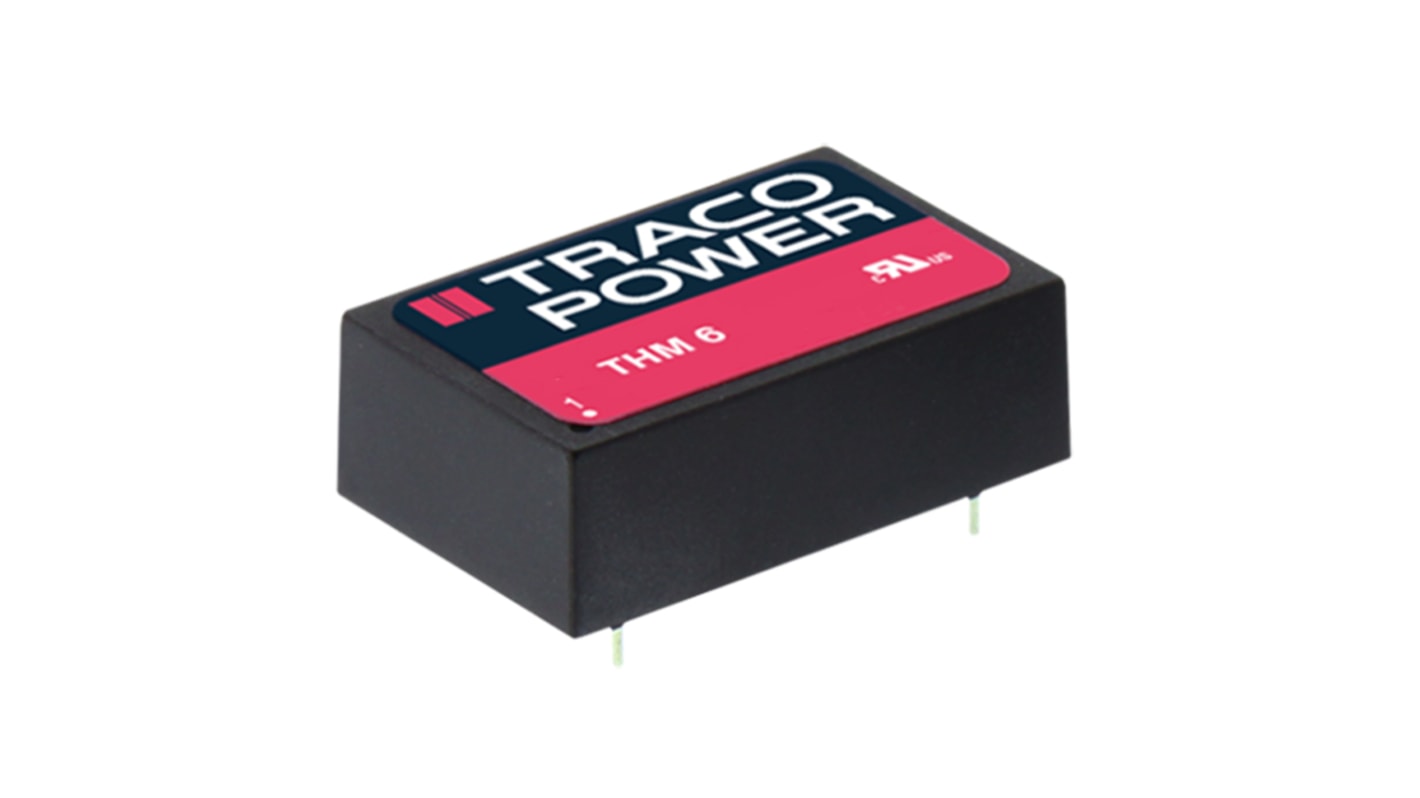

TRACOPOWER THM 6 DC-DC Converter, 5V dc/ 1.2A Output, 36 → 75 V dc Input, 6W, PCB Mount, +90°C Max Temp -40°C
- RS Stock No.:
- 135-0579
- Mfr. Part No.:
- THM 6-4811
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)**
$667.28
(exc. GST)
$734.01
(inc. GST)
On back order for despatch 30/11/2025, delivery within 10 working days from despatch date.*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Tube(s) | Per Tube | Per unit** |
|---|---|---|
| 1 - 4 | $667.28 | $66.728 |
| 5 - 9 | $640.58 | $64.058 |
| 10 + | $613.90 | $61.39 |
**price indicative
- RS Stock No.:
- 135-0579
- Mfr. Part No.:
- THM 6-4811
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 36 → 75 V dc | |
| Power Rating | 6W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 1.2A | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP-24 | |
| Isolation Voltage | 5kV ac | |
| Length | 31.8mm | |
| Depth | 10.2mm | |
| Width | 20.3mm | |
| Series | THM 6 | |
| Load Regulation | 0.002 | |
| Maximum Temperature | +90°C | |
| Minimum Temperature | -40°C | |
| Medical Approved | Yes | |
| Efficiency | 86.5% | |
| Standards Met | ANSI/AAMI ES60601-1:2005/(R)2012, CB Scheme IEC 606010-1, cULus Recognised, ES60601-1, IEC/EN 60601-1 | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 36 → 75 V dc | ||
Power Rating 6W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 1.2A | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP-24 | ||
Isolation Voltage 5kV ac | ||
Length 31.8mm | ||
Depth 10.2mm | ||
Width 20.3mm | ||
Series THM 6 | ||
Load Regulation 0.002 | ||
Maximum Temperature +90°C | ||
Minimum Temperature -40°C | ||
Medical Approved Yes | ||
Efficiency 86.5% | ||
Standards Met ANSI/AAMI ES60601-1:2005/(R)2012, CB Scheme IEC 606010-1, cULus Recognised, ES60601-1, IEC/EN 60601-1 | ||
