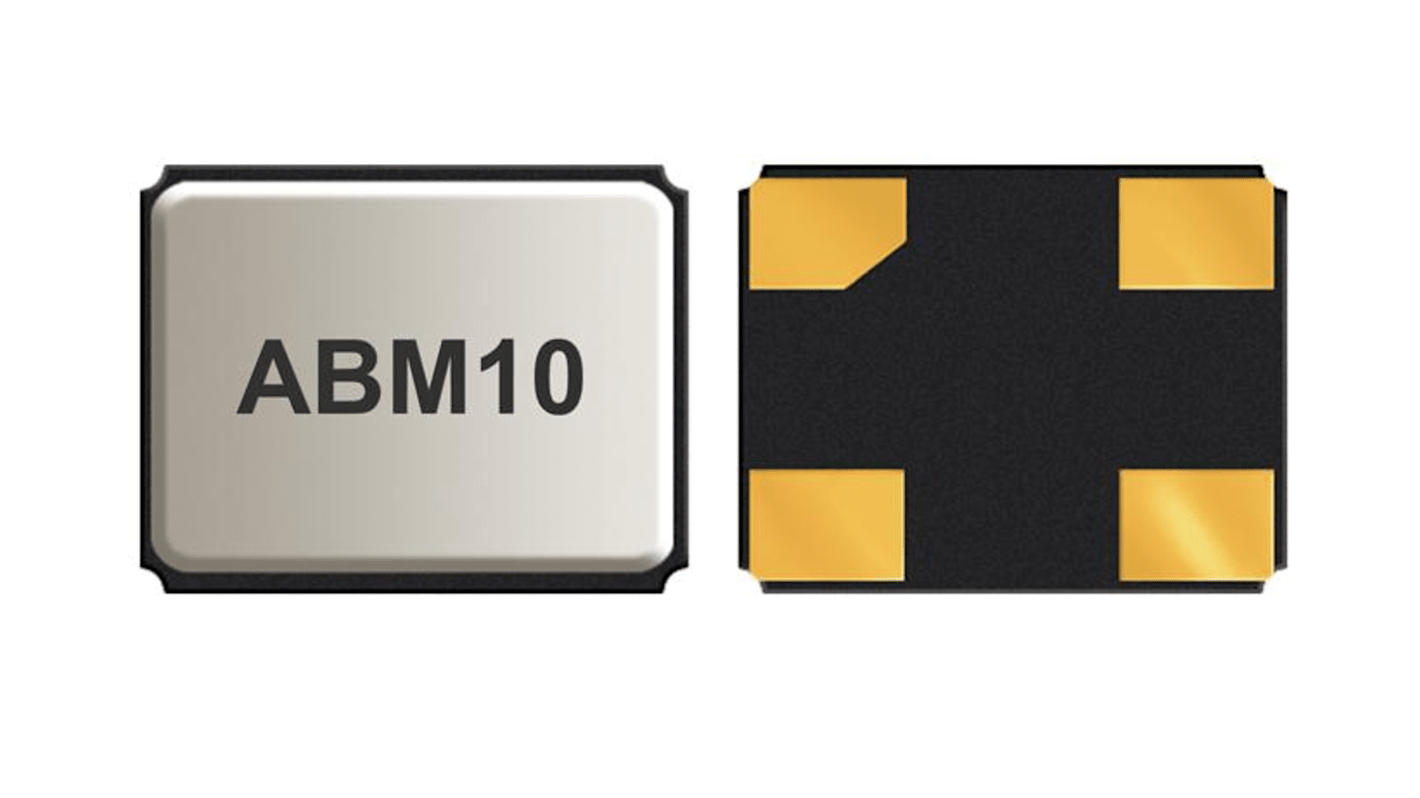

Abracon 24MHz Crystal ±10ppm ABM10W 4-Pin 2.5 x 2.0 x 0.6mm
- RS Stock No.:
- 240-3414
- Mfr. Part No.:
- ABM10W-24.0000MHZ-8-D1X-T3
- Brand:
- Abracon
2975 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 25)
$0.811
(exc. GST)
$0.892
(inc. GST)
| Units | Per unit | Per Pack* |
| 25 - 25 | $0.811 | $20.275 |
| 50 - 75 | $0.796 | $19.90 |
| 100 - 225 | $0.782 | $19.55 |
| 250 - 975 | $0.768 | $19.20 |
| 1000 + | $0.754 | $18.85 |
| *price indicative | ||
- RS Stock No.:
- 240-3414
- Mfr. Part No.:
- ABM10W-24.0000MHZ-8-D1X-T3
- Brand:
- Abracon
Technical data sheets
Legislation and Compliance
Product Details
The Abracon ABM10W series is low profile quartz crystal are ideally suited for height constrained designs and can be used in applications like Bluetooth/Bluetooth low energy, wireless modules, ultra low power MCU etc.
Optimized for energy saving wearables and IoT applications
Plated at exceptionally low plating capacitance, as low as 4pF, with optimized ESR
0.6 mm max height ideally suited for height constrained designs
Seam sealed for long term reliability
Plated at exceptionally low plating capacitance, as low as 4pF, with optimized ESR
0.6 mm max height ideally suited for height constrained designs
Seam sealed for long term reliability
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Standard Frequency | 24MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 8pF |
| Package Type | ABM10W |
| Pin Count | 4 |
| Dimensions | 2.5 x 2.0 x 0.6mm |
| Frequency Tolerance | ±10ppm |
