Abracon 32.768 kHz Crystal Unit ±30 ppm Surface Mount 4-Pin 2.5 mm 8 mm 3.8mm
- RS Stock No.:
- 171-2835
- Mfr. Part No.:
- ABS25-32.768KHZ-T
- Brand:
- Abracon

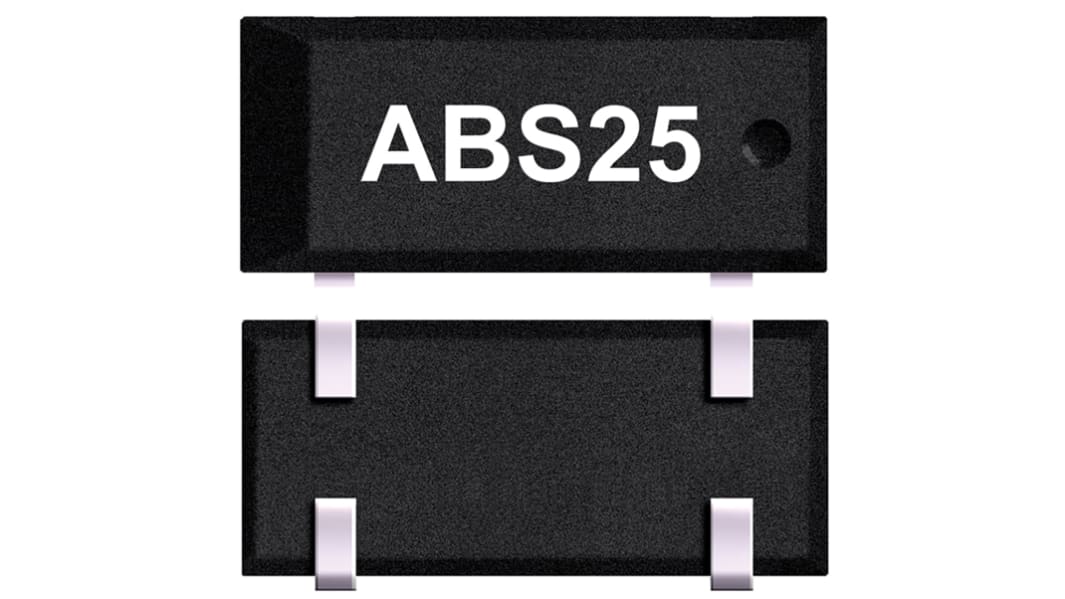

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 20 units)*
$12.44
(exc. GST)
$13.68
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- 16,520 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 - 740 | $0.622 | $12.44 |
| 760 - 1480 | $0.606 | $12.12 |
| 1500 + | $0.597 | $11.94 |
*price indicative
- RS Stock No.:
- 171-2835
- Mfr. Part No.:
- ABS25-32.768KHZ-T
- Brand:
- Abracon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Standard Frequency | 32.768kHz | |
| Product Type | Crystal Unit | |
| Mount Type | Surface | |
| Load Capacitance | 12.5pF | |
| Package Type | Surface Mount | |
| Packaging | Tape & Reel | |
| Pin Count | 4 | |
| Length | 8mm | |
| Width | 3.8mm | |
| Height | 2.5mm | |
| Frequency Tolerance | ±30 ppm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series Resistance | 50kΩ | |
| Standards/Approvals | RoHS, REACH | |
| Series | ABS25 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Standard Frequency 32.768kHz | ||
Product Type Crystal Unit | ||
Mount Type Surface | ||
Load Capacitance 12.5pF | ||
Package Type Surface Mount | ||
Packaging Tape & Reel | ||
Pin Count 4 | ||
Length 8mm | ||
Width 3.8mm | ||
Height 2.5mm | ||
Frequency Tolerance ±30 ppm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series Resistance 50kΩ | ||
Standards/Approvals RoHS, REACH | ||
Series ABS25 | ||
Automotive Standard No | ||
Built-in load capacitors
IR reflow capable
Low resonant impedance
Remote controls, Microprocessor clocks, Mobile phones, DVD & CD-Roms, Electric appliances
Consumer electronics
