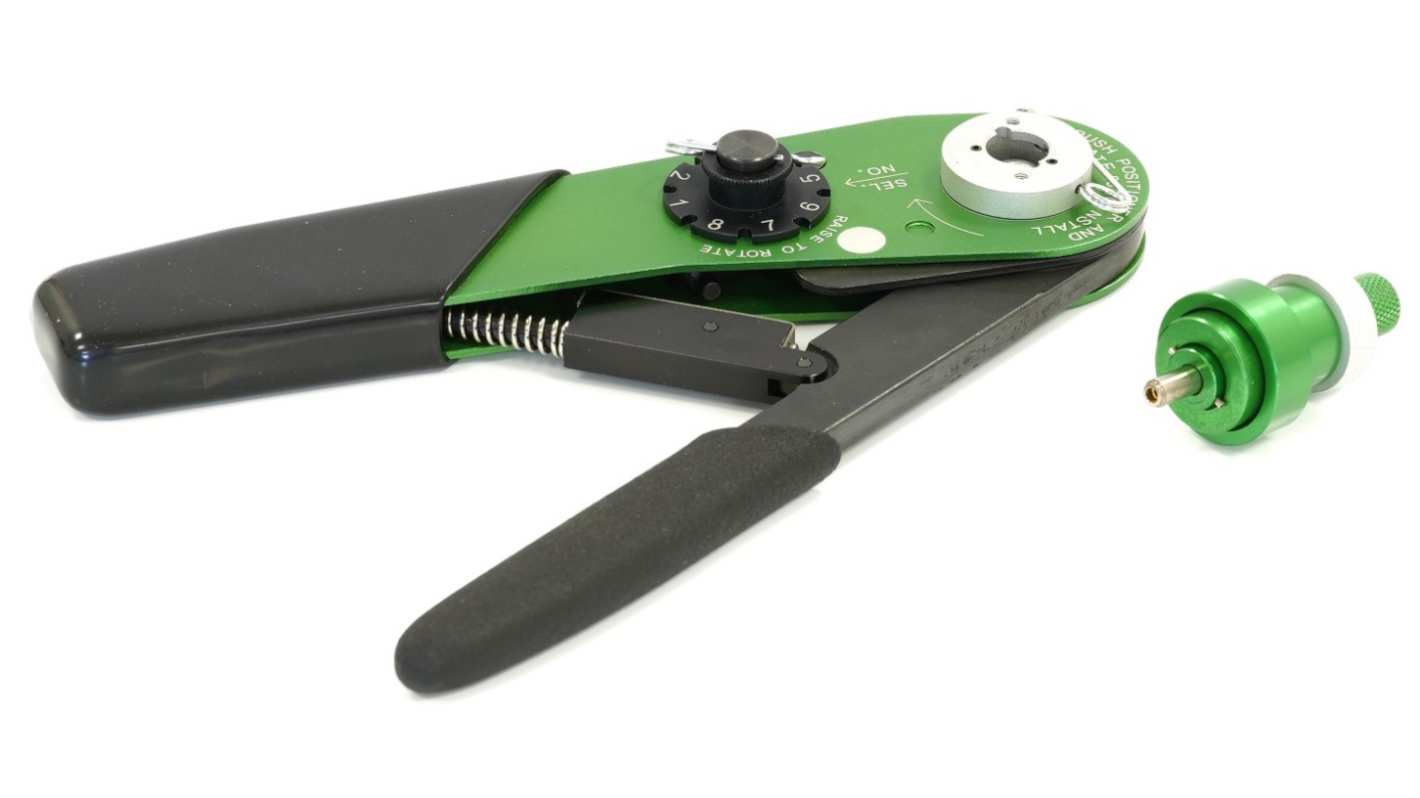

RS PRO Hand Ratcheting Crimp Tool for Crimp Contacts, 00.9 → 0.82mm² Wire
- RS Stock No.:
- 251-7936
- Brand:
- RS PRO
Available for back order.
Price (ex. GST) Each
$1,218.92
(exc. GST)
$1,340.81
(inc. GST)
Units | Per unit |
|---|---|
| 1 + | $1,218.92 |
- RS Stock No.:
- 251-7936
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS PRO Ratchet Hand Crimping Tool for 5A Contacts (28 to 18 AWG)
The RS PRO Hand Crimping tool is a hard wearing and ratchet crimp tool designed to work with the RS PRO range of heavy-duty 5A crimps and wire sizes of 28 to 18 AWG.
Designed to work via compression fitting the RS PRO 5A crimper features a heavy duty Die Cast Aluminium build with a corrosion resistant powder coating and Galvanised Iron levers for a professional and high-quality product fit for demanding applications and environments.
The RS PRO heavy-duty wire crimping tool is easily adjustable utilising a simple turn dial and comes complete with a locator positioner for further adjustments to the frame size to enable the crimping of larger wire sizes.
Features and benefits:
- Ratchet crimp tool
- 8 crimp positions
- Supplied with locator
- Hexagon crimp profile
- Die cast Aluminium construction
- Length of 169mm
- Width of 106mm
- Suitable for wire sizes 00.9mm to 0.82 mm²
- Suitable for wire sizers 28 AWG to 18 AWG
- IP65 protection from dust and resistance to water ingress
Suitable RS PRO Crimps:
Silver Plated 5A Crimps
Female 0.09-0.25 mm² / 28 -24 AWG (208-4702)
Female 0.25-0.33 mm² / 26 -22 AWG (208-4703)
Female 0.33-0.52 mm² / 22 -20 AWG (208-4704)
Female 0.52-0.82 mm² / 22 -18 AWG (208-4705)
Male 0.09-0.25 mm² / 28 -24 AWG (208-4706)
Male 0.25-0.33 mm² / 26 -22 AWG (208-4708)
Male 0.33-0.52 mm² / 22 -20 AWG (208-4709)
Male 0.52-0.82 mm² / 22 -18 AWG (208-4710)
Female 0.25-0.33 mm² / 26 -22 AWG (208-4703)
Female 0.33-0.52 mm² / 22 -20 AWG (208-4704)
Female 0.52-0.82 mm² / 22 -18 AWG (208-4705)
Male 0.09-0.25 mm² / 28 -24 AWG (208-4706)
Male 0.25-0.33 mm² / 26 -22 AWG (208-4708)
Male 0.33-0.52 mm² / 22 -20 AWG (208-4709)
Male 0.52-0.82 mm² / 22 -18 AWG (208-4710)
Gold Plated 5A Crimps
Female 0.09-0.25 mm² / 28 -24 AWG (208-4694)
Female 0.25-0.33 mm² / 26 -22 AWG (208-4695)
Female 0.33-0.52 mm² / 22 -20 AWG (208-4696)
Female 0.52-0.82 mm² / 22 -18 AWG (208-4697)
Male 0.09-0.25 mm² / 28 -24 AWG (208-4698)
Male 0.25-0.33 mm² / 26 -22 AWG (208-4699)
Male 0.33-0.52 mm² / 22 -20 AWG (208-4700)
Male 0.52-0.82 mm² / 22 -18 AWG (208-4701)
Female 0.25-0.33 mm² / 26 -22 AWG (208-4695)
Female 0.33-0.52 mm² / 22 -20 AWG (208-4696)
Female 0.52-0.82 mm² / 22 -18 AWG (208-4697)
Male 0.09-0.25 mm² / 28 -24 AWG (208-4698)
Male 0.25-0.33 mm² / 26 -22 AWG (208-4699)
Male 0.33-0.52 mm² / 22 -20 AWG (208-4700)
Male 0.52-0.82 mm² / 22 -18 AWG (208-4701)
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Series | TL |
| Product Type | Crimp Tool |
| Operation | Hand |
| For Use With | Crimp Contacts |
| Wire Size mm² | 00.9 → 0.82mm² |
| Wire Size AWG | 28 → 18AWG |
| Ratcheting | Yes |
| Crimp Profile | Hexagon |
| Overall Length | 169 mm |
