- RS Stock No.:
- 228-5124
- Mfr. Part No.:
- 7TCA297020R0292 PHT0610
- Brand:
- Kopex
On back order for despatch 20/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) 1 Reel of 10 Metre(s)
$1,122.27
(exc. GST)
$1,234.50
(inc. GST)
Reel(s) | Per Reel | Per Metre* |
1 - 49 | $1,122.27 | $112.227 |
50 + | $1,094.78 | $109.478 |
*price indicative |
- RS Stock No.:
- 228-5124
- Mfr. Part No.:
- 7TCA297020R0292 PHT0610
- Brand:
- Kopex
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

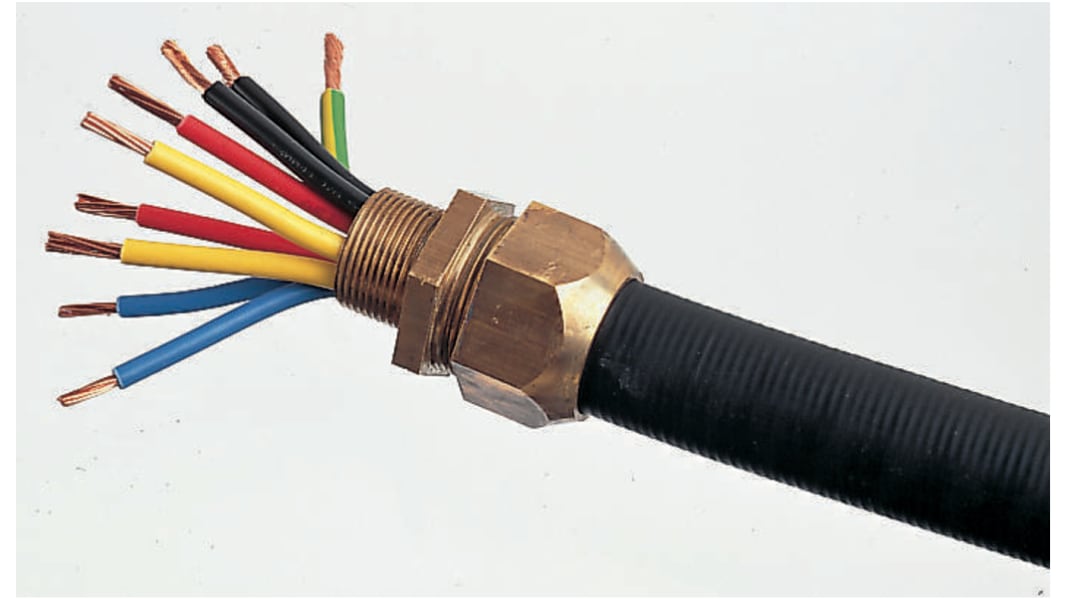

Type T Screenforce (LFH) Conduit
These robust black pliable conduits give excellent EMI screening, mechanical protection, chemical resistance and a range of operating temperatures to suit your requirements. Constructed from a double layer of lead coated steel with a Kraft paper inner, they offer Limited Fire Hazard (LFH) low toxicity and have the added benefit of a zero halogen cover.
IP67 (with Fittings)
Crush resistant to BS4607 Pt. 3
Crush resistant to BS4607 Pt. 3
LUL approved (London Underground)
-25 to +90°C operating temperature
-25 to +90°C operating temperature
EMI Screened
In line with European Directives all equipment/installations should neither produce electromagnetic interference (EMI) or be affected by it. Cables in such cases should have an effective screen to protect against the effects of EMI. These conduits can contribute significantly to the EMI screen requirements of installations covered by the EMC Directive.
Specifications
Attribute | Value |
---|---|
Nominal Diameter | 32mm |
Material | Steel |
Conduit Type | Pliable |
Outer Diameter | 34mm |
Colour | Black |
Interior Diameter | 26.7mm |
Length | 10m |
IP Rating | IP67 |
Coating Material | Kraft Paper & Low Fire Hazard Thermoplastic |
Maximum Operating Temperature | +90°C |
Series | PHT |
Minimum Operating Temperature | -25°C |
Minimum Bend Radius | 65 mm |
