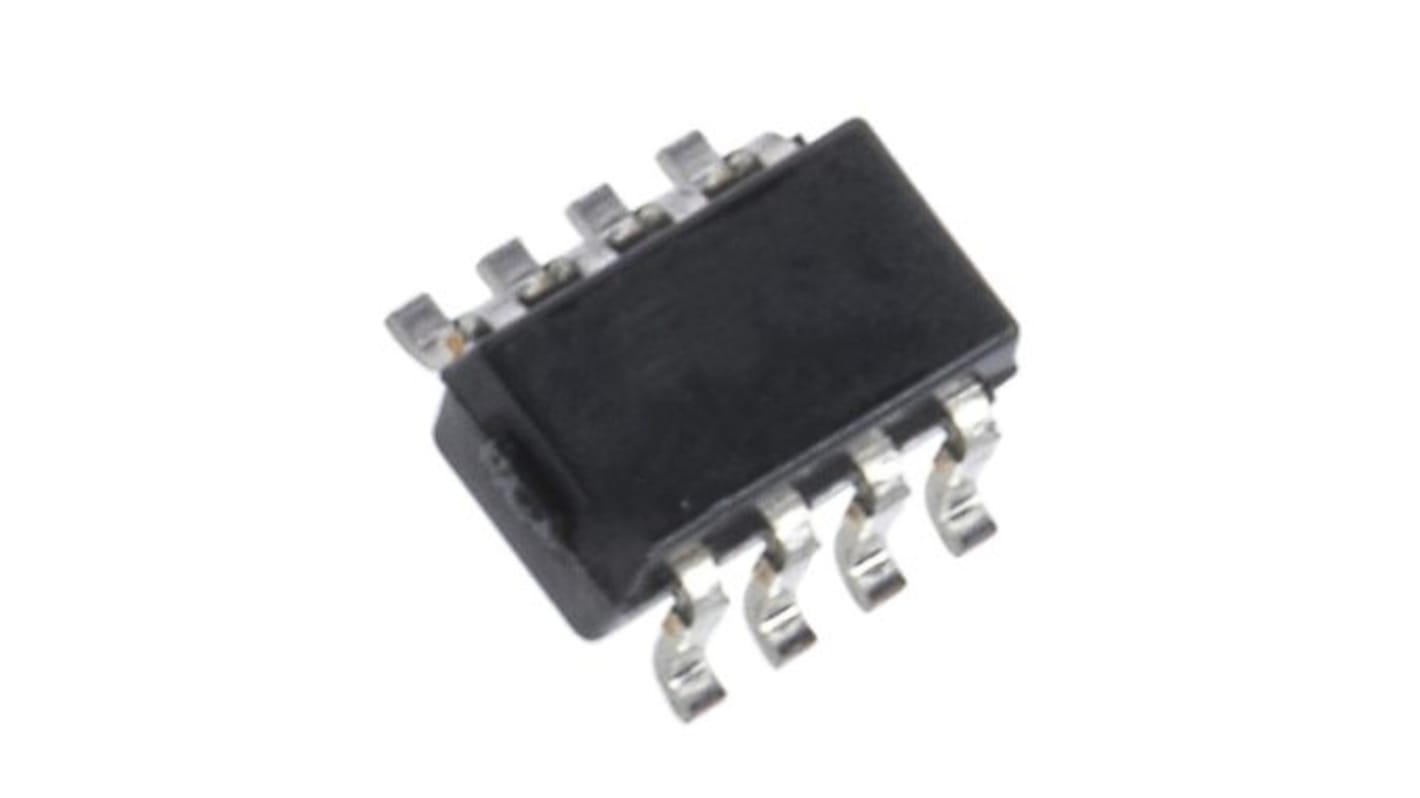

MAX9020EKA+T Maxim Integrated, Dual Comparator, Open Drain O/P, 1.8 → 5.5 V 8-Pin SOT-23
- RS Stock No.:
- 190-6601
- Mfr. Part No.:
- MAX9020EKA+T
- Brand:
- Maxim Integrated
1060 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (In a Pack of 10)
$2.25
(exc. GST)
$2.47
(inc. GST)
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | $2.25 | $22.50 |
*price indicative
- RS Stock No.:
- 190-6601
- Mfr. Part No.:
- MAX9020EKA+T
- Brand:
- Maxim Integrated
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Ultra-Low Total Supply Current
0.85μA (MAX9019/MAX9020)
1.0μA (MAX9015A/MAX9016A)
1.2μA (MAX9017/MAX9018)
Guaranteed Operation Down to 1.8V
Precision VOS < 5mV (max)
Internal 1.236V ±1% Reference (A Grade)
Input Voltage Range Extends 200mV Beyond-the-Rails
CMOS Push-Pull Output with ±6mA Drive Capability (MAX9015/MAX9017/MAX9019)
Open-Drain Output Versions Available (MAX9016/MAX9018/MAX9020)
Crowbar-Current-Free Switching
Internal 4mV Hysteresis for Clean Switching
No Phase Reversal for Overdriven Inputs
Dual Versions in Space-Saving 8-Pin SOT23 Package
Applications
2-Cell Battery Monitoring/Management
Discriminators
Medical Instruments
Mobile Communications
Notebooks and PDAs
Sensing at Ground or Supply Line
Telemetry and Remote Systems
Threshold Detectors
Ultra-Low Power Systems
Window Detectors
0.85μA (MAX9019/MAX9020)
1.0μA (MAX9015A/MAX9016A)
1.2μA (MAX9017/MAX9018)
Guaranteed Operation Down to 1.8V
Precision VOS < 5mV (max)
Internal 1.236V ±1% Reference (A Grade)
Input Voltage Range Extends 200mV Beyond-the-Rails
CMOS Push-Pull Output with ±6mA Drive Capability (MAX9015/MAX9017/MAX9019)
Open-Drain Output Versions Available (MAX9016/MAX9018/MAX9020)
Crowbar-Current-Free Switching
Internal 4mV Hysteresis for Clean Switching
No Phase Reversal for Overdriven Inputs
Dual Versions in Space-Saving 8-Pin SOT23 Package
Applications
2-Cell Battery Monitoring/Management
Discriminators
Medical Instruments
Mobile Communications
Notebooks and PDAs
Sensing at Ground or Supply Line
Telemetry and Remote Systems
Threshold Detectors
Ultra-Low Power Systems
Window Detectors
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Comparator Type | Nano Power |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Power Supply Type | Dual, Single |
| Output Type | Open Drain |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Dimensions | 3 x 1.75 x 1.3mm |
| Length | 3mm |
| Width | 1.75mm |
| Height | 1.3mm |
| Typical PSRR | 0.1mV/V |
| Maximum Operating Temperature | +85 °C |
| Automotive Standard | AEC-Q100 |
| Minimum Operating Temperature | -40 °C |
