MAX9064EUK+T Maxim Integrated 1-Channel Comparator Open Drain, Push Pull O/P, 15 μs 5.5 V 1 V 5-Pin SOT-23
- RS Stock No.:
- 190-6568
- Mfr. Part No.:
- MAX9064EUK+T
- Brand:
- Maxim Integrated

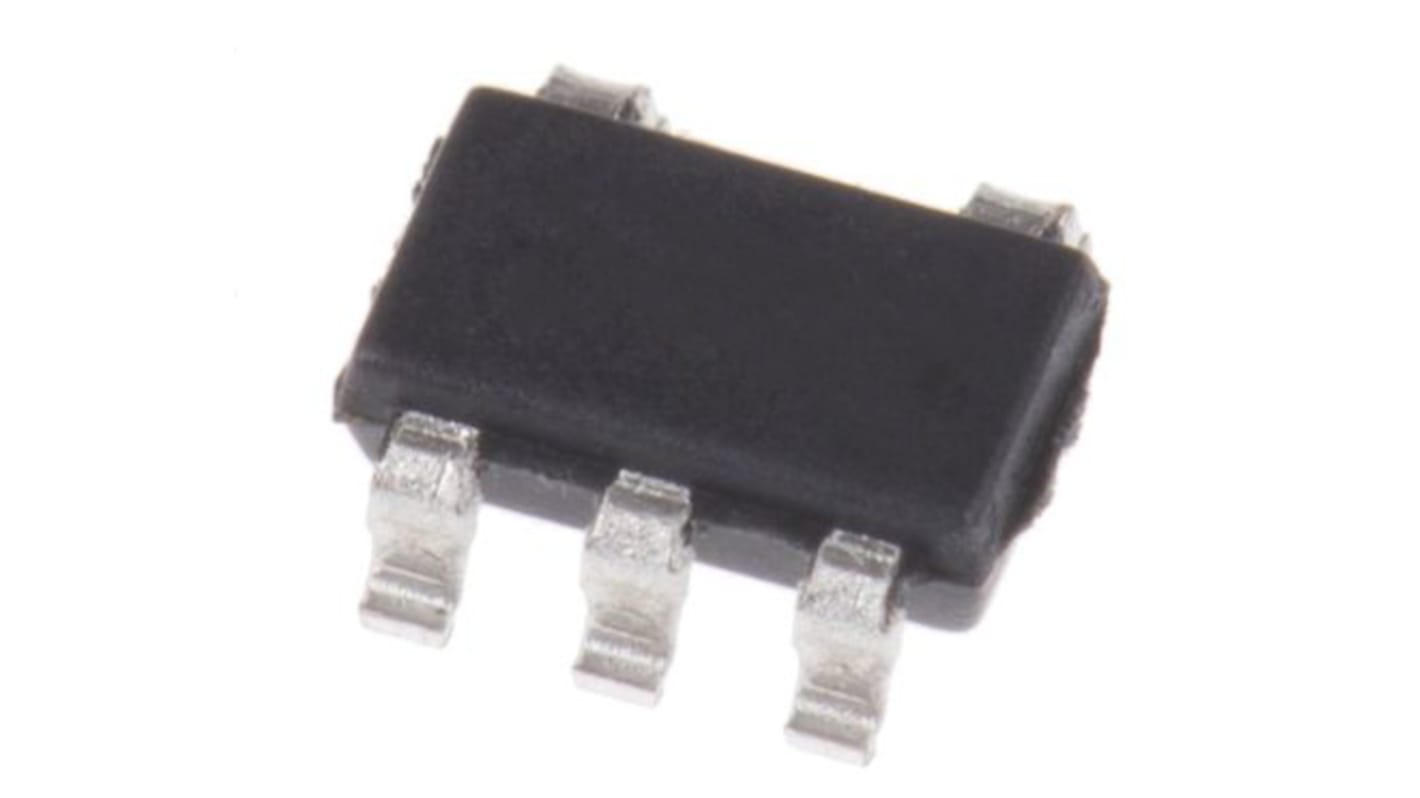

This image is representative of the product range
Subtotal (1 pack of 10 units)*
$17.44
(exc. GST)
$19.18
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Last RS stock
- Final 7,620 unit(s), ready to ship from another location
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | $1.744 | $17.44 |
*price indicative
- RS Stock No.:
- 190-6568
- Mfr. Part No.:
- MAX9064EUK+T
- Brand:
- Maxim Integrated
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Product Type | Comparator | |
| Comparator Type | Nano Power | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Output Type | Open Drain, Push Pull | |
| Number of Channels | 1 | |
| Typical Response Time | 15μs | |
| Pin Count | 5 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 1V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.3mm | |
| Standards/Approvals | No | |
| Length | 3mm | |
| Width | 1.75 mm | |
| Automotive Standard | No | |
| Supply Current | 1.1μA | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Product Type Comparator | ||
Comparator Type Nano Power | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Output Type Open Drain, Push Pull | ||
Number of Channels 1 | ||
Typical Response Time 15μs | ||
Pin Count 5 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 1V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 1.3mm | ||
Standards/Approvals No | ||
Length 3mm | ||
Width 1.75 mm | ||
Automotive Standard No | ||
Supply Current 1.1μA | ||
- COO (Country of Origin):
- TH
Tiny 1mm x 1mm x 0.6mm 4-Bump UCSP
Footprint = Two 0402 Resistors
Also Available in a 5-Pin SOT23 Package
Ultra-Low Operating Current (100nA max)
Input Voltage Range = -0.3V to +5.5V
External REF Range = 0.9V to 5.5V (MAX9060/MAX9061)
Internal REF Voltage = 0.2V (MAX9062/MAX9063/MAX9064)
15μs Propagation Delay
-40°C to +85°C Extended Temperature Range
Applications
Cell Phones
Electronic Toys
Notebook Computers
Portable Media Players
Portable Medical Devices
