MAX985EUK+T Maxim Integrated 1-Channel Comparator Push Pull O/P, 300 ns 5.5 V 2.5 V 5-Pin SOT-23

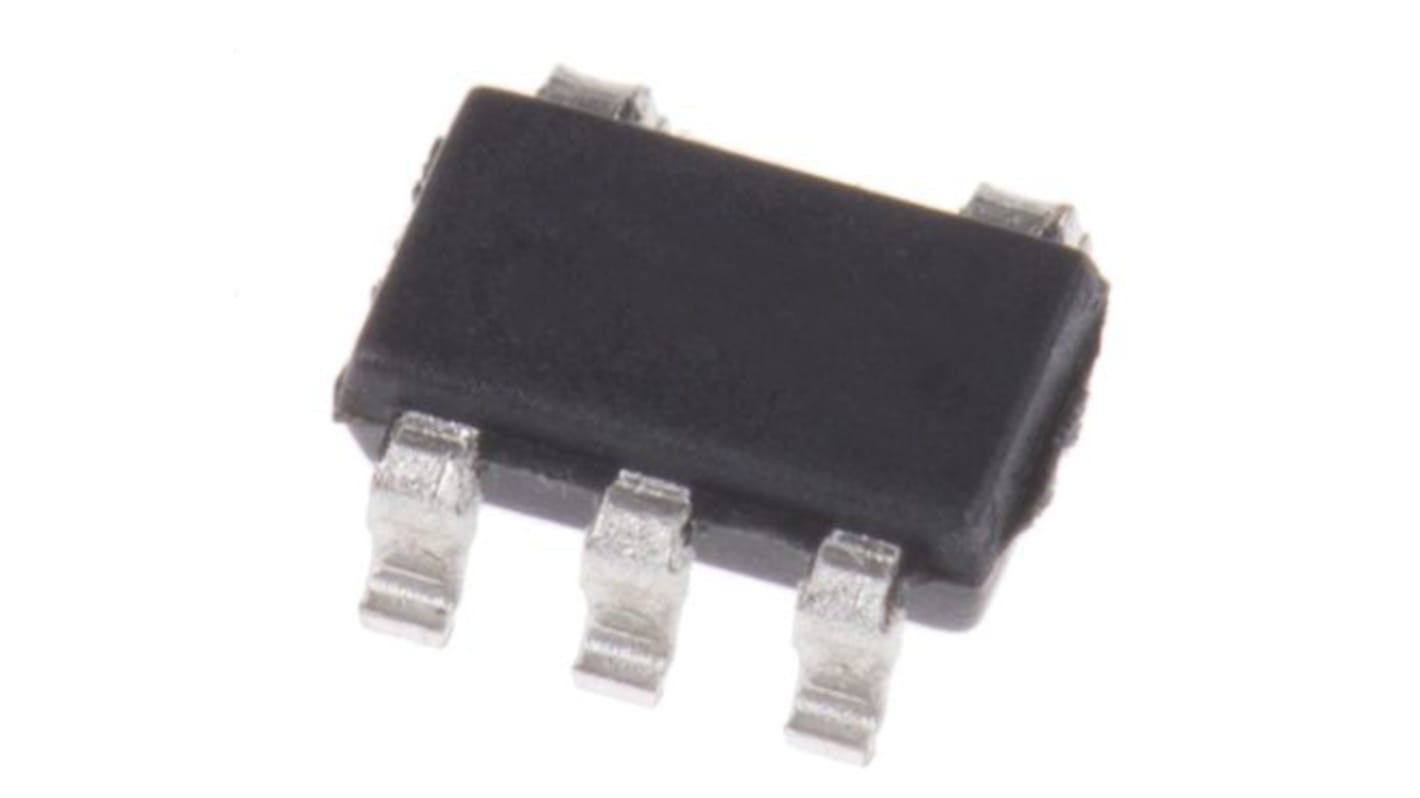

This image is representative of the product range

View all Comparators

Subtotal (1 pack of 5 units)*

$42.29

(exc. GST)

$46.52

(inc. GST)

Add to Basket
Select or type quantity
Last RS stock
  • Final 8,200 unit(s), ready to ship from another location
Units
Per unit
Per Pack*
5 +$8.458$42.29

*price indicative

Packaging Options:
RS Stock No.:
190-6649
Mfr. Part No.:
MAX985EUK+T
Brand:
Maxim Integrated
Find similar products by selecting one or more attributes.
Select all

Brand

Maxim Integrated

Comparator Type

Micro Power Comparator

Product Type

Comparator

Mount Type

Surface

Package Type

SOT-23

Output Type

Push Pull

Number of Channels

1

Typical Response Time

300ns

Pin Count

5

Maximum Supply Voltage

5.5V

Minimum Supply Voltage

2.5V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Height

1.3mm

Standards/Approvals

No

Series

MAX

Width

1.75 mm

Length

3mm

Automotive Standard

No

Supply Current

24μA

COO (Country of Origin):
TH
11μA Quiescent Supply Current

2.5V to 5.5V Single-Supply Operation

Common-Mode Input Voltage Range Extends 250mV Beyond the Rails

300ns Propagation Delay

Push-Pull Output Stage Sinks and Sources 8mA Current (MAX985/MAX989/MAX993)

Open-Drain Output Voltage Extends Beyond VCC (MAX986/MAX990/MAX994)

Unique Output Stage Reduces Output Switching Current, Minimizing Overall Power Consumption

80μA Supply Current at 1MHz Switching Frequency

No Phase Reversal for Overdriven Inputs

Available in Space-Saving Packages:

UCSP (MAX985)

SOT23 (MAX985/MAX986/MAX989/MAX990)

μMAX® (MAX989/MAX990)

Applications

Digital-Line Receivers

Ground/Supply Sensing

IR Receivers

Level Translators

Mobile Communications

Portable Battery-Powered Systems

Threshold Detectors

Window Comparators

Zero-Crossing Detectors
