- RS Stock No.:
- 208-8900
- Mfr. Part No.:
- MH113-MH1RP-01BJ1-0152
- Brand:
- Samtec
2 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$22.24
(exc. GST)
$24.46
(inc. GST)
Units | Per unit |
1 - 9 | $22.24 |
10 - 49 | $21.58 |
50 - 99 | $20.92 |
100 - 249 | $20.47 |
250 + | $20.02 |
- RS Stock No.:
- 208-8900
- Mfr. Part No.:
- MH113-MH1RP-01BJ1-0152
- Brand:
- Samtec
Technical data sheets
Legislation and Compliance
Product Details

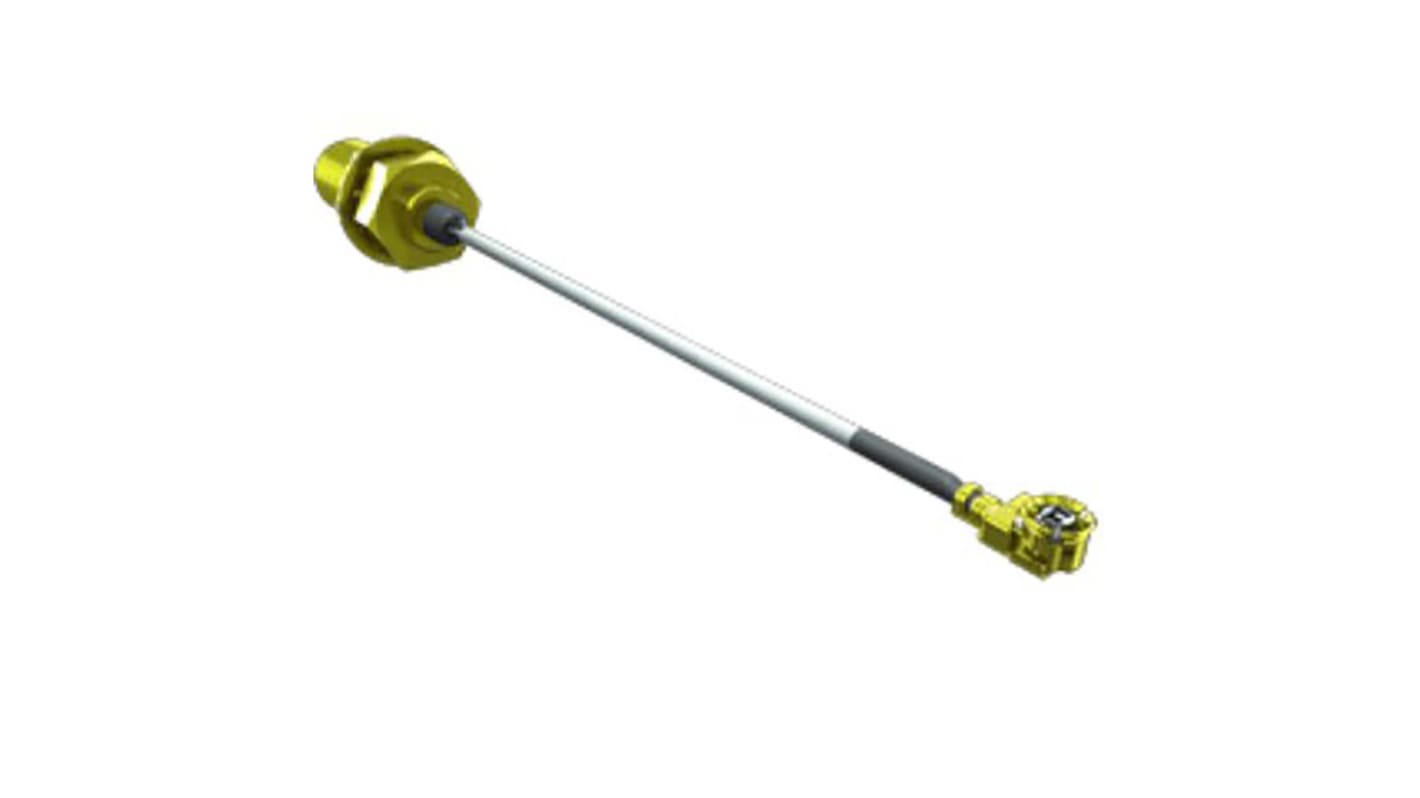

The Samtec micro high frequency RF cable assembly, 1.13 mm DIA coaxial cable has 50 ohm impedance and give 152 mm of length.
Frequency range 0 to 6 GHz
Operating temperature -40 °C to +90 °C
Operating temperature -40 °C to +90 °C
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Connector 1 | MHF1 |
Terminated/Unterminated | Terminated |
Connector 2 | SMA |
Coaxial Type | RF |
Connector 1 Gender | Male |
Outer Diameter | 1.13mm |
Characteristic Impedance | 50 Ω |
Attenuation | 2 dB |
Length | 152mm |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +90°C |
Operating Temperature Range | -40 → +90 °C |
Conductor Material | Silver Plated Copper |
Series | MH113 |
Capacitance | 95pF/m |
Sheath Material | FEP |
Shielding | Tinned Copper |
