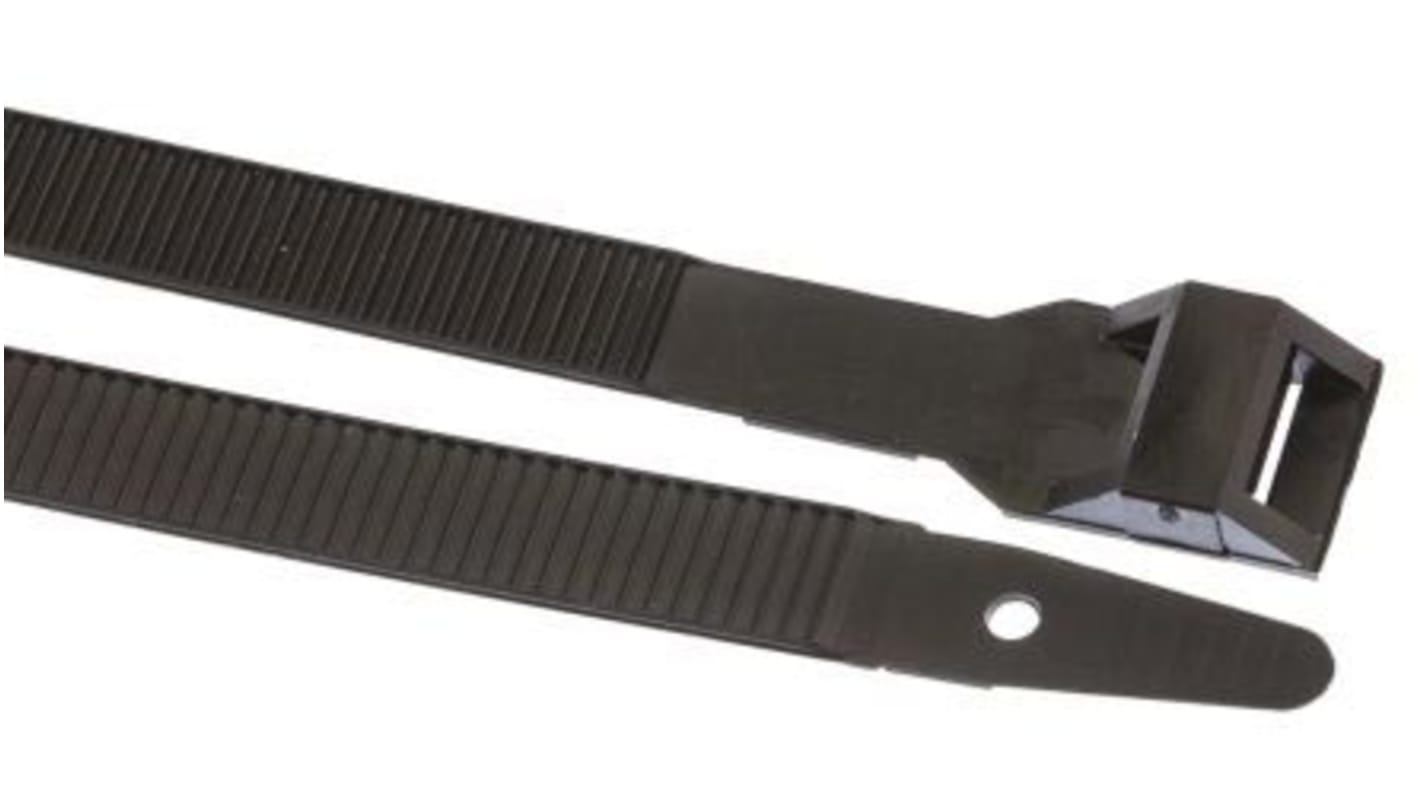

HellermannTyton Cable Tie, Outside Serrated, 752 mm x 9 mm, Black Polyamide 66
- RS Stock No.:
- 134-5426
- Mfr. Part No.:
- 112-00034 LPH750-PA66HIR(S)-BK
- Brand:
- HellermannTyton
Bulk discount available
Subtotal (1 box of 100 units)*
$216.53
(exc. GST)
$238.18
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 - 14 | $216.53 | $2.165 |
| 15 - 49 | $208.96 | $2.09 |
| 50 + | $202.68 | $2.027 |
*price indicative
- RS Stock No.:
- 134-5426
- Mfr. Part No.:
- 112-00034 LPH750-PA66HIR(S)-BK
- Brand:
- HellermannTyton
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HellermannTyton | |
| Product Type | Cable Tie | |
| Length | 752mm | |
| Width | 9 mm | |
| Colour | Black | |
| Material | Polyamide 66 | |
| Sub Type | Outside Serrated | |
| UV Resistant | Yes | |
| Fire Behaviour | Halogen Free | |
| Tensile Strength | 540N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | LPH | |
| Standards/Approvals | UL | |
| Maximum Bundle Diameter | 220mm | |
| Select all | ||
|---|---|---|
Brand HellermannTyton | ||
Product Type Cable Tie | ||
Length 752mm | ||
Width 9 mm | ||
Colour Black | ||
Material Polyamide 66 | ||
Sub Type Outside Serrated | ||
UV Resistant Yes | ||
Fire Behaviour Halogen Free | ||
Tensile Strength 540N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series LPH | ||
Standards/Approvals UL | ||
Maximum Bundle Diameter 220mm | ||
- COO (Country of Origin):
- GB
LPH Series Low Profile Cable Ties
Non-releasable cable ties manufactured from black nylon, with high tensile strength. Outside serration ensures no damage to insulation of cable. LPH Series low profile head cable ties offer benefits including high tensile strength with low pressure on wire.
Features and Benefits
9 mm wide strap with outside serration
Low profile head with one or two bridges
High tensile strength
Insulation damage protection
Broad contact area
Possible use in restricted area
Suitable cable tie gun see RS Stock No. 608-531 .
