- RS Stock No.:
- 175-3760
- Mfr. Part No.:
- MNPT3/4 NC080
- Brand:
- Alpha Wire
160 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Bag of 10)
$38.625
(exc. GST)
$42.487
(inc. GST)
Units | Per unit | Per Bag* |
10 + | $38.625 | $386.25 |
*price indicative |
- RS Stock No.:
- 175-3760
- Mfr. Part No.:
- MNPT3/4 NC080
- Brand:
- Alpha Wire
Technical data sheets
Legislation and Compliance
Product Details
Alpha Wire High-Quality Cable Glands
Alpha Wire offer a range of cable glands, also known as cable fittings, ideal for all of your strain relief needs. Cable glands fortify systems and protect your infrastructure against wear and tear. Providing strain relief for standard and flex focused applications. The cable glands are available in NPT, metric and PG threading options with a temperature rating up to 150° C.
The range of plastic cable glands from Alpha Wire include, threaded glands and flexible glands, both supplied with a gasket and locknut. Alpha Wire also provide hole plugs for sealing housing when no cable gland is used. The metal cable glands are made from brass with a rubber seal and NBR O-ring.
The range of plastic cable glands from Alpha Wire include, threaded glands and flexible glands, both supplied with a gasket and locknut. Alpha Wire also provide hole plugs for sealing housing when no cable gland is used. The metal cable glands are made from brass with a rubber seal and NBR O-ring.
Features and Benefits
IP68 up to 5 bar rating for 30 min
Large clamping range
Robust rubber seals
Up to +150°C temperature rating
Flammability: V2 (According to UL94)
Large clamping range
Robust rubber seals
Up to +150°C temperature rating
Flammability: V2 (According to UL94)
Product Application Information
Cable glands are watertight, dust resistant, dirt resistant and sand resistant (According to IP68). Cable glands can be used in telecommunications, control, instrumentation, data cables, and electrical power.
What is IP68?
The IP rating is a standard created by the IEC (International Electro-technical Commission). It determines whether a product is resistant to dirt, dust or fresh water. The first digit (6) indicates that the cable glands are resistant to harmful dust, and the second digit (8) indicates that the cable gland can be submerged beyond 1 metre under fresh water.
What is UL94?
UL94 is a flammability safety standard for plastic parts such as cable glands, designed to determine whether a flame will extinguish itself or spread once the material has been ignited. The V2 indicates that a flame will stop burning within 30 seconds on a vertical item such as a cable.

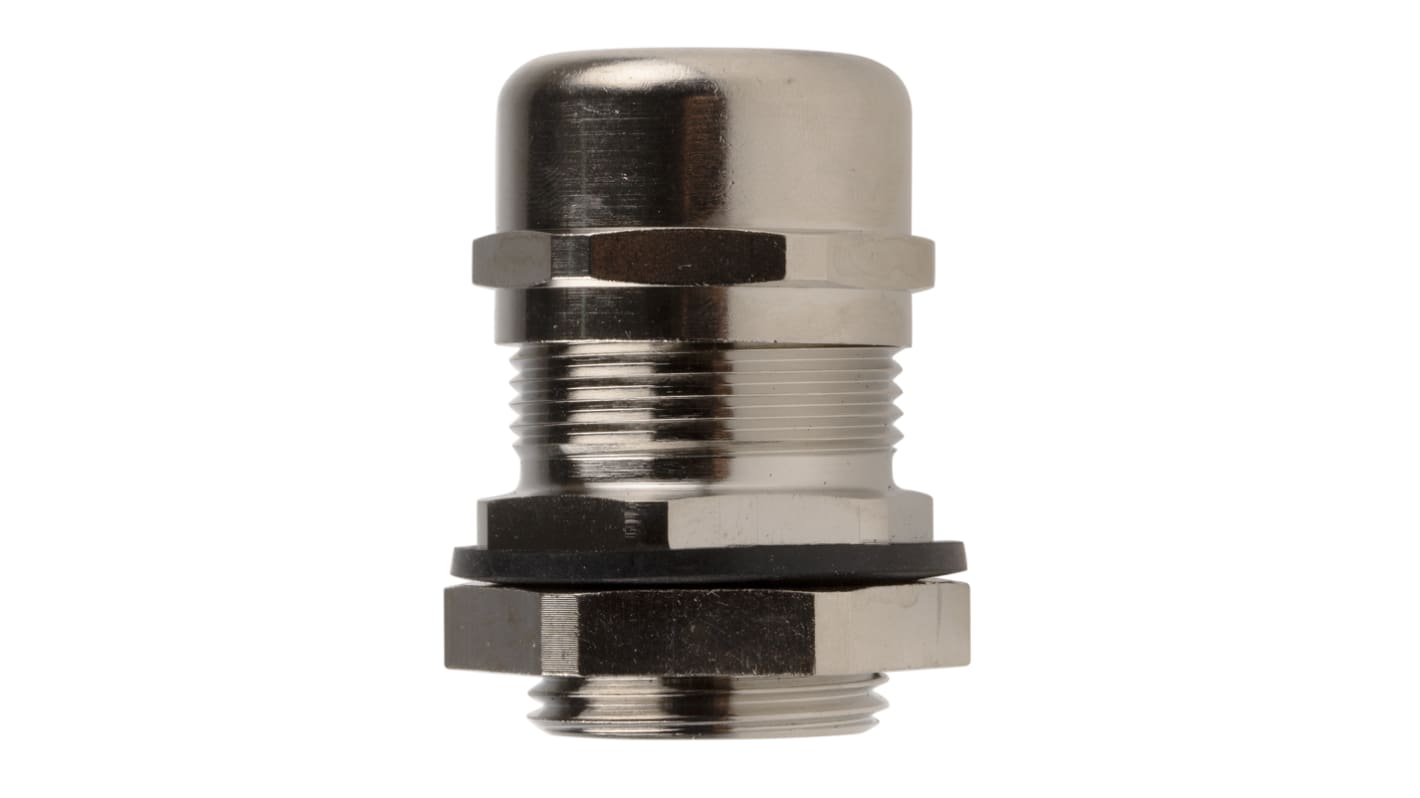

Alpha Wire FIT Cable Gland, Metallic, IP66, IP68 - MNPT3/4 NC080
This cable gland by Alpha Wire is a high-quality metallic product with self-extinguishing properties, suitable for various applications. With an IP66 and IP68 rating, this metal cable gland is designed to withstand extreme conditions, making it ideal for use in different environments.
Features & Benefits
• Self-extinguishing fire behavior for added safety
• IP66 and IP68 rated for protection against water and dust
• Metal construction for durability
• FIT series design for reliable performance
• NPT 3/4 thread size for easy installation
• Locknut included for secure fitting
• Wide operating temperature range from -30°C to +150°C
• Offers outstanding strain relief without twisting or damaging the cable
• IP66 and IP68 rated for protection against water and dust
• Metal construction for durability
• FIT series design for reliable performance
• NPT 3/4 thread size for easy installation
• Locknut included for secure fitting
• Wide operating temperature range from -30°C to +150°C
• Offers outstanding strain relief without twisting or damaging the cable
Applications
• Ideal for use in enclosures where cables enter or leave
• Suitable for a wide range of cable diameters
• Suitable for a wide range of cable diameters
Can it withstand high temperatures?
This cable gland is designed to operate in temperatures ranging from -30°C to +150°C, making it suitable for various environments.
Will it provide secure fitting for cables?
Yes, the included locknut ensures a secure and reliable fit for cables passing through the gland.
Is it suitable for outdoor use?
With its IP66 and IP68 rating, this cable gland is ideal for outdoor applications where protection against water and dust is essential.
Specifications
Attribute | Value |
---|---|
Thread Size | NPT 3/4in |
Maximum Cable Diameter | 18mm |
Minimum Cable Diameter | 13mm |
Material | Metal |
Colour | Metallic |
Series | FIT |
IP Rating | IP66, IP68 |
Locknut Included | Yes |
Fire Behaviour | Self-extinguishing |
Maximum Operating Temperature | +100 °C, +150°C |
Minimum Operating Temperature | -30 °C, -20°C |
