Nexperia, Bus Switch, 4 x 1:1, 20-Pin SSOP
- RS Stock No.:
- 816-0481P
- Mfr. Part No.:
- CBT3244AD,112
- Brand:
- Nexperia

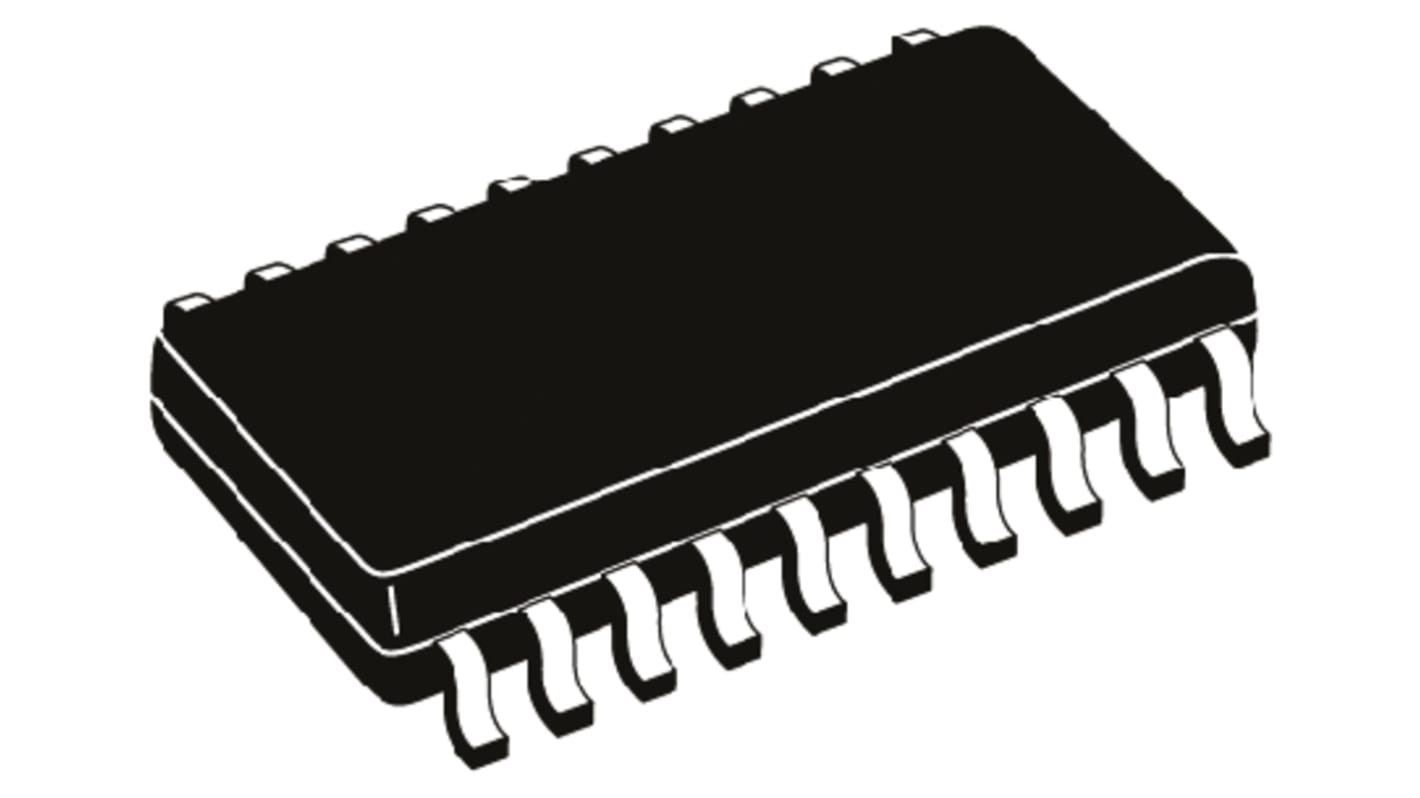

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 816-0481P
- Mfr. Part No.:
- CBT3244AD,112
- Brand:
- Nexperia
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | Bus Switch | |
| Logic Family | CBT | |
| Configuration | 4 x 1:1 | |
| Number of Elements per Chip | 2 | |
| Mount Type | Surface | |
| Maximum Quiescent Current | 3μA | |
| Package Type | SSOP | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Supply Voltage | 5.5V | |
| Pin Count | 20 | |
| Maximum On State Resistance | 15Ω | |
| Maximum High Level Output Current | 128mA | |
| Maximum Propagation Delay Time @ CL | 0.25ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Low Level Output Current | 128mA | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Height | 1.55mm | |
| Length | 8.8mm | |
| Series | CBT3244A | |
| Automotive Standard | No | |
| Bus Width | 8bit | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type Bus Switch | ||
Logic Family CBT | ||
Configuration 4 x 1:1 | ||
Number of Elements per Chip 2 | ||
Mount Type Surface | ||
Maximum Quiescent Current 3μA | ||
Package Type SSOP | ||
Minimum Supply Voltage 4.5V | ||
Maximum Supply Voltage 5.5V | ||
Pin Count 20 | ||
Maximum On State Resistance 15Ω | ||
Maximum High Level Output Current 128mA | ||
Maximum Propagation Delay Time @ CL 0.25ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Low Level Output Current 128mA | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Height 1.55mm | ||
Length 8.8mm | ||
Series CBT3244A | ||
Automotive Standard No | ||
Bus Width 8bit | ||
- COO (Country of Origin):
- TH
CBT Series Bus Switches, Nexperia
The CBT range of bus switches, from NXP, are high-speed TTL-compatible devices. Bus switches are low delay single transistor or transmission gate solutions for multiplexing data buses, hot swapping boards in backplanes, memory interleaving, signal conditioning and uni-direction level shifting.
Suitable applications include telecommunications infrastructure, mobile phones, uni-directional level shifting and industrial control.
