Texas Instruments BQ771605DPJT, Battery Fuel Gauge IC, 3 to 20 V, 14mA 8-Pin, WSON

RS Stock No.:: 168-4932
Mfr. Part No.:: BQ771605DPJT
Brand:: Texas Instruments

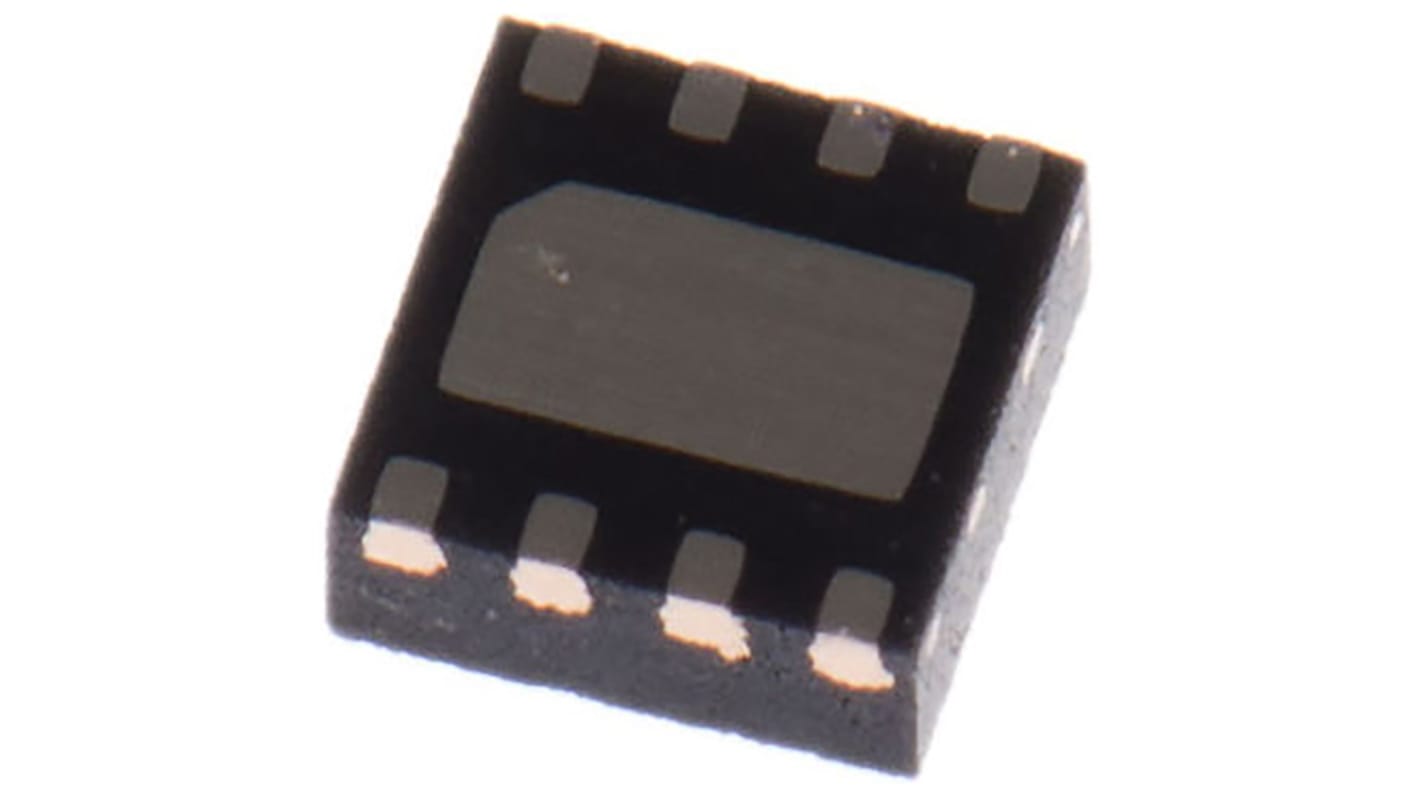

This image is representative of the product range

Price Each (On a Reel of 250)**

$1.20

(exc. GST)

$1.32

(inc. GST)

Available for back order.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $80.00 ex GST

Units	Per unit	Per Reel**
250 +	$1.20	$300.00

**price indicative

RS Stock No.:: 168-4932
Mfr. Part No.:: BQ771605DPJT
Brand:: Texas Instruments

COO (Country of Origin):: PH

Attribute	Value
Battery Type	Lithium-Ion
Mounting Type	Surface Mount
Package Type	WSON
IC Type	Battery Fuel Gauge IC
Pin Count	8
Typical Operating Supply Voltage	3 to 20 V
Dimensions	3.1 x 4.1 x 0.75mm
Length	3.1mm
Width	4.1mm
Height	0.75mm
Maximum Operating Temperature	+85 °C
Maximum Output Current	14 mA, 4.5mA
Maximum Output Voltage	400 mV
Minimum Operating Temperature	-40 °C
Minimum Output Current	500µA

Texas Instruments BQ771605DPJT, Battery Fuel Gauge IC, 3 to 20 V, 14mA 8-Pin, WSON

FREE delivery for orders over $80.00 ex GST

Battery Authentication & Identification, Texas Instruments
