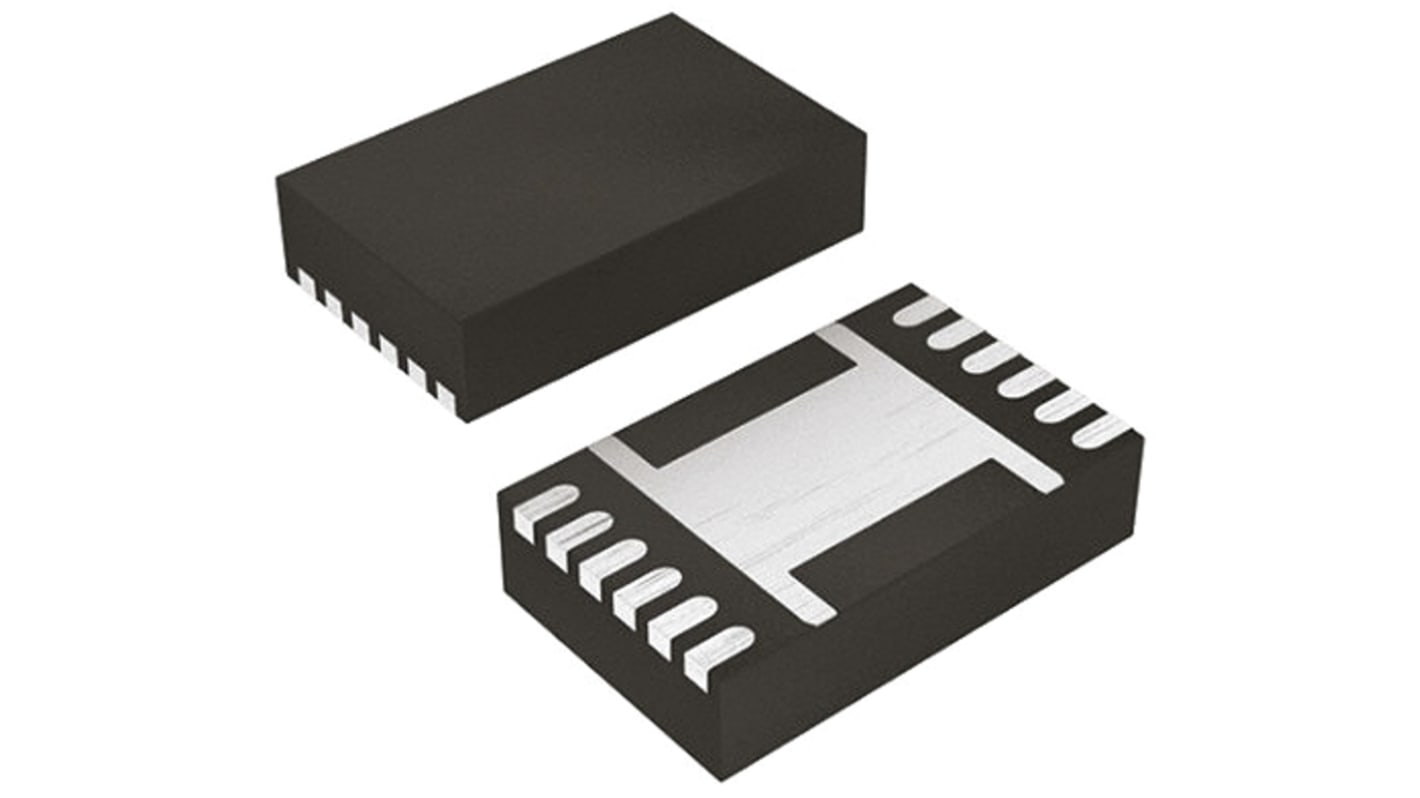

Name: Texas Instruments BQ27441DRZT-G1B, Battery Fuel Gauge IC, 2.45 to 4.5 V 12-Pin, SON
Brand: Texas Instruments
SKU: 145-6313
Price: 2.77 AUD
Availability: Discontinued

Impedance Track™ Battery Charge Monitors, Texas Instruments

The Li-ion battery charge monitors use the patented Impedance Track™ algorithm for battery fuel gauging, and provide information such as remaining battery capacity (mAh), state-of-charge (%), and battery voltage (mV). It minimises dependence on host processor and improves standby power.

Safety protections such as over/under-temperature, extra levels of over/under-voltage, discharge short circuit, charge overcurrent
Autonomously measures all cell voltages, integrated pack current and temperature every 1 second
Capacity Indication with advanced algorithms
Accurate battery State-Of-Health (SOH) enables accurate prediction of available capacity
Smart charging and adaptability

Battery Management, Texas Instruments

Select all	Attribute	Value
	Brand	Texas Instruments
	Mounting Type	Surface Mount
	IC Type	Battery Fuel Gauge IC
	Package Type	SON
	Pin Count	12
	Typical Operating Supply Voltage	2.45 to 4.5 V
	Dimensions	4.15 x 2.6 x 0.95mm
	Length	4.15mm
	Width	2.6mm
	Height	0.95mm
	Maximum Operating Temperature	+85 °C
	Minimum Operating Temperature	-40 °C

	Select all
	Brand Texas Instruments
	Mounting Type Surface Mount
	IC Type Battery Fuel Gauge IC
	Package Type SON
	Pin Count 12
	Typical Operating Supply Voltage 2.45 to 4.5 V
	Dimensions 4.15 x 2.6 x 0.95mm
	Length 4.15mm
	Width 2.6mm
	Height 0.95mm
	Maximum Operating Temperature +85 °C
	Minimum Operating Temperature -40 °C

Texas Instruments BQ27441DRZT-G1B, Battery Fuel Gauge IC, 2.45 to 4.5 V 12-Pin, SON

Impedance Track™ Battery Charge Monitors, Texas Instruments
