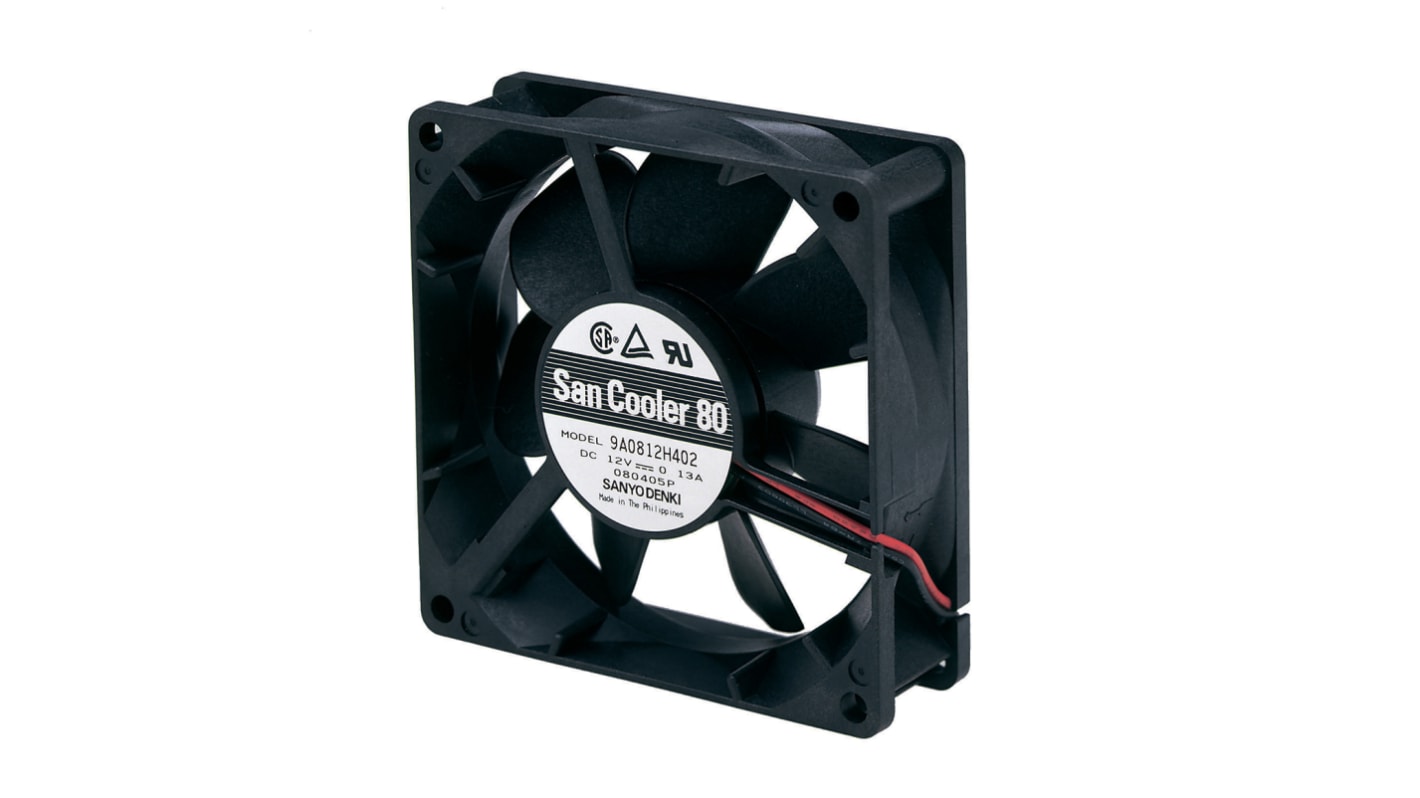

Sanyo Denki 9A Series Axial Fan, 12V dc, 72 m³/h, 2.16 W, 180 mA Max, IP68 80 mm 80mm 25 mm
- RS Stock No.:
- 191-9298
- Distrelec Article No.:
- 301-54-387
- Mfr. Part No.:
- 9A0812S4021
- Brand:
- Sanyo Denki
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 191-9298
- Distrelec Article No.:
- 301-54-387
- Mfr. Part No.:
- 9A0812S4021
- Brand:
- Sanyo Denki
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sanyo Denki | |
| Product Type | Axial Fan | |
| Supply Voltage | 12V dc | |
| Power Consumption | 2.16W | |
| Maximum Current | 180mA | |
| Air Flow | 72m³/h | |
| Noise Level | 34dBA | |
| Fan Speed | 6300rpm | |
| Terminal Type | Screw | |
| Direction of Curve | Backward | |
| Bearing Type | Ball | |
| Fan Frame Type | Square | |
| Fan Frame Size | 80 mm | |
| Series | 9A | |
| Width | 80mm | |
| Height | 80mm | |
| Depth | 25mm | |
| Standards/Approvals | RoHS | |
| IP Rating | IP68 | |
| Select all | ||
|---|---|---|
Brand Sanyo Denki | ||
Product Type Axial Fan | ||
Supply Voltage 12V dc | ||
Power Consumption 2.16W | ||
Maximum Current 180mA | ||
Air Flow 72m³/h | ||
Noise Level 34dBA | ||
Fan Speed 6300rpm | ||
Terminal Type Screw | ||
Direction of Curve Backward | ||
Bearing Type Ball | ||
Fan Frame Type Square | ||
Fan Frame Size 80 mm | ||
Series 9A | ||
Width 80mm | ||
Height 80mm | ||
Depth 25mm | ||
Standards/Approvals RoHS | ||
IP Rating IP68 | ||
- COO (Country of Origin):
- PH
Our DC cooling fans have features such as high airflow, high reliability, and low noise. They can be used in a wide-ranging applications including servers and ICT equipment.
