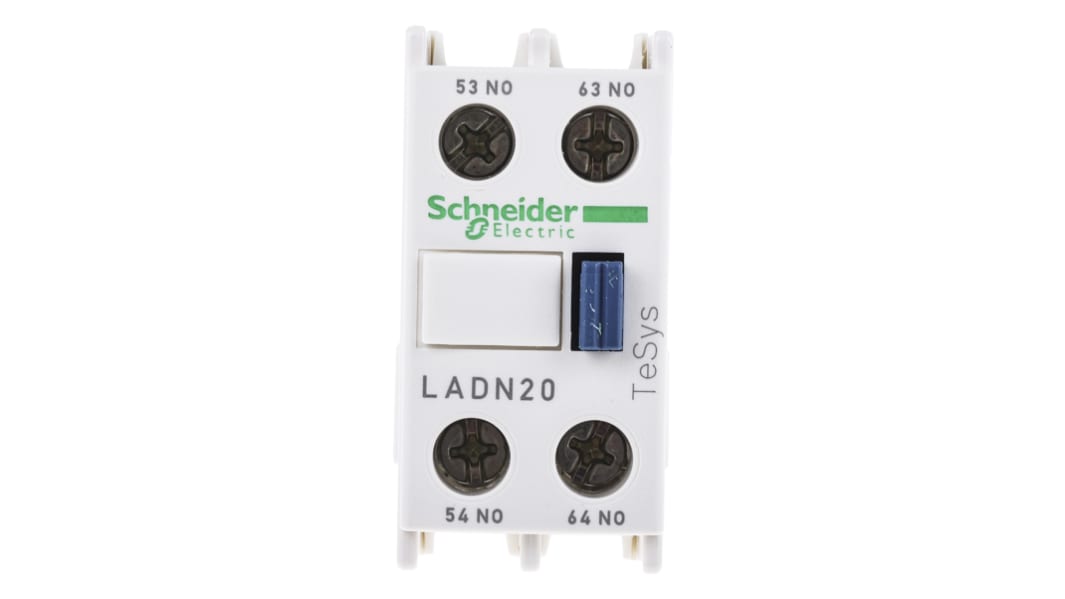

Schneider Electric Auxiliary Contact Block, 2 Contact, 2 NO, TeSyS D, Front, 10 A, 690V, LADN20

View all Auxiliary Contacts
Bulk discount available
View bulk pricing options

Subtotal (1 unit)*

$62.43

(exc. GST)

$68.67

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 20 unit(s) ready to ship
  • Plus 351 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 2$62.43
3 - 4$60.69
5 +$58.19

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
394-9914
Distrelec Article No.:
136-22-637
Mfr. Part No.:
LADN20
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Number of Contacts

2

Product Type

Auxiliary Contact Block

Normal State Configuration

2 NO

Series

TeSyS D

Mount Type

Front

Contact Current

10A

Terminal Type

Screw Clamp

Pole and Throw Configuration

2 NO

Contact Voltage

690V

Mounting Location

Front

Minimum Load

5mA

Minimum Operating Temperature

-5°C

Mechanical Durability

30Mcycles

Rated Insulation Voltage Ui

600V

Maximum Operating Temperature

60°C

Standards/Approvals

GB/T 14048.5, EN 50012, UL 60947-5-1, EN/IEC 60947-5-1, CSA C22.2 No 60947-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ

Better World Product

Yes

Schneider Electric LADN Series Auxiliary Contact Block, 2NO Normal State Configuration, 10A Current Rating - LADN20


This auxiliary contact block is a crucial component within the TeSys range, designed for seamless integration in various electrical systems. It features a compact design measuring 48mm in height, 26mm in width, and 42mm in depth, making it suitable for front mounting applications. With a 2NO contact configuration, it offers a reliable solution for managing electrical connectivity with a rated contact current of 10A and a maximum operational voltage of 690V.

Features & Benefits


• Offers instantaneous contact operation for efficient performance

• Compatible with multiple ranges, enhancing versatility in setups

• Equipped with screw clamp terminals for secure connections

• Designed to withstand harsh temperatures from -5°C to 60°C

• Exceptional mechanical durability of 30 million cycles

• Low minimum switching voltage and current for sensitive applications

Applications


• Utilised for automation processes in industrial environments

• Employed in electrical control circuits for reliable signalling

• Ideal in conjunction with motor starters in electrical panels

• Integrates with various TeSys models for expanded capabilities

• Serves as a safety device in critical machinery

What is the maximum operational voltage for reliable use in demanding environments?


The product can reliably handle voltages up to 690V AC, ensuring safety and efficiency in various applications.

How does the contact block facilitate installation and maintenance in electrical systems?


The screw terminal design accommodates cable sizes ranging from 1 to 4 mm², allowing easy connections and simplified maintenance.

What measures are in place to ensure longevity under rigorous conditions?


With a mechanical durability rating of 30 million cycles and an extensive operational temperature range, this contact block is built to endure challenging environments effectively.

Can this contact block be used in conjunction with other devices?


Yes, the device is compatible with various motor starters and contactors, making it an ideal choice for integrated electrical systems.
