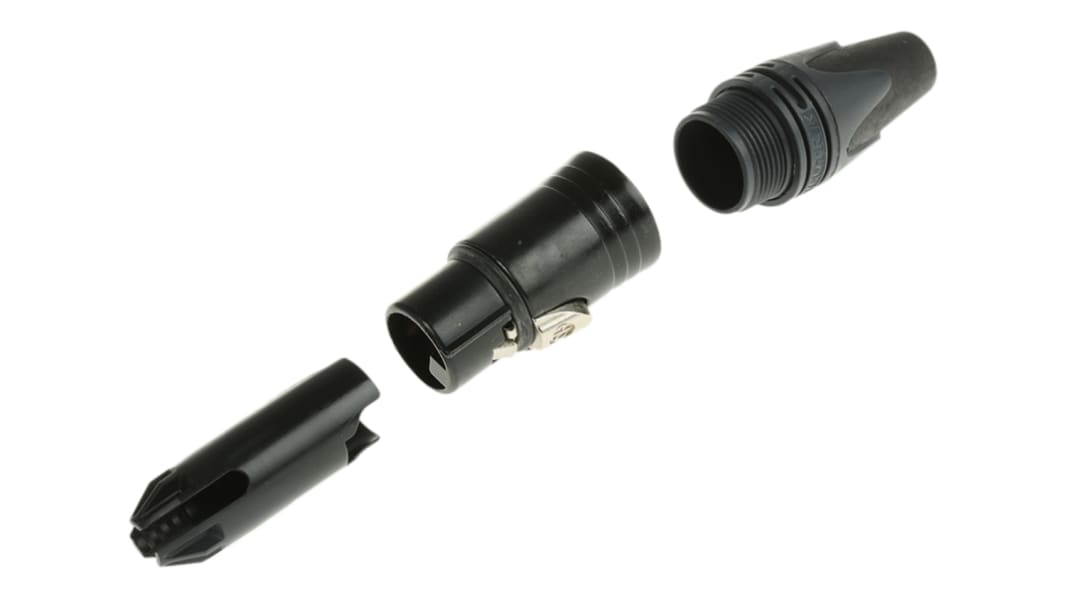

Neutrik Cable Mount XLR Connector, Female, 50 V, 5 Way, Silver over Nickel Plating

RS Stock No.:: 166-642
Mfr. Part No.:: NC5FXX-BAG
Brand:: Neutrik

Neutrik Cable Mount XLR Connector, Female, 50 V, 5 Way, Silver over Nickel Plating

770 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$18.62

(exc. GST)

$20.48

(inc. GST)

Units	Per unit
1 - 14	$18.62
15 - 49	$18.32
50 - 99	$17.97
100 +	$17.62

RS Stock No.:: 166-642
Mfr. Part No.:: NC5FXX-BAG
Brand:: Neutrik

Technical data sheets

XLR Switch Range Product Guide

Legislation and Compliance

COO (Country of Origin):: LI

Product Details

XX Series XLR Black Chrome Cable Connectors

Low contact resistance through the cage design of the female contact
Female contact with a solder barrier to prevent solder running into the contact mating area
Female connector with solid metal latch
Strain relief provides a high pull-out force making assembly easier and faster

Warning

Not to be used as mains connectors

Specifications

Attribute	Value
Number of Contacts	5
Gender	Female
Mounting Type	Cable Mount
Body Orientation	Straight
Contact Plating	Silver over Nickel
Housing Material	Nylon
Termination Method	Solder
Current Rating	7.5A
Voltage Rating	50 V
Contact Material	Brass
Minimum Operating Temperature	-30°C
Maximum Operating Temperature	+80°C
