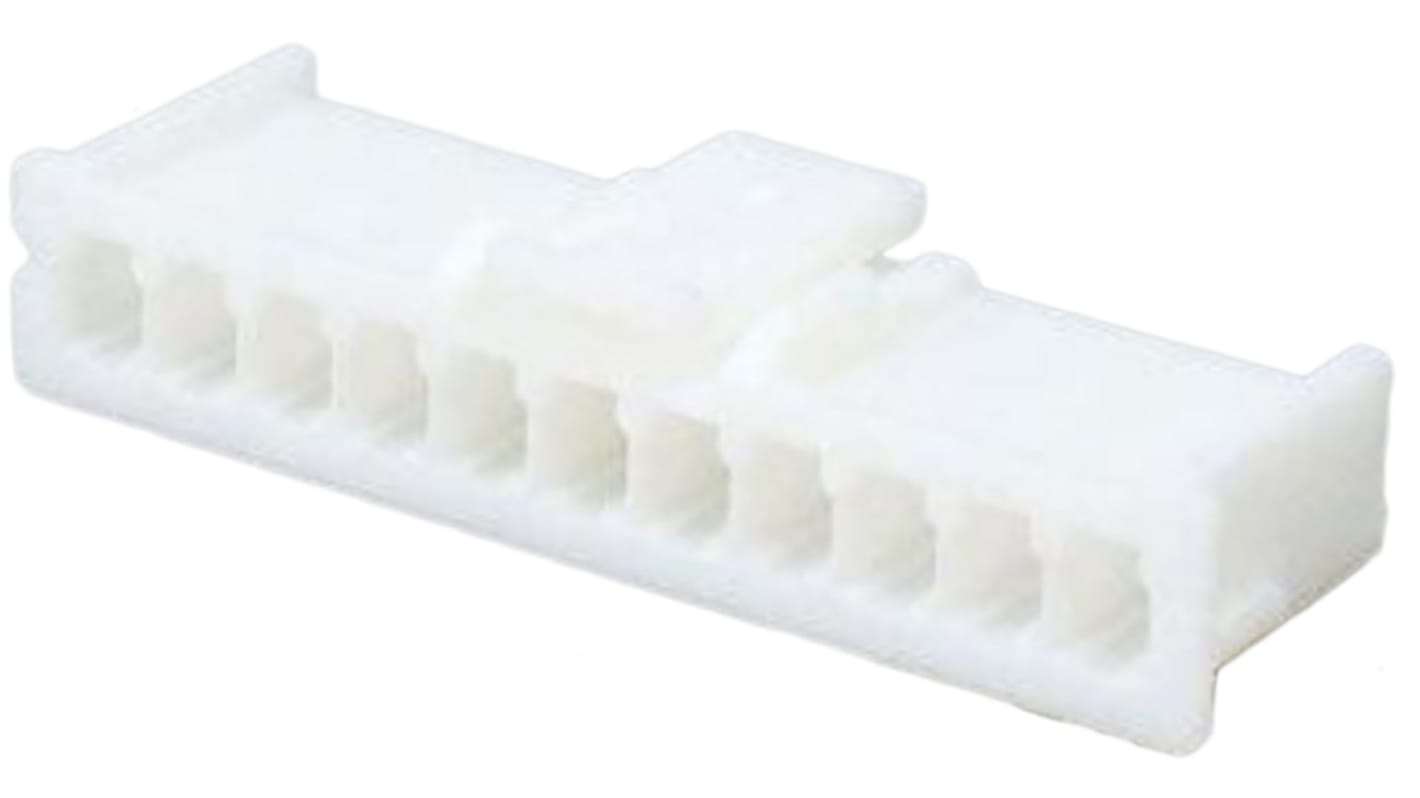

JST, XA Female Connector Housing, 2.5 mm Pitch, 11 Way, 1 Row Straight
- RS Stock No.:
- 602-8565
- Mfr. Part No.:
- XAP-11V-1
- Brand:
- JST
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 602-8565
- Mfr. Part No.:
- XAP-11V-1
- Brand:
- JST
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Product Type | Connector Housing | |
| Number of Contacts | 11 | |
| Number of Rows | 1 | |
| Pitch | 2.5mm | |
| Connector Gender | Female | |
| Mount Type | Standard Mount | |
| For Use With | Disconnectable Crimp Connector | |
| Orientation | Straight | |
| Width | 6.9mm | |
| Series | XA | |
| Housing Material | Nylon | |
| Length | 29.8mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand JST | ||
Product Type Connector Housing | ||
Number of Contacts 11 | ||
Number of Rows 1 | ||
Pitch 2.5mm | ||
Connector Gender Female | ||
Mount Type Standard Mount | ||
For Use With Disconnectable Crimp Connector | ||
Orientation Straight | ||
Width 6.9mm | ||
Series XA | ||
Housing Material Nylon | ||
Length 29.8mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- JP
XA Series Crimp Connector Housing, Standard Type
Standard type housings for the JST XA series of 2.5mm pitch wire-to-board connectors. The housings are available in 2 to 20 way formats. For suitable crimp contacts see 123-5951.
Features & Benefits
• Secure locking device prevents accidental disconnection
• Housing material glass-filled PA66 nylon
2.5mm Wire-to-Board Connector, JST XA Series
Please note- the colour of the picture displayed above is for reference only.
