JST, XA Female Connector Housing, 2.5 mm Pitch, 9 Way, 1 Row Straight
- RS Stock No.:
- 602-8543
- Mfr. Part No.:
- XAP-09V-1
- Brand:
- JST
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
$4.85
(exc. GST)
$5.34
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 1,340 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 240 | $0.485 | $4.85 |
| 250 - 990 | $0.48 | $4.80 |
| 1000 - 4990 | $0.458 | $4.58 |
| 5000 - 9990 | $0.448 | $4.48 |
| 10000 + | $0.44 | $4.40 |
*price indicative
- RS Stock No.:
- 602-8543
- Mfr. Part No.:
- XAP-09V-1
- Brand:
- JST
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Product Type | Connector Housing | |
| Number of Contacts | 9 | |
| Number of Rows | 1 | |
| Pitch | 2.5mm | |
| Connector Gender | Female | |
| Mount Type | Standard Mount | |
| For Use With | Disconnectable Crimp Connector | |
| Orientation | Straight | |
| Length | 24.8mm | |
| Housing Material | Nylon | |
| Standards/Approvals | No | |
| Series | XA | |
| Width | 6.9mm | |
| Select all | ||
|---|---|---|
Brand JST | ||
Product Type Connector Housing | ||
Number of Contacts 9 | ||
Number of Rows 1 | ||
Pitch 2.5mm | ||
Connector Gender Female | ||
Mount Type Standard Mount | ||
For Use With Disconnectable Crimp Connector | ||
Orientation Straight | ||
Length 24.8mm | ||
Housing Material Nylon | ||
Standards/Approvals No | ||
Series XA | ||
Width 6.9mm | ||
- COO (Country of Origin):
- JP
XA Series Crimp Connector Housing, Standard Type
Standard type housings for the JST XA series of 2.5mm pitch wire-to-board connectors. The housings are available in 2 to 20 way formats. For suitable crimp contacts see 123-5951.
Features & Benefits
• Secure locking device prevents accidental disconnection
• Housing material glass-filled PA66 nylon
2.5mm Wire-to-Board Connector, JST XA Series

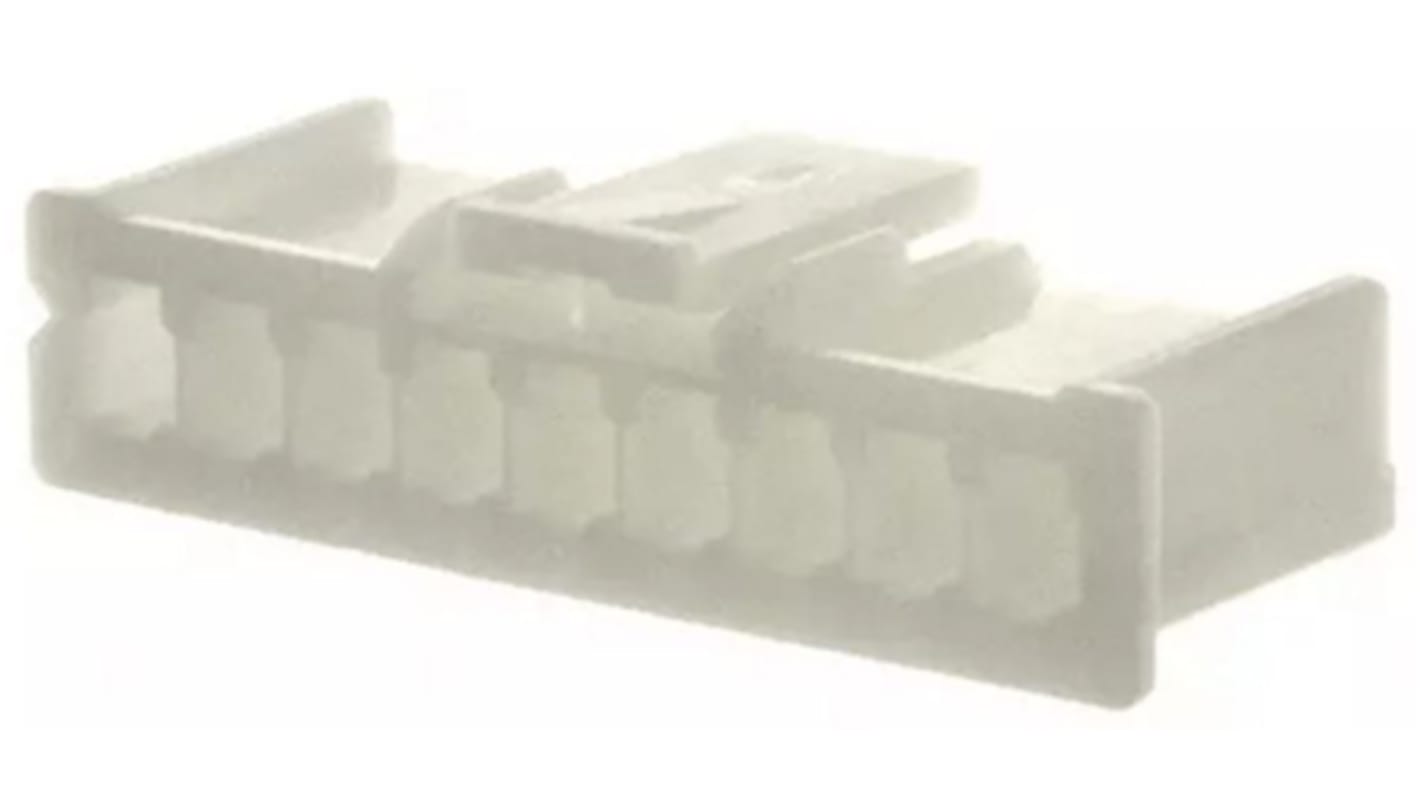

Please note- the colour of the picture displayed above is for reference only.
