Maxim Integrated 1 Voltage Supervisor 16-Pin 4.75 V Lead Wide SO, MAX691EWE+
- RS Stock No.:
- 190-1840
- Mfr. Part No.:
- MAX691EWE+
- Brand:
- Maxim Integrated

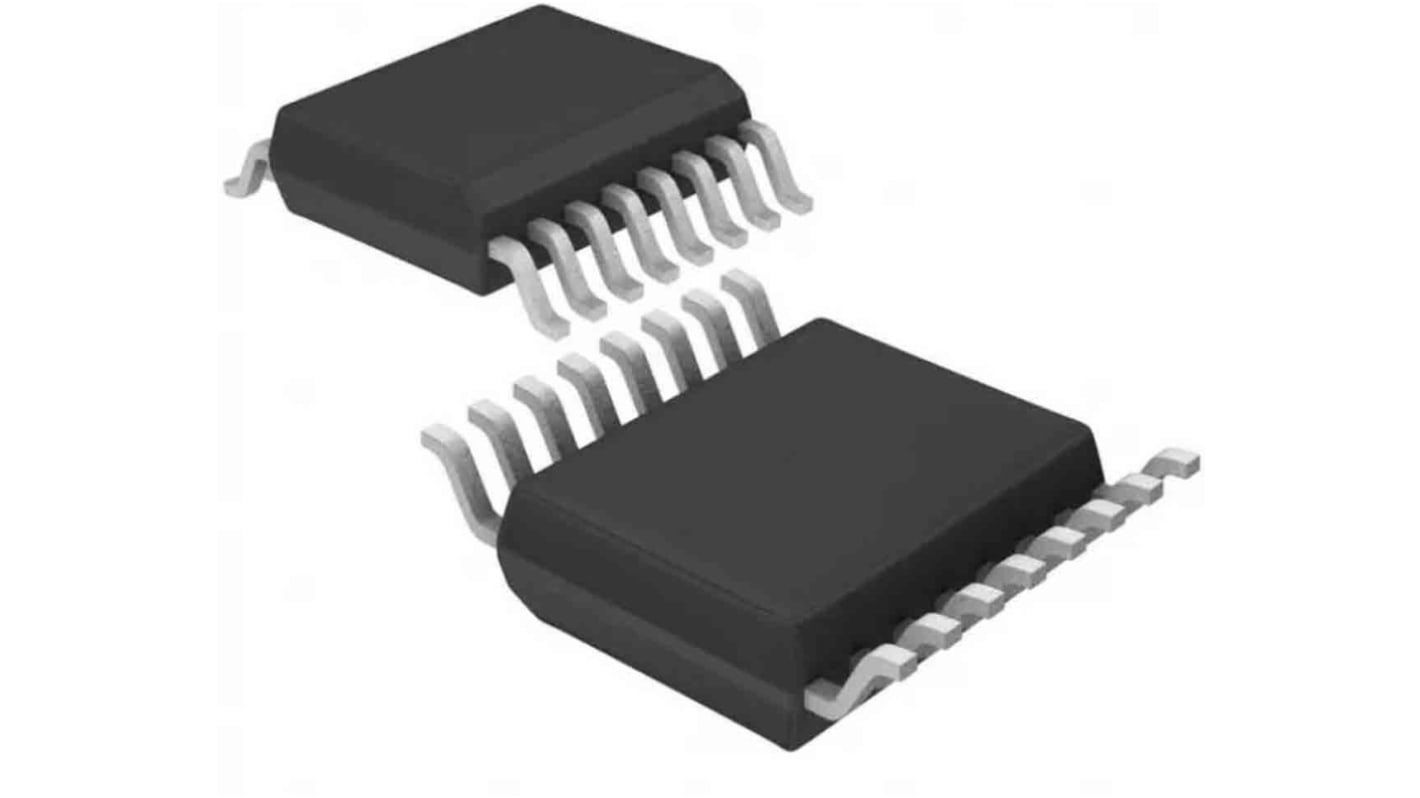

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 190-1840
- Mfr. Part No.:
- MAX691EWE+
- Brand:
- Maxim Integrated
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Number of Supervisors | 1 | |
| Product Type | Voltage Supervisor | |
| Pin Count | 16 | |
| Reset Threshold Voltage | 4.75 V | |
| Package Type | Lead Wide SO | |
| Automotive Standard | No | |
| Height | 2.35 mm | |
| Length | 10.5 mm | |
| Manual Reset | Yes | |
| Maximum Operating Temperature | 85 °C | |
| Maximum Supply Voltage | 5.5 V | |
| Minimum Operating Temperature | -40 °C | |
| Minimum Supply Voltage | 4.75 V | |
| Monitored Voltage | 4.65 V | |
| Mount Type | Screw, Screw | |
| Output Driver | Active High, Active Low, Push Pull | |
| Power Fail Detection | Yes | |
| Reset Active Time | 70 ms | |
| Series | MAX691 | |
| Standards/Approvals | No | |
| Sub Type | Microprocessor Supervisory Circuit | |
| Watchdog Timer | Yes | |
| Width | 7.6 mm | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Number of Supervisors 1 | ||
Product Type Voltage Supervisor | ||
Pin Count 16 | ||
Reset Threshold Voltage 4.75 V | ||
Package Type Lead Wide SO | ||
Automotive Standard No | ||
Height 2.35 mm | ||
Length 10.5 mm | ||
Manual Reset Yes | ||
Maximum Operating Temperature 85 °C | ||
Maximum Supply Voltage 5.5 V | ||
Minimum Operating Temperature -40 °C | ||
Minimum Supply Voltage 4.75 V | ||
Monitored Voltage 4.65 V | ||
Mount Type Screw, Screw | ||
Output Driver Active High, Active Low, Push Pull | ||
Power Fail Detection Yes | ||
Reset Active Time 70 ms | ||
Series MAX691 | ||
Standards/Approvals No | ||
Sub Type Microprocessor Supervisory Circuit | ||
Watchdog Timer Yes | ||
Width 7.6 mm | ||
- COO (Country of Origin):
- MY
The Maxim Integrated Products' MAX690 family of supervisory circuits reduces the complexity and number of components required for
power supply monitoring and battery control functions in microprocessor systems. These include μP reset and
backup-battery switchover, watchdog timer, CMOS RAM write protection, and power-failure warning. The MAX690
family significantly improves system reliability and accuracy compared to that obtainable with separate ICs or discrete components.
Low Power Consumption in Battery Backup Mode Extends Battery Life
Supervisory Function Integration Saves Board Space while Fully Protecting Microprocessor-Based Systems
Microprocessor Supervisory & Reset Circuits (4.63V to 4.67V), Maxim Integrated
Microprocessor Supply Voltage Supervisory & Reset Circuits
Power supply voltage monitoring and supervisory circuits for use in desktop, laptop and notebook computers, test and measurement instruments, portable battery-powered equipment and multiple-output power supplies.
Supply Voltage Detector
Supply Voltage Supervisor
Power Supply Supervisor
Microprocessor Supervisory
Microprocessor Voltage Supervisor
Microcontroller Reset Circuit
Note
Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.
