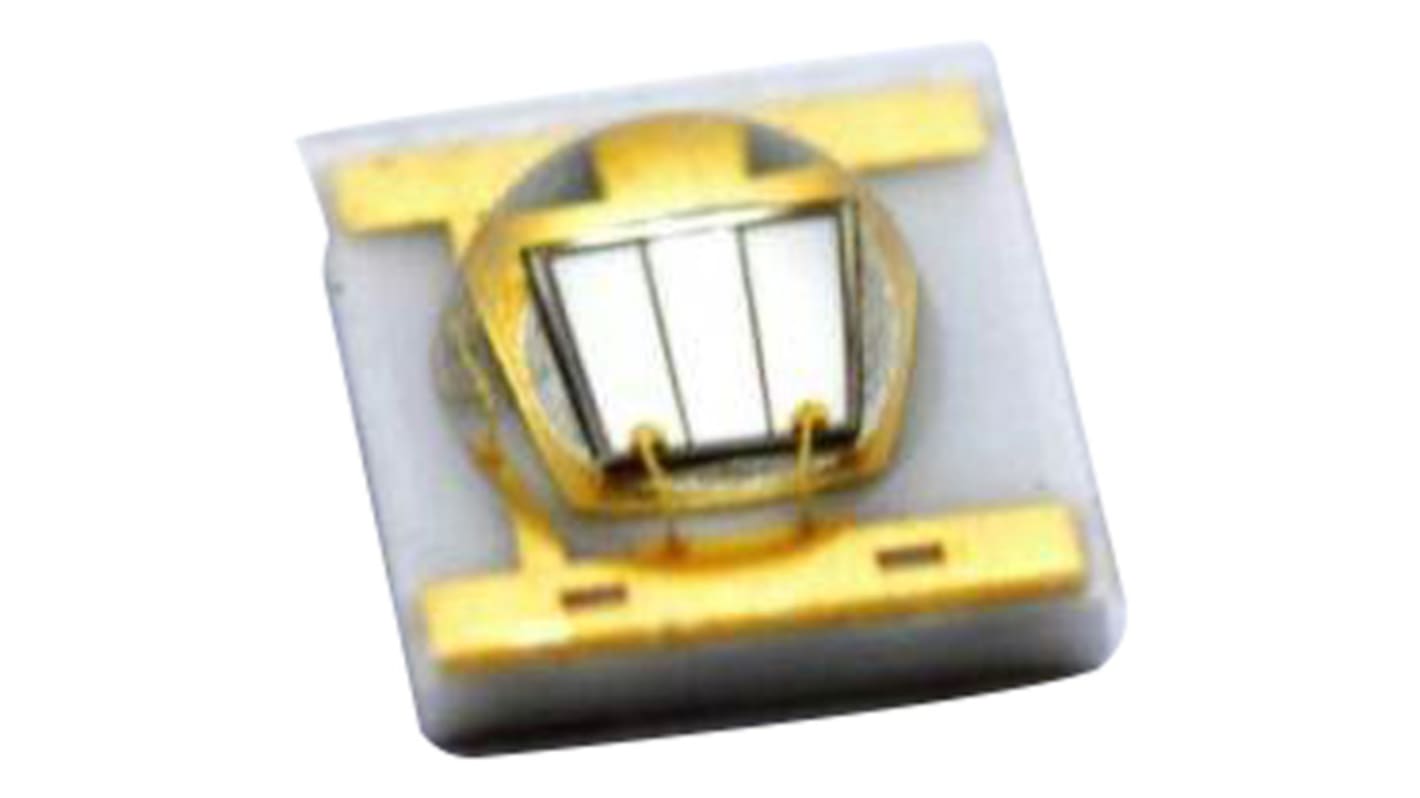

C3535U- UNL1-A1G11H-380 TSLC C3535U-UNL1 Series 1-LEDs UV LED 420 nm 560 mW 125 °, 2-Pin Surface package

View all UV LEDs
Bulk discount available

Subtotal (1 unit)*

$17.71

(exc. GST)

$19.48

(inc. GST)

Add to Basket
Select or type quantity
Last RS stock
  • Final 36 unit(s), ready to ship from another location
Units
Per unit
1 - 9$17.71
10 - 49$17.61
50 - 99$17.44
100 - 249$17.29
250 +$17.14

*price indicative

RS Stock No.:
903-3769
Mfr. Part No.:
C3535U- UNL1-A1G11H-380
Brand:
TSLC
Find similar products by selecting one or more attributes.
Select all

Brand

TSLC

UV Type

Ultraviolet

Number of LEDs

1

Product Type

UV LED

Peak Wavelength

420nm

Packaging

EIA-481D Carrier Tape

Radiant Flux

560mW

Package Type

3535

Viewing Angle

125 °

Lens Shape

Dome

Number of Pins

2

Mount Type

Surface

Length

3.45mm

Standards/Approvals

RoHS

Height

2mm

Width

3.45 mm

Series

C3535U-UNL1

Automotive Standard

No

TSLC 3535 UV LEDs


The 3535 family from TSLC are a family of high power UV LEDs. They all share the same 3535 footprint with two options of domed lens; the UNL1 with a lower profile and a 125° beam angle or the UNF1 with a higher dome and a narrower 55° beam angle.

The 3535 UV LEDs offer high reliability and high performance. Available in a variety of different UV wavelengths (listed below) makes them ideal for applications such as UV curing and general purpose UV applications.

Features of the 3535 UV LEDs:

3535 footprint - 3.5 x 3.5 mm

SMD package

Domed lens

High power

High reliability

55° or 125° beam angle

TSLC UV colour categories:

U40 – 380 to 390 nm

U50 – 390 to 400 nm

U60 – 400 to 410 nm

U70 – 410 to 420 nm

Ultraviolet (UV) LEDs, TSLC
