ILS-OV12-O275-VL010-SC201-W2. Intelligent LED Solutions ILS-OV12-O275-VLXXX-SC201-W2 Series 12-LEDs UV LED 275 nm 140 mW
- RS Stock No.:
- 225-0603
- Distrelec Article No.:
- 302-96-142
- Mfr. Part No.:
- ILS-OV12-O275-VL010-SC201-W2.
- Brand:
- Intelligent LED Solutions
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$113.93
(exc. GST)
$125.32
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 6 unit(s) shipping from 27 April 2026
- Plus 15 unit(s) shipping from 14 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | $113.93 |
| 5 - 9 | $110.74 |
| 10 - 24 | $107.10 |
| 25 - 49 | $104.83 |
| 50 + | $102.55 |
*price indicative
- RS Stock No.:
- 225-0603
- Distrelec Article No.:
- 302-96-142
- Mfr. Part No.:
- ILS-OV12-O275-VL010-SC201-W2.
- Brand:
- Intelligent LED Solutions
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Intelligent LED Solutions | |
| Product Type | UV LED | |
| UV Type | UV C | |
| Number of LEDs | 12 | |
| Peak Wavelength | 275nm | |
| Radiant Flux | 140mW | |
| Viewing Angle | 130 ° | |
| Number of Pins | 2 | |
| Mount Type | Through Hole | |
| Length | 275mm | |
| Width | 20mm | |
| Height | 3.4mm | |
| Standards/Approvals | IEC 62471:2006 | |
| Automotive Standard | No | |
| Series | ILS-OV12-O275-VLXXX-SC201-W2 | |
| Select all | ||
|---|---|---|
Brand Intelligent LED Solutions | ||
Product Type UV LED | ||
UV Type UV C | ||
Number of LEDs 12 | ||
Peak Wavelength 275nm | ||
Radiant Flux 140mW | ||
Viewing Angle 130 ° | ||
Number of Pins 2 | ||
Mount Type Through Hole | ||
Length 275mm | ||
Width 20mm | ||
Height 3.4mm | ||
Standards/Approvals IEC 62471:2006 | ||
Automotive Standard No | ||
Series ILS-OV12-O275-VLXXX-SC201-W2 | ||
- COO (Country of Origin):
- GB

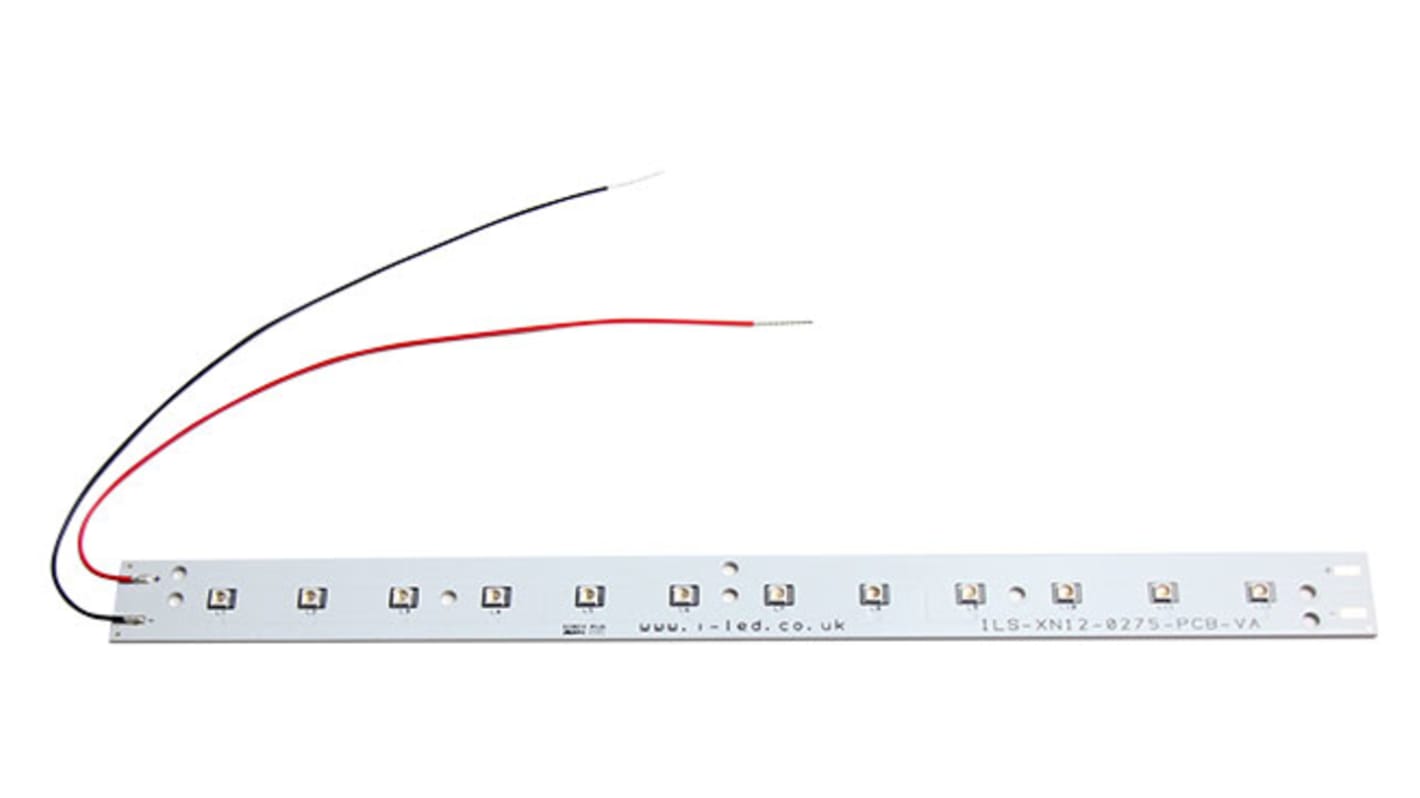

The Intelligent LED SolutionsViolet Linear Strip is available in 2 power output types, low and mid power. The OSLON UV 3636 is a robust package built on a ceramic substrate, coated in gold and has a quartz glass cover. It has been designed for multiple applications including disinfection, purification, treatment and sensing. This strip is compact, powerful LED light source built on aluminium substrates for optimal thermal management.
Available with 200mm wires
Mounting holes using M3 screws allows easy installation
Violet linear strips can be linked together to produce longer chains
Forward Current per strip is 600mA
Reverse voltage is 15V
Temperature range between 40°C and 60°C
