FTDI Chip FT4232HPQ-TRAY, Controller IC, 4-Channel 12 Mbps, 1.32V, USB 2.0, 3.3 V, 68-Pin QFN

RS Stock No.:: 228-3126
Mfr. Part No.:: FT4232HPQ-TRAY
Brand:: FTDI Chip

FTDI Chip FT4232HPQ-TRAY, Controller IC, 4-Channel 12 Mbps, 1.32V, USB 2.0, 3.3 V, 68-Pin QFN

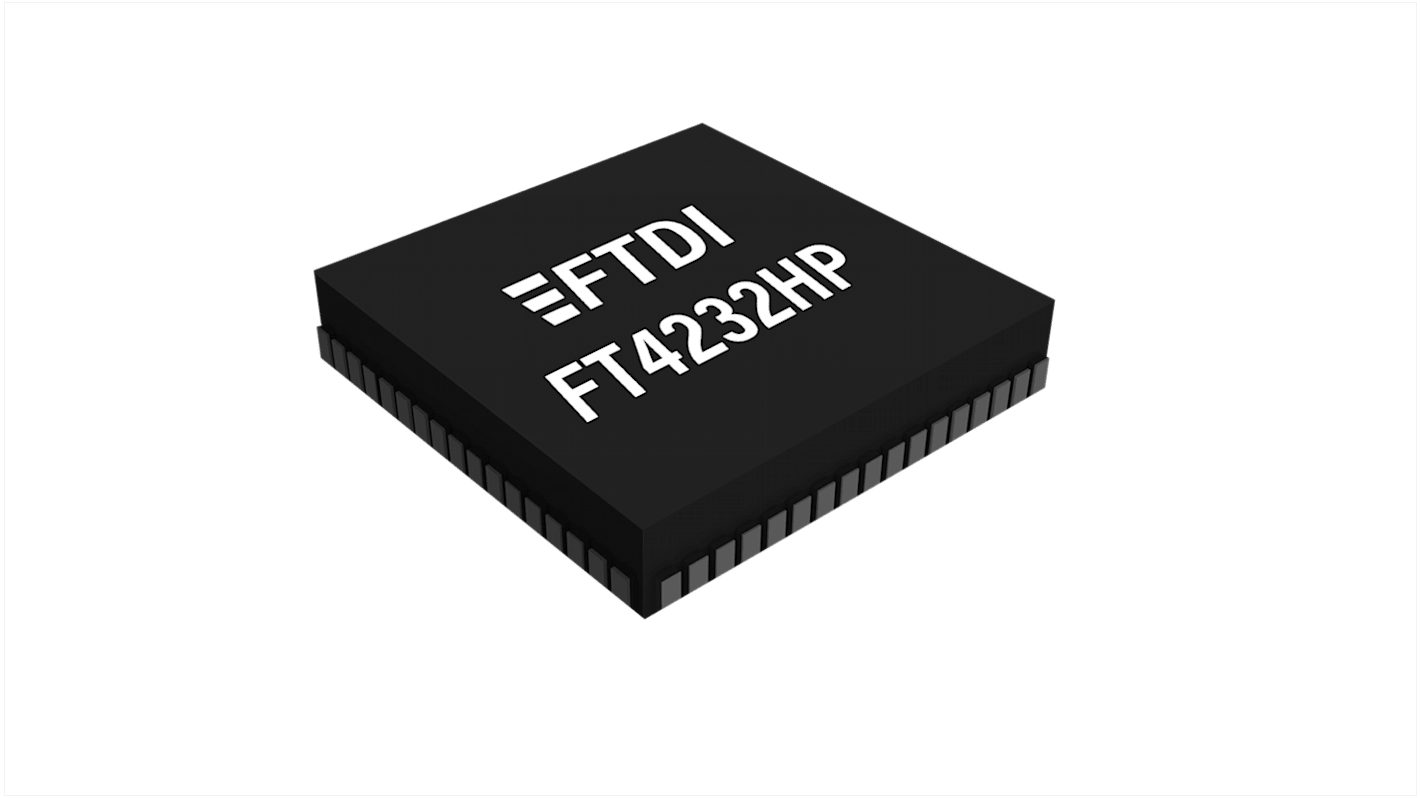

This image is representative of the product range

Get a bulk buy discount

Add 1300 more to save 4%

View bulk pricing options

Subtotal (1 tray of 260 units)*

$2,810.60

(exc. GST)

$3,091.40

(inc. GST)

FREE delivery for orders over $80.00 ex GST

Temporarily out of stock

520 unit(s) shipping from 27 January 2027

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Tray*	Saving
260 - 1040	$10.81	$2,810.60	-
1300 +	$10.27	$2,670.20	4%

*price indicative

RS Stock No.:: 228-3126
Mfr. Part No.:: FT4232HPQ-TRAY
Brand:: FTDI Chip

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	FTDI Chip
	Maximum Data Rate	12Mbps
	Number of Transceivers	4
	Product Type	Controller IC
	Sub Type	Controller
	USB Specification	USB Type C
	Power Supply Type	Single
	ESD Protection	Yes
	Minimum Supply Voltage	3.3V
	Maximum Supply Voltage	1.32V
	Mount Type	Surface
	Package Type	QFN
	Pin Count	68
	Supported Protocols	USB 2.0
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	RoHS
	Series	FT4233HP
	Length	8mm
	Height	900μm
	Automotive Standard	No
	Supply Current	870μA

	Select all
	Brand FTDI Chip
	Maximum Data Rate 12Mbps
	Number of Transceivers 4
	Product Type Controller IC
	Sub Type Controller
	USB Specification USB Type C
	Power Supply Type Single
	ESD Protection Yes
	Minimum Supply Voltage 3.3V
	Maximum Supply Voltage 1.32V
	Mount Type Surface
	Package Type QFN
	Pin Count 68
	Supported Protocols USB 2.0
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals RoHS
	Series FT4233HP
	Length 8mm
	Height 900μm
	Automotive Standard No
	Supply Current 870μA

The FTDI Chip FT4233HP/FT4232HP is a Hi-Speed USB device with a Type-C/PD3.0 controller that fully supports the latest USB Type-C and Power Delivery (PD) standards enabling support for power negotiation with the ability to sink or source current to a USB host device. The USB bridge function delivers 4 independent channels compatible with the existing FT4232H – Quad Hi-speed USB to multipurpose UART/MPSSE solution.

Supports PD Specification 3.0

1 x USB PD 3.0 Port supports Dual Role Swap Function

Supports 5V3A, 9V3A, 12V3A, 15V3A, 20V3A and more PDOs as sink or source

Type-C/PD Physical Layer Protocol

PD policy engine using 32-bit RISC controller with 8kB data RAM and 48kB code ROM

PD mode configuration through external EEPROM

Options to use external MCU controlling PD policy through I2C interface

Up to 8 Configurable PD GPIO pins support

External MCU support through I2C bus
