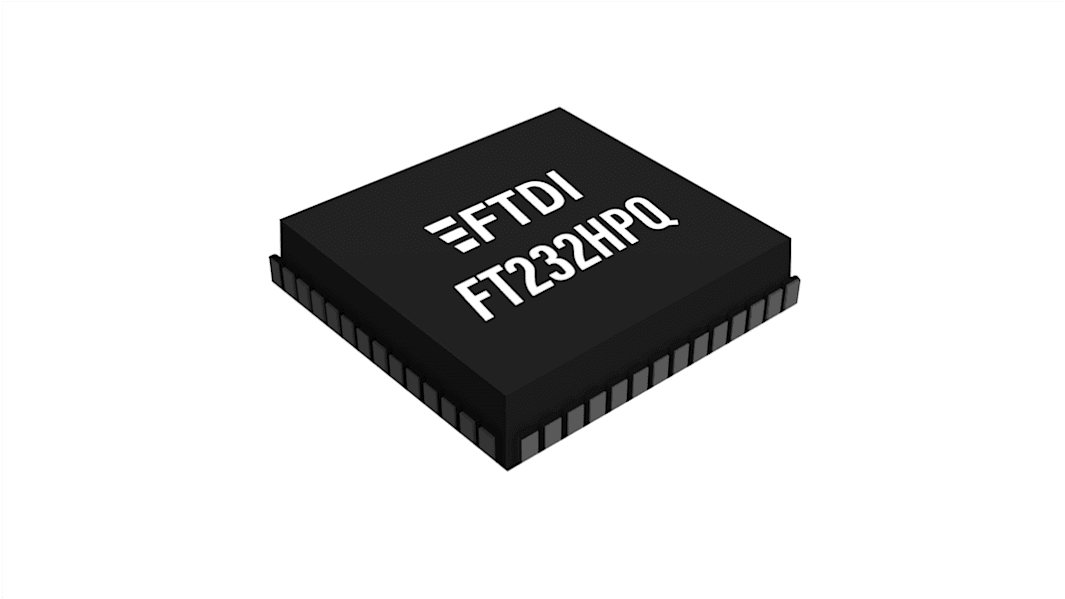

Name: FTDI Chip FT232HPQ-TRAY, USB Controller, 12Mbps, USB 2.0, 3.3 V, 56-Pin QFN 56
Brand: FTDI Chip
SKU: 228-3123
Price: 8.95 AUD
Availability: InStock

The FTDI Chip FT233HP/FT232HP is a Hi-Speed USB device with Type-C/PD 3.0 controller IC that fully supports the latest USB Type-C and Power Delivery (PD) standards enabling support for power negotiation with the ability to sink or source current to a USB host device. The USB bridge function delivers 1 independent channel compatible with the FT232H – Single Hi-speed USB to multipurpose UART/FIFO solution.

Supports PD Specification 3.0.
1 x USB PD 3.0 Port supports Dual Role Swap Function
Supports 5V3A, 9V3A, 12V3A, 15V3A, 20V3A and more PDOs as sink or source.
Type-C/PD Physical Layer Protocol.
PD policy engine using 32-bit RISC controller with 8kB data RAM and 48kB code ROM.
PD mode configuration through external EEPROM.
Options to use external MCU controlling PD policy through I2C interface.
Up to 8 Configurable PD GPIO pins support.
External MCU support through I2C bus.

Units	Per unit
1 - 9	$8.14
10 - 99	$7.98
100 +	$7.86

Select all	Attribute	Value
	Brand	FTDI Chip
	Number of Transceivers	1
	Data Rate	12Mbps
	Protocols Supported	USB 2.0
	IC Type	Controller IC
	Power Supply Type	Single
	ESD Protection	Yes
	Typical Single Supply Voltage	3.3 V
	Package Type	QFN 56
	Pin Count	56

	Select all
	Brand FTDI Chip
	Number of Transceivers 1
	Data Rate 12Mbps
	Protocols Supported USB 2.0
	IC Type Controller IC
	Power Supply Type Single
	ESD Protection Yes
	Typical Single Supply Voltage 3.3 V
	Package Type QFN 56
	Pin Count 56

FTDI Chip FT232HPQ-TRAY, USB Controller, 12Mbps, USB 2.0, 3.3 V, 56-Pin QFN 56
