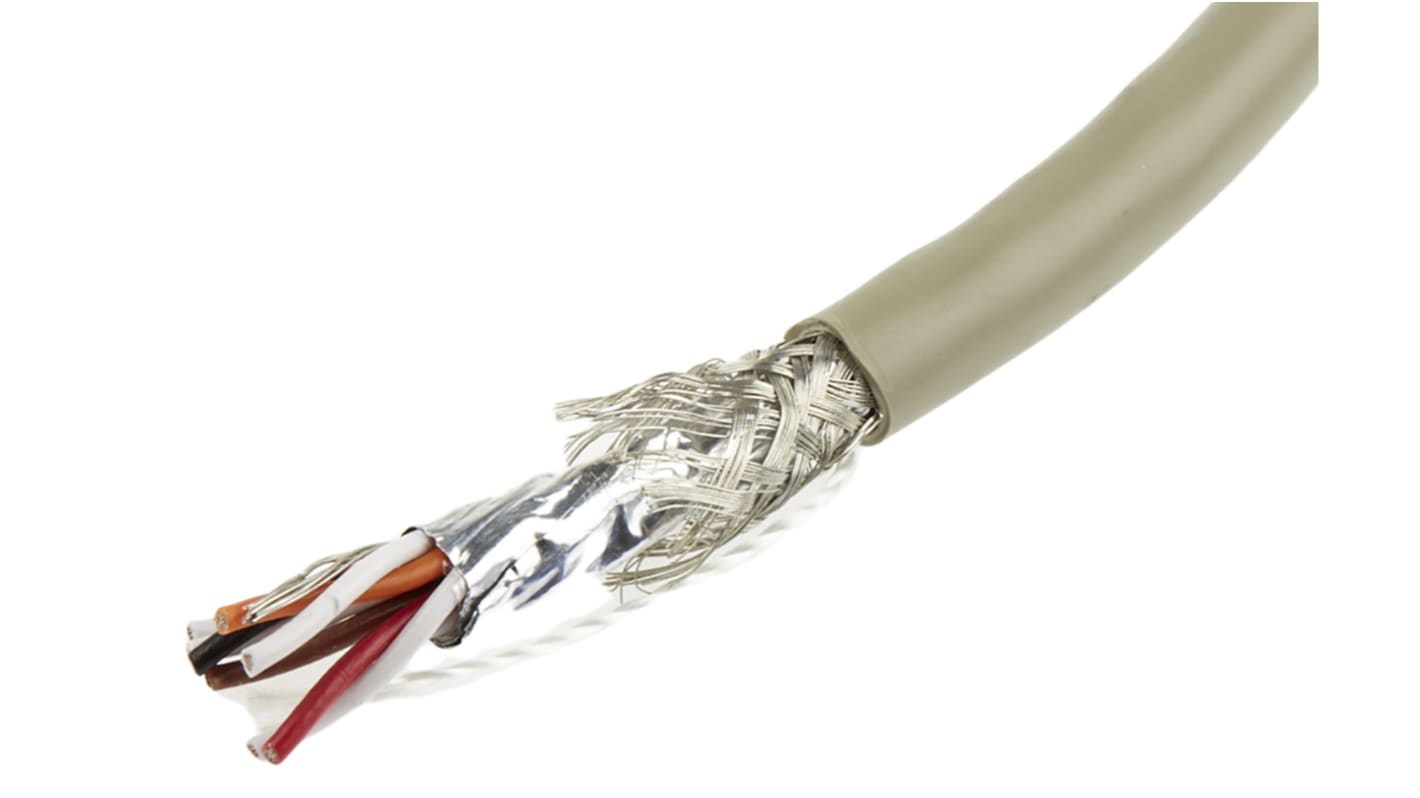

Alpha Wire Twisted Pair Data Cable, 4 Pairs, 0.23 mm², 8 Cores, 24 AWG, Screened, 50m, Grey Sheath

RS Stock No.:: 740-4939
Mfr. Part No.:: B963044 GE321
Brand:: Alpha Wire

Alpha Wire Twisted Pair Data Cable, 4 Pairs, 0.23 mm², 8 Cores, 24 AWG, Screened, 50m, Grey Sheath

6 In Global stock for delivery within 10 working day(s)

Price (ex. GST) 1 Reel of 50 Metre(s)

$477.18

(exc. GST)

$524.90

(inc. GST)

Reel(s)	Per Reel	Per Metre*
1 +	$477.18	$9.544

*price indicative

RS Stock No.:: 740-4939
Mfr. Part No.:: B963044 GE321
Brand:: Alpha Wire

Technical data sheets

Legislation and Compliance

Product Details

Alpha Wire Pro-Tekt European Cable System

The Pro-Tekt series of multicore cables from Alpha Wire have been designed specifically for the European marketplace. When cable failure is not an option, the Pro-Tekt range of cables offer rugged, reliable performance in demanding industrial applications. The Pro-Tekt cable range is available with or without shielding and includes foil, braiding or both. Pro-Tekt cables feature a unique, premium-grade PVC jacket and insulation that makes routing of the cable easier in small, tight spaces.

Features and Benefits

Foil shielding, braid shielding, foil/braid shielding and unshielded
300 V
Wide temperature range
Stranded tinned copper
PVC insulation
Durable

Product Application Information

The Pro-Tekt range of cables can be used in many applications within industrial process controls, point of sale equipment, computer peripherals and medical electronics.

What is UL?

The UL standard (Underwriters Laboratories) is a recognised certificate that requires the rigorous testing of product samples to determine whether the product meets specific, defined requirements. These requirements are often based on UL's published and nationally recognised Standards for Safety.

Pro-Tekt 300 V Foil/Braid, Multipair

Pairs: 4, White + Black, White + Brown, White + Red, White + Orange
Nominal Diameter: 0.270 inch (6.86 mm)
Jacket Thickness: 0.032 inch (0.81 mm)
Stranding: 7/32
Insulation Thickness: 0.010 (0.25 mm)
24 AWG (0.23 mm²)
Jacket Colour: Grey

Specifications

Attribute	Value
Number of Pairs	4
Cross Sectional Area	0.23 mm²
Number of Cores	8
American Wire Gauge	24 AWG
Screened/Unscreened	Screened
Length	50m
Shield Type	Foil and Braid
Sheath Colour	Grey
Outer Diameter	6.86mm
Outer Sheath Material	PVC
Cable Shape	Twisted Pair
Characteristic Impedance	76 Ω
Core Strands	7/32 AWG
Series	ProTekt
Standards Met	CE, CSA Certified, UL
Fire Behaviour	Flame Retardant
Voltage Rating	300 V
