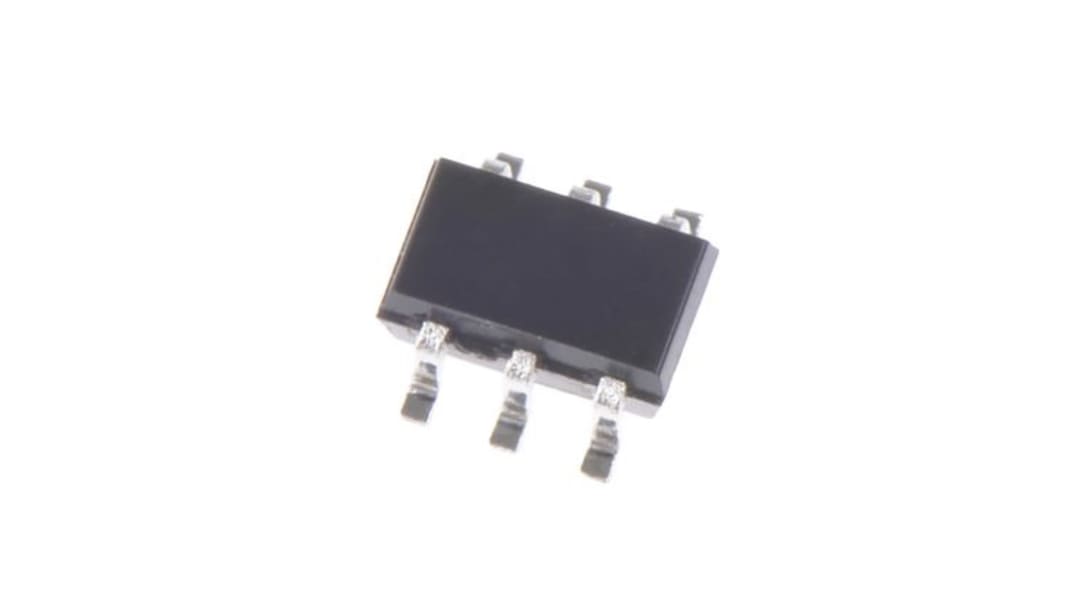

ON Semiconductor SMF05CT2G, Quint-Element Uni-Directional ESD Protection Array, 100W, 6-Pin SC-88
- RS Stock No.:
- 186-9133
- Mfr. Part No.:
- SMF05CT2G
- Brand:
- onsemi
On back order for despatch 06/08/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 3000)
$0.198
(exc. GST)
$0.218
(inc. GST)
| Units | Per unit | Per Reel* |
| 3000 - 3000 | $0.198 | $594.00 |
| 6000 - 9000 | $0.195 | $585.00 |
| 12000 + | $0.19 | $570.00 |
| *price indicative | ||
- RS Stock No.:
- 186-9133
- Mfr. Part No.:
- SMF05CT2G
- Brand:
- onsemi
Technical data sheets
Legislation and Compliance
Product Details
This 5-line surge suppressor array is designed for application requiring ESD and surge protection capability. It is intended for use in over-transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics, networking communication and other applications. This device features a monolithic common cathode design which protects five independent lines in a single SC-88 package.
Protects up to 5 Lines in a Single SC-88 Package
Peak Power Dissipation - 100W (8x20 μ Waveform)
PPAP capable
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
Applications
Hand Held Portable Applications
Networking and Telecom
Automotive Electronics
Serial and Parallel Ports
Notebooks, Desktops, and Servers
Peak Power Dissipation - 100W (8x20 μ Waveform)
PPAP capable
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
Applications
Hand Held Portable Applications
Networking and Telecom
Automotive Electronics
Serial and Parallel Ports
Notebooks, Desktops, and Servers
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 12.5V |
| Minimum Breakdown Voltage | 6.2V |
| Mounting Type | Surface Mount |
| Package Type | SC-88 |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 100W |
| Maximum Peak Pulse Current | 8A |
| ESD Protection | Yes |
| Number of Elements per Chip | 5 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 2.2 x 1.35 x 1mm |
| Width | 1.35mm |
| Test Current | 1mA |
| Height | 1mm |
| Maximum Reverse Leakage Current | 5µA |
| Capacitance | 130pF |
| Automotive Standard | AEC-Q101 |
| Working Voltage | 5V |
| Length | 2.2mm |
