onsemi SMS24CT1G 5-Element Uni-Directional ESD Protection Array, 350 W, 6-Pin TSOP
- RS Stock No.:
- 186-9646
- Mfr. Part No.:
- SMS24CT1G
- Brand:
- onsemi

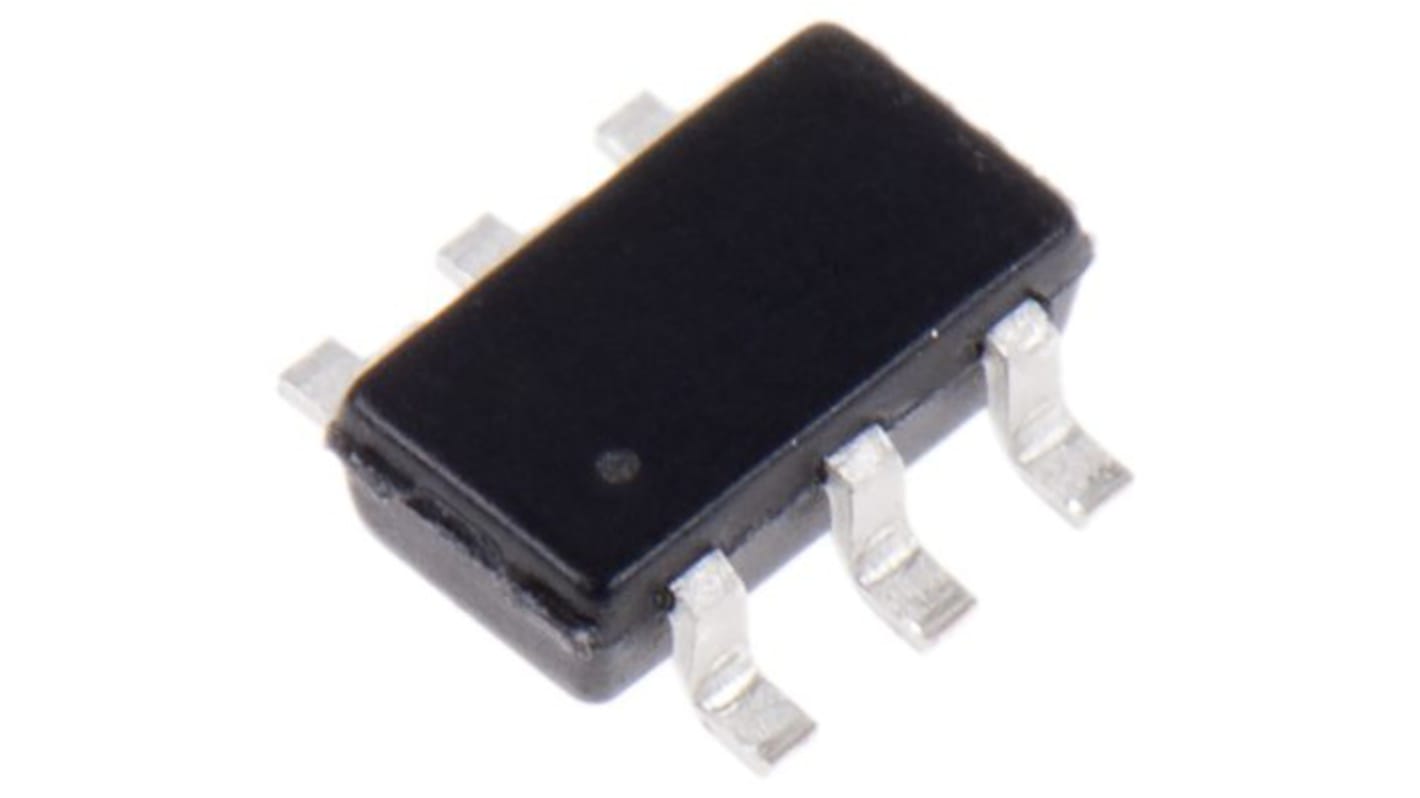

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 25 units)*
$12.20
(exc. GST)
$13.425
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 1,300 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 725 | $0.488 | $12.20 |
| 750 - 1475 | $0.483 | $12.08 |
| 1500 + | $0.468 | $11.70 |
*price indicative
- RS Stock No.:
- 186-9646
- Mfr. Part No.:
- SMS24CT1G
- Brand:
- onsemi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Diode Configuration | Array | |
| Product Type | ESD Protection Array | |
| Direction Type | Uni-Directional | |
| Minimum Breakdown Voltage Vbr | 26.7V | |
| Mount Type | Surface | |
| Package Type | TSOP | |
| Maximum Reverse Stand-off Voltage Vwm | 5V | |
| Pin Count | 6 | |
| Peak Pulse Power Dissipation Pppm | 350W | |
| ESD Protection | Yes | |
| Maximum Peak Pulse Current Ippm | 24A | |
| Test Current It | 1mA | |
| Minimum Operating Temperature | -40°C | |
| Clamping Voltage VC | 44V | |
| Maximum Operating Temperature | 125°C | |
| Number of Elements per Chip | 5 | |
| Height | 1mm | |
| Standards/Approvals | No | |
| Length | 3.1mm | |
| Automotive Standard | AEC-Q101 | |
| Maximum Reverse Leakage Current | 5μA | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Diode Configuration Array | ||
Product Type ESD Protection Array | ||
Direction Type Uni-Directional | ||
Minimum Breakdown Voltage Vbr 26.7V | ||
Mount Type Surface | ||
Package Type TSOP | ||
Maximum Reverse Stand-off Voltage Vwm 5V | ||
Pin Count 6 | ||
Peak Pulse Power Dissipation Pppm 350W | ||
ESD Protection Yes | ||
Maximum Peak Pulse Current Ippm 24A | ||
Test Current It 1mA | ||
Minimum Operating Temperature -40°C | ||
Clamping Voltage VC 44V | ||
Maximum Operating Temperature 125°C | ||
Number of Elements per Chip 5 | ||
Height 1mm | ||
Standards/Approvals No | ||
Length 3.1mm | ||
Automotive Standard AEC-Q101 | ||
Maximum Reverse Leakage Current 5μA | ||
This 5-line voltage surge array is designed for application requiring ESD and surge protection capability. It is intended for use in over-transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics, networking communication and other applications. This device features a monolithic common cathode design which protects five independent lines in a single SC-74 package.
Protects up to 5 line in a single SC-74 package
Peak Power Dissipation - 350 W (8 X20 s Waveform)
Applications
Hand Held portable applications
Networking and Telecom
Automotive electronics
Serial and Parallel ports
Notebooks, Desktops, Servers
