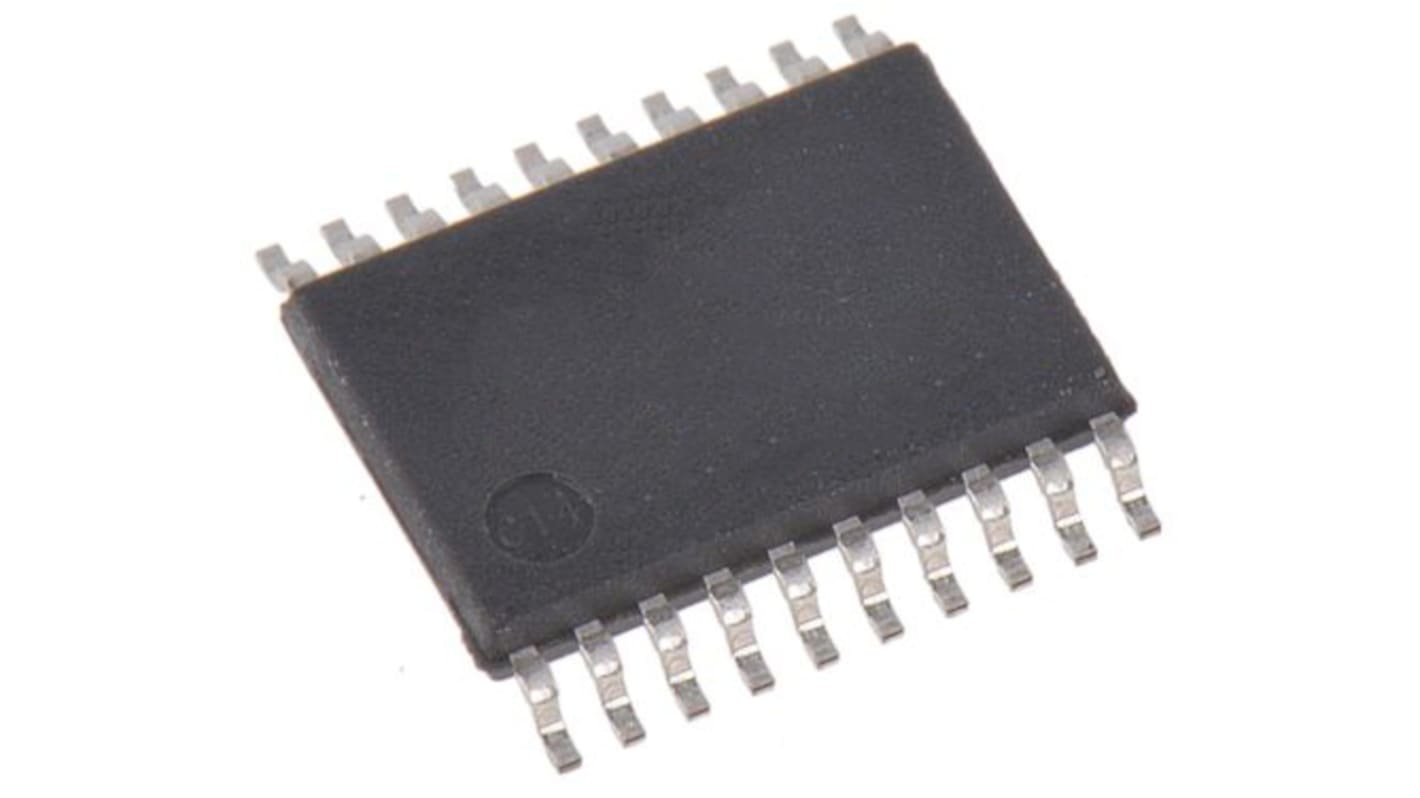

onsemi 74LCX245MTCX, Voltage Level Shifter 1 Bi-Directional, 20-Pin TSSOP
- RS Stock No.:
- 186-7245
- Mfr. Part No.:
- 74LCX245MTCX
- Brand:
- onsemi
Bulk discount available
Subtotal (1 reel of 2500 units)**
$1,570.00
(exc. GST)
$1,727.50
(inc. GST)
On back order for despatch 06/09/2025, delivery within 10 working days from despatch date.*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Units | Per unit | Per Reel** |
|---|---|---|
| 2500 - 2500 | $0.628 | $1,570.00 |
| 5000 - 7500 | $0.612 | $1,530.00 |
| 10000 + | $0.602 | $1,505.00 |
**price indicative
- RS Stock No.:
- 186-7245
- Mfr. Part No.:
- 74LCX245MTCX
- Brand:
- onsemi
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Logic Family | LCX | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Number of Elements per Chip | 1 | |
| Pin Count | 20 | |
| Output Type | 3 State | |
| Dimensions | 6.6 x 4.5 x 1.05mm | |
| Maximum Low Level Output Current | 24mA | |
| Maximum High Level Output Current | -24mA | |
| Translation | Bi-Directional | |
| Propagation Delay Test Condition | 50pF | |
| Maximum Propagation Delay Time @ Maximum CL | 8 ns @ 50 pF | |
| Maximum Operating Supply Voltage | 2 to 3.6 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Supply Voltage | 2 V | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Logic Family LCX | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Number of Elements per Chip 1 | ||
Pin Count 20 | ||
Output Type 3 State | ||
Dimensions 6.6 x 4.5 x 1.05mm | ||
Maximum Low Level Output Current 24mA | ||
Maximum High Level Output Current -24mA | ||
Translation Bi-Directional | ||
Propagation Delay Test Condition 50pF | ||
Maximum Propagation Delay Time @ Maximum CL 8 ns @ 50 pF | ||
Maximum Operating Supply Voltage 2 to 3.6 V | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Supply Voltage 2 V | ||
Minimum Operating Temperature -40 °C | ||
