onsemi, Voltage Level Shifter Buffer 1 Low Voltage, 14-Pin TSSOP
- RS Stock No.:
- 186-7249
- Mfr. Part No.:
- 74LVX125MTCX
- Brand:
- onsemi

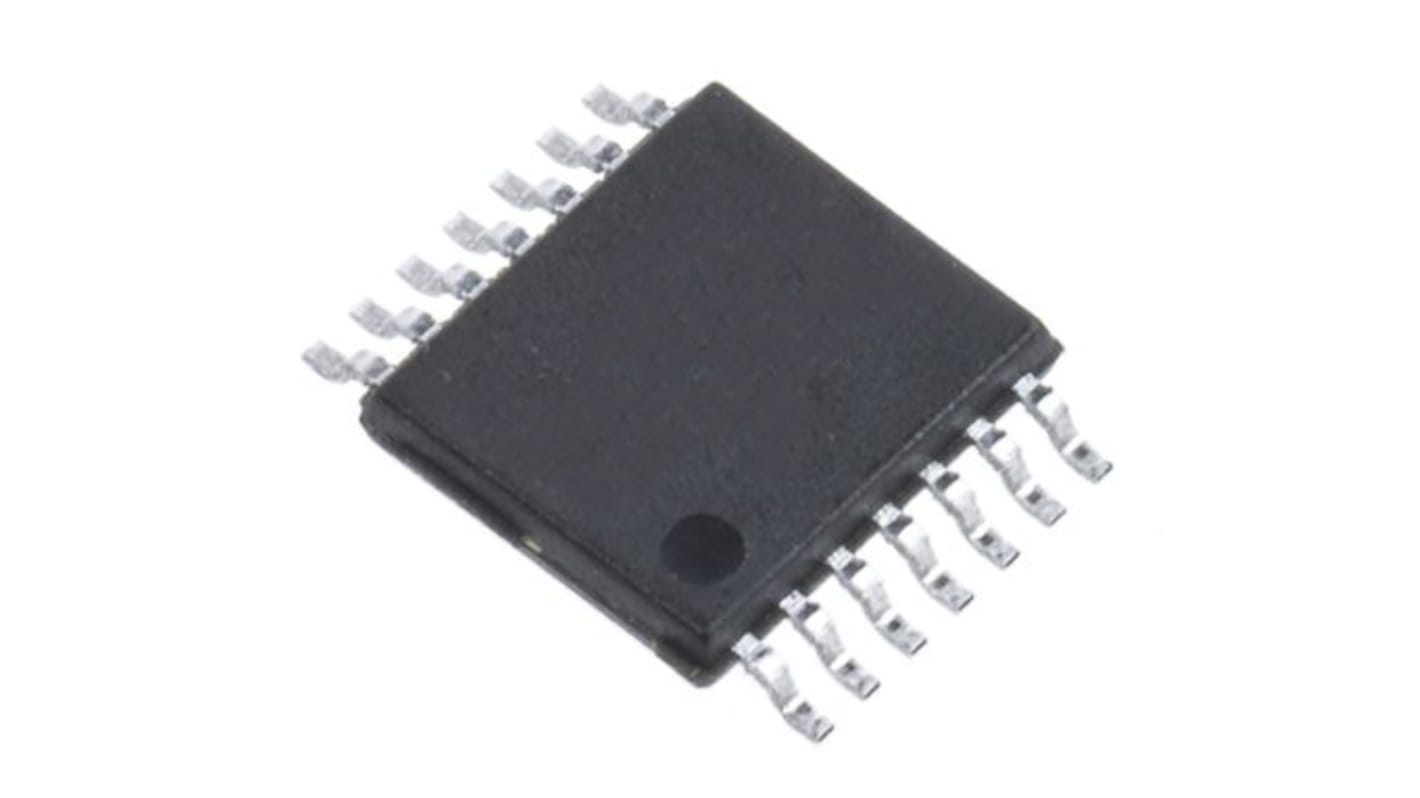

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 2500 units)*
$662.50
(exc. GST)
$730.00
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- Shipping from 14 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 - 2500 | $0.265 | $662.50 |
| 5000 - 7500 | $0.258 | $645.00 |
| 10000 + | $0.254 | $635.00 |
*price indicative
- RS Stock No.:
- 186-7249
- Mfr. Part No.:
- 74LVX125MTCX
- Brand:
- onsemi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Direction Type | Bi-Directional | |
| Product Type | Voltage Level Shifter | |
| Logic Family | LVX | |
| Maximum Propagation Delay Time @ CL | 9ns | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Number of Elements per Chip | 1 | |
| Pin Count | 14 | |
| Output Type | 3 State | |
| Logic Function | Buffer | |
| Maximum Low Level Output Current | 4mA | |
| Maximum High Level Output Current | -4mA | |
| Minimum Supply Voltage | 2V | |
| Maximum Supply Voltage | 3.6V | |
| Translation | Low Voltage | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Length | 5.1mm | |
| Height | 1.05mm | |
| Width | 4.5 mm | |
| Series | 74LVX125 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Direction Type Bi-Directional | ||
Product Type Voltage Level Shifter | ||
Logic Family LVX | ||
Maximum Propagation Delay Time @ CL 9ns | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Number of Elements per Chip 1 | ||
Pin Count 14 | ||
Output Type 3 State | ||
Logic Function Buffer | ||
Maximum Low Level Output Current 4mA | ||
Maximum High Level Output Current -4mA | ||
Minimum Supply Voltage 2V | ||
Maximum Supply Voltage 3.6V | ||
Translation Low Voltage | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Length 5.1mm | ||
Height 1.05mm | ||
Width 4.5 mm | ||
Series 74LVX125 | ||
Automotive Standard No | ||
The LVX125 contains four independent non-inverting buffers with 3-STATE outputs. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems.
Input voltage level translation from 5V to 3V
Ideal for low power/low noise 3.3V applications
Guaranteed simultaneous switching noise level and dynamic threshold performance
Applications
This product is general usage and suitable for many different applications.
