Texas Instruments CD4504BM96, Voltage Level Shifter Voltage Level Shifter CMOS, TTL to CMOS, 16-Pin SOIC

RS Stock No.:: 145-7367
Mfr. Part No.:: CD4504BM96
Brand:: Texas Instruments

Texas Instruments CD4504BM96, Voltage Level Shifter Voltage Level Shifter CMOS, TTL to CMOS, 16-Pin SOIC

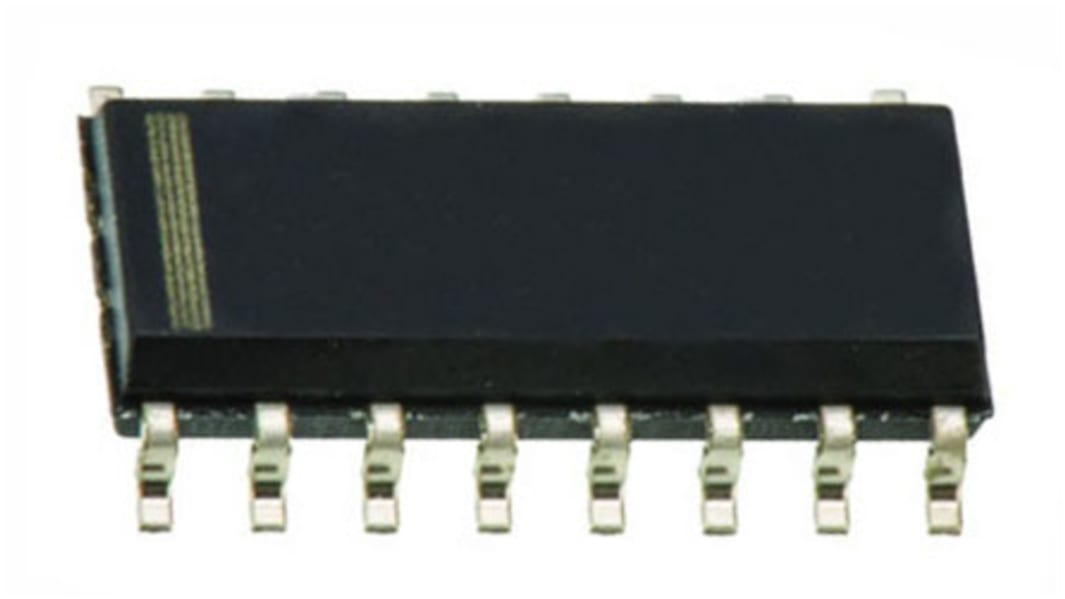

This image is representative of the product range

Available for back order.

Price (ex. GST) Each (On a Reel of 2500)

$0.306

(exc. GST)

$0.337

(inc. GST)

Units	Per unit	Per Reel*
2500 - 2500	$0.306	$765.00
5000 - 7500	$0.298	$745.00
10000 +	$0.294	$735.00

*price indicative

RS Stock No.:: 145-7367
Mfr. Part No.:: CD4504BM96
Brand:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Logic Family	4000
Mounting Type	Surface Mount
Package Type	SOIC
Pin Count	16
Dimensions	9.9 x 3.91 x 1.58mm
Logic Function	Voltage Level Shifter
Maximum Low Level Output Current	4.2mA
Maximum High Level Output Current	-4.2mA
Translation	CMOS, TTL to CMOS
Maximum Propagation Delay Time @ Maximum CL	550 ns @ 15 V
Maximum Operating Supply Voltage	18 V
Maximum Operating Temperature	+125 °C
Minimum Operating Supply Voltage	5 V
Minimum Operating Temperature	-55 °C
